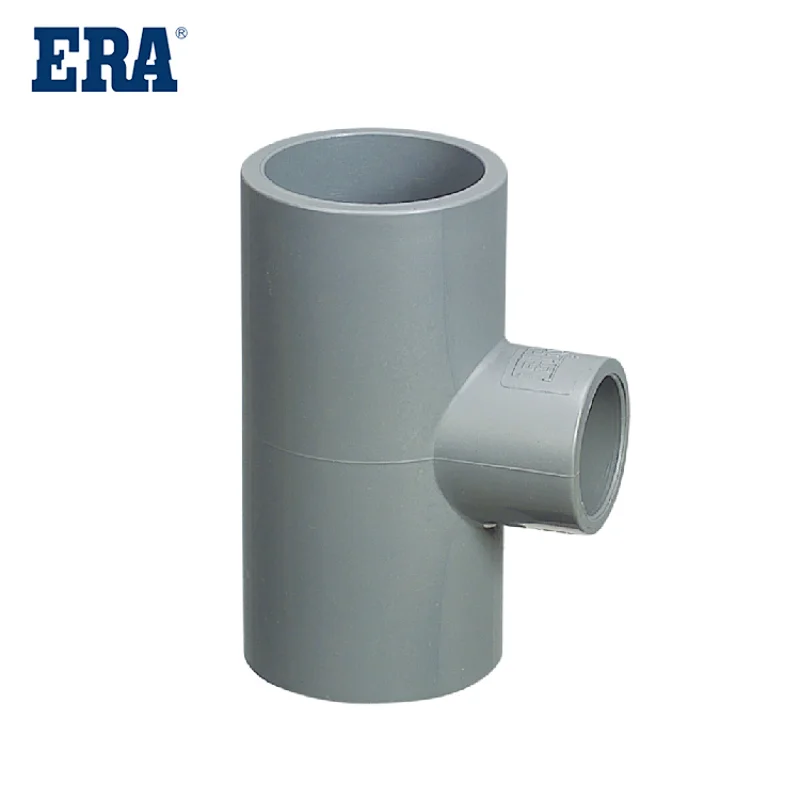

PVC Pipe Fitting Schedule 40 Reducing Tee
PVC Pipe Fitting Schedule 40 Reducing Tee
PVC Pipe Fitting Schedule 40 Reducing Tee
PVC Pipe Fitting Schedule 40 Reducing Tee
PVC Pipe Fitting Schedule 40 Reducing Tee
PVC Pipe Fitting Schedule 40 Reducing Tee
PVC Pipe Fitting Schedule 40 Reducing Tee
PVC Pipe Fitting Schedule 40 Reducing Tee
PVC Pipe Fitting Schedule 40 Reducing Tee
PVC Pipe Fitting Schedule 40 Reducing Tee
PVC Pipe Fitting Schedule 40 Reducing Tee
PVC Pipe Fitting Schedule 40 Reducing Tee
PVC Pipe Fitting Schedule 40 Reducing Tee

PVC Pipe Fitting Schedule 40 Reducing Tee

US4T02
ERA Piping Systems, PVC Pipe Fitting ,Reducing Tee, US4T02, Schedule 40 (ASTM D2466) , NSF-pw & UPC System: The specification covers poly(vinyl chloride) (PVC) Schedule 40 pipe fittings. Included are requirements for materials, workmanship, dimensions, and burst pressure.
Features:
1) It has high hardness, stiffness and allowable stress.
2) It has good anti-aging ability, is durable and has a lifespan of up to 50 years.
3) Corrosion-resistant, cheap, easy to bond and self-extinguishing.
4) Recyclable, easy and simple to install, and good sealing.

ERA Piping Systems, PVC Pipe Fitting ,Reducing Tee, US4T02, Schedule 40 (ASTM D2466) , NSF-pw & UPC

System：The specification covers poly(vinyl chloride) (PVC) Schedule 40 pipe fittings. Included are requirements for materials, workmanship, dimensions, and burst pressure.

Fitting such as unions, flanges, special plastic-to-metal transitions and appurtenances intended for use with PVC piping are covered under specification F1970.

Scope：PVC is highly resistant to acids, alkalis, alcohols, and many other corrosive materials.

The wide range of joining options that include solvent welding, threaded and mechanical connections make it ideal for easy, error free installations.

Specification：Pipe and fittings shall be manufactured from virgin rigid PVC (polyvinyl chloride) vinyl compounds with a cell class of 12454 as identified in ASTM D 1784.

PVC Schedule 40 pipe shall be Iron Pipe Size (IPS) conforming to ASTM D 1785. Injection molded PVC Schedule 40 fittings shall conform to ASTM D 2466. Pipe and fittings shall be manufactured as a system and be the product of one manufacturer.

Model NumberUS4T02MaterialPVC
Description       REDUCING TEEStandardSCH40
TemperatureMax 60°C /140°FWorking Pressure
PN10，10Bar，
1.0Mpa
Size3/4''x1/2''-2''x1 1/2''CertificateNSF UPC
ConnectionsocketColor
white grey black

Main Products：

PVC pipe is a plastic material.

The main component of PVC is polyvinyl chloride, adding other ingredients to improve its temperature resistance, ductility, plasticity of a raw material. The top of these films is lacquer, the middle is mainly polyvinyl chloride, and the bottom layer is backcoated adhesive.

pvc pipe is a plastic material. PVC pipe is made of PVC epoxy resin and thickening agent, lubricant, etc. It is the first plastic pipe to be applied and developed. It is divided into soft PVC and hard PVC. Soft PVC is generally used for wood floor, ceiling and the surface of leather products, while hard PVC has no thickening agent and has better technological performance. It has higher application development and use value.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
