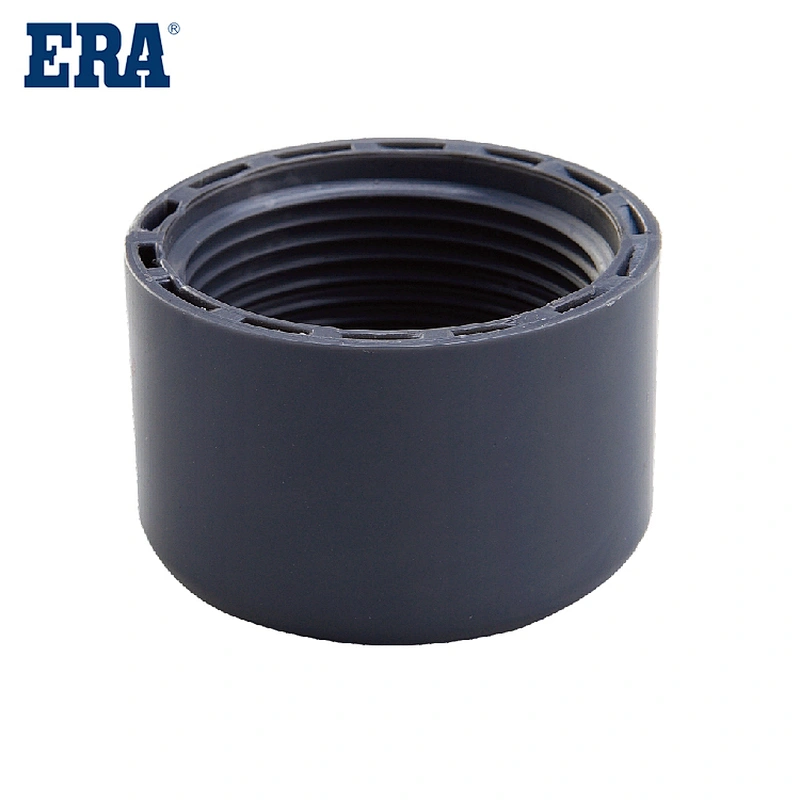

ERA Piping Systems, PVC Pipe Fitting ,FEMALE PLUG, US4F01,Schedule 40 (ASTM D2466) ,Slip, NSF-pw & UPC
System：PVC Schedule 40 Pressure Pipe and Fitting System
PVC Schedule 40 is highly durable, with high tensile and impact strength.
Scope：Never test with or transport/store compressed air or gas in PVC pipe or fittings. Doing so can result in explosive failures and cause severe injury or death.
Polyvinyl chloride (PVC) is one of the most broadly used thermoplastic materials, common to many industries.
Specification：Pipe and fittings shall be manufactured from virgin rigid PVC (polyvinyl chloride) vinyl compounds with a cell class of 12454 as identified in ASTM D 1784.
PVC Schedule 40 pipe shall be Iron Pipe Size (IPS) conforming to ASTM D 1785. Injection molded PVC Schedule 40 fittings shall conform to ASTM D 2466. Pipe and fittings shall be manufactured as a system and be the product of one manufacturer.

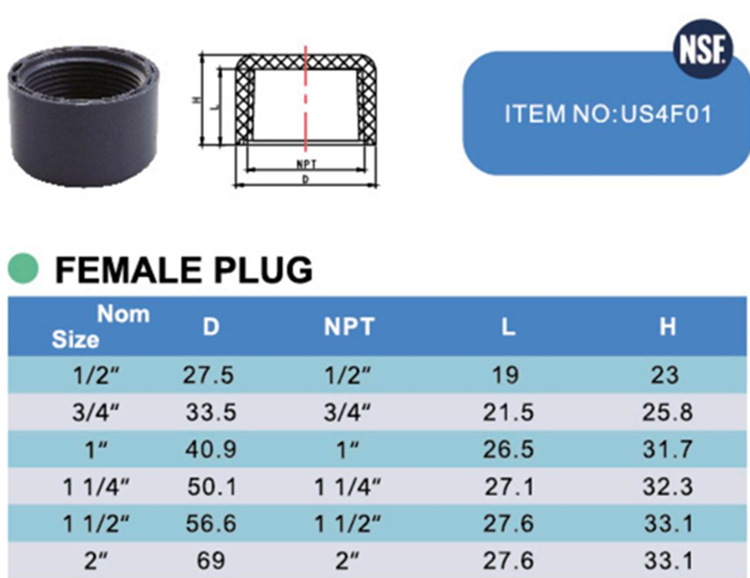

| Model Number | US4F01 | Material | PVC |
| Description | FEMALE PLUG | Standard | SCH40 |
| Temperature | Max 60°C /140°F | Working Pressure | PN10，10Bar， 1.0Mpa |
| Size | 1/2''-2'' | Certificate | NSF UPC |
| Connection | socket or thread | Color | white grey black |
Main Products：
1. PVC pipe fittings can withstand general acidic, alkaline, and salt solutions, but will be corroded by aromatic hydrocarbons, hydrocarbons, ketones, esters and other chemical substances (such substances cannot be transported).
2. When the temperature does not exceed 60°C, PVC pipe fittings can be used to transport fully concentrated hydrochloric acid.
3. Concentrated sulfuric acid not exceeding 90% can be transported with PVC pipe fittings at 60°C, but the transportation temperature of sulfuric acid with a concentration of 90-95% shall not exceed 50°C.
4. Cold nitric acid with a concentration of 50% can be transported, but hot nitric acid will corrode the pipeline.
5. PVC pipe fittings can transport fully concentrated alkali metals below 60°C.
6. Dry chlorine gas can be transported at room temperature, but if the temperature rises or the chlorine gas becomes wet, the pipeline will be corroded.
7. Under normal conditions, PVC pipe fittings can transport oxidants, except under strong oxidizing conditions.
8. Completely concentrated hydrogen peroxide or concentrated solutions under oxidizing conditions can be transported. Oxidized brine concentrates such as potassium permanganate only corrode the surface of the pipe. PVC pipe fittings can transport reagents at temperatures below 60°C.
9. PVC pipe fittings can transport organic liquids and vapors because PVC pipe fittings can resist oil and prevent corrosion and damage to the pipeline.
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
