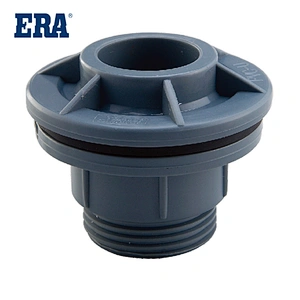

ERA Piping Systems, PVC Pipe Fitting ,Type II,FLANGE COUPLING ,US Ⅱ 014Socket x BSPT, CE Specification: System: Installation requires the use of primer and solvent cement. For pressure applications, sharply angled pressure fittings must be used. Polyvinyl chloride (PVC) is one of the most...nPVC can be divided into soft PVC and hard PVC. Among them, hard PVC accounts for about 2/3 of the market, and soft PVC accounts for 1/3. Soft PVC is generally used for floors, ceilings and the surface of leather. However, because soft PVC contains plasticizers (this is also the difference between soft PVC and hard PVC), its physical properties are poor (for example, water pipes need to withstand a certain water pressure, and soft PVC is not suitable for use), so its scope of use is limited. Rigid PVC does not contain plasticizers, so it is easy to shape and has good physical properties, so it has great development and application value. During the production process of PVC materials, several additives are bound to be added, such as stabilizers, plasticizers, etc. If all environmentally friendly additives are used, then PVC pipes will also be non-toxic, odorless and environmentally friendly products.

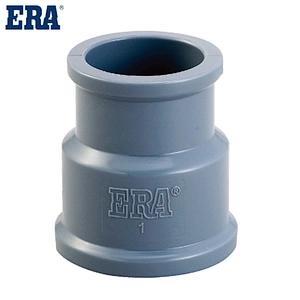

ERA Piping Systems, PVC Pipe Fitting ,Type II,REDUCING COUPLING ,US Ⅱ 012 Socket x BSPT, CE System: PVC-U (Unplasticised polyvinyl chloride) is one of the most popular thermoplastic materials used for pipework installations. Scope: This series of fittings can match the standard NBR 5648.nAdvantages of pipesn1. It has good tensile and compressive strength: but its flexibility is not as good as other plastic pipes.n2. Small fluid resistance: The pipe wall of PVC-U pipe is very smooth and has very little resistance to fluid. Its roughness coefficient is only 0.009. Its water transport capacity can be increased by 20% compared with cast iron pipes of the same diameter and 40% increased compared with concrete pipes.

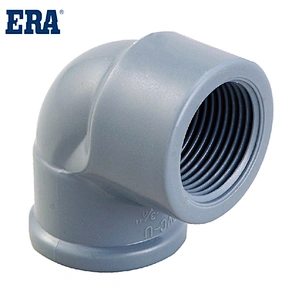

ERA Piping Systems, PVC Pipe Fitting ,Type II,FEMALE ELBOW ,US Ⅱ 010 Socket x BSPT, CE Specification: System: PVC-U (Unplasticised polyvinyl chloride) is one of the most popular thermoplastic materials used for pipework installations.nPVC-U pipes have strong corrosion resistance, are easy to bond, are low-priced, and are hard in texture. However, due to the leakage of PVC-U monomer and additives, they are only suitable for water supply systems with a delivery temperature not exceeding 45°C. Plastic pipes are used in applications such as drainage, wastewater, chemicals, heating and cooling fluids, food, ultrapure liquids, slurries, gases, compressed air and vacuum systems.

ERA Piping Systems, PVC Pipe Fitting ,Type II, REDUCING RING ,US Ⅱ 008 Socket x BSPT, CE Specification: System: Polyvinyl chloride (PVC) is one of the most broadly used thermoplastic materials, common to many industries. PVC is suitable for use at temperatures from 0 º C to 60 º C.nPVC pipes have been highly praised by the engineering community for their light weight, corrosion resistance, high pressure strength, safety and convenience. In recent years, driven by the rapid development of the domestic economy, my country's PVC pipes have developed very rapidly.

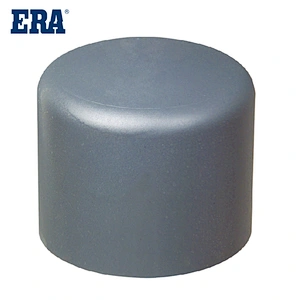

ERA Piping Systems, PVC Pipe Fitting ,Type II,END PLUG ,US Ⅱ 011 Socket x BSPT, CE Specification: System: Installation requires the use of primer and solvent cement. For pressure applications, sharply angled pressure fittings must be used. PVC is suitable for use at temperatures from 0 º C to 60°.nExcellent corrosion resistance and chemical resistance: PVC-U pipes have excellent acid resistance, alkali resistance, corrosion resistance, and are not affected by moisture and soil pH. No anti-corrosion treatment is required when laying pipes.nGood water tightness: The installation of PVC-U pipes, regardless of whether they are connected by bonding or rubber rings, has good water tightness.

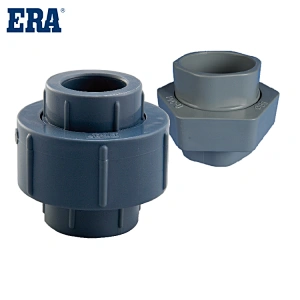

ERA Piping Systems, PVC Pipe Fitting ,Type II,UNION TYPE Ⅲ ,US Ⅱ 009 Socket x BSPT, CE Specification: System: PVC is suitable for use at temperatures from 0 º C to 60 º C at a wide range of operating pressures, depending upon the system chosen. It is lightweight and easy to install, using cold...nPVC pipe product performance characteristicsn1. Light weight, easy to transport and load and unload: PVC pipes are very light, easy to transport and construct, and can save labor.n2. Excellent chemical resistance: PVC pipe has excellent acid resistance, alkali resistance, and corrosion resistance, and is very suitable for use in the chemical industry.n3. Small fluid resistance: The wall surface of PVC pipe is smooth and has small resistance to fluid. Its roughness coefficient is only 0.009, which is lower than other pipes. Under the same flow rate, the pipe diameter can be reduced.

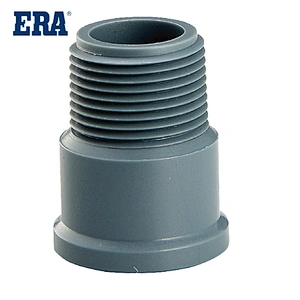

ERA Piping Systems, PVC Pipe Fitting ,Type II, MALE ADAPTOR,US Ⅱ 007 Socket x BSPT, CE Specification: System: PVC NBR 5648 Pressure Pipe and Fitting System Polyvinyl chloride (PVC) is one of the most broadly used thermoplastic materials, common to many industries. Scope: This series of fittings...nWhat should I pay attention to during the installation process?n1. In order to ensure the safety and cleanliness of PVC pipes, brackets should be used to place the pipes on them. This can ensure that the pipes are not left lying around and are not trampled by people. The pipes can also be used cleanly and can also prevent silt residues in the pipes;n2. Before installation, the layout of the construction pipeline should be checked clearly. It should not only be neat, but also have a solid structure and whether it is smooth;n3. During installation, the pipe should be handled with care to avoid damage during transportation, and pay attention to stones or silt staying in the pipe;n4. After the installation is completed, we need to perform a pressure test for a period of time. During the test again, we must check that there is no leakage at each interface. If found, replace it immediately.

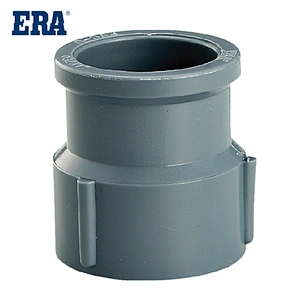

ERA Piping Systems, PVC Pipe Fitting ,Type II, Female Adaptor, Socket x BSPT, CE Specification: System: PVC-U (Unplasticised polyvinyl chloride) is one of the most popular thermoplastic materials used for pipework installations. Scope: PVC-U allows the safe transportation of many acids, alkalis...nDoes not affect water quality (hygienic and non-toxic): The raw material is completely composed of carbon and hydrogen, without adding any toxic heavy metal salt stabilizers. The hygienic properties of the raw material have been tested by national authorities, which is the best for today's water quality. The best pipe material for stage tap water piping.

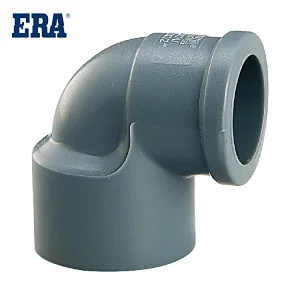

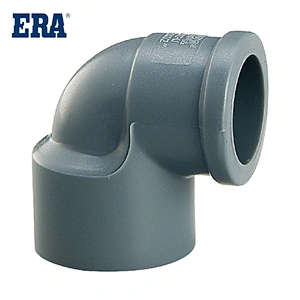

ERA Piping Systems, PVC Pipe Fitting ,Type II, REDUCING ELBOW ,US Ⅱ 004 ， Slip, CE Specification: System: Polyvinyl chloride (PVC) is one of the most broadly used thermoplastic materials, common to many industries. Scope: PVC fittings Solvent cement Manifold fittings.nPVC pipe featuresn (1). The surface hardness and tensile strength of the pipe are excellent, and the pipeline safety factor is high.n (2). It has good aging resistance and its normal service life can reach more than 50 years.n (3). The pipeline has excellent corrosion resistance to inorganic acids, alkalis, and salts, and is suitable for industrial sewage discharge and transportation.

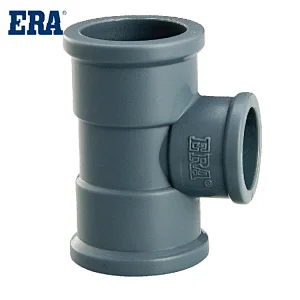

ERA Piping Systems, PVC Pipe Fitting ,Type II, REDUCING TEE,US Ⅱ 002 ， Slip, CE Specification: System: Installation requires the use of primer and solvent cement. For pressure applications, sharply angled pressure fittings must be used.nSome of the most important properties of PVC are:n• Density. PVC is dense compared to other plastics.n• low cost. PVC is readily available and inexpensive.n• Rigidity. Rigid PVC ranks among the best in terms of stiffness and durability.n• strength. Rigid PVC has excellent tensile strength, which means it takes a lot of force to stretch and break.

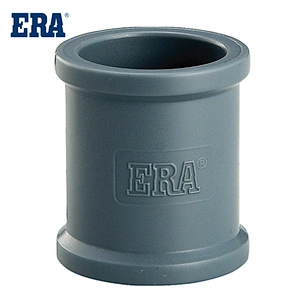

ERA Piping Systems, PVC Pipe Fitting ,Type II, COUPLING ,US Ⅱ 005 ， Slip, CE Specification: System: Installation requires the use of primer and solvent cement. For pressure applications, sharply angled pressure fittings must be used. Scope: The wide range of joining options that include solvent...nHigh pressure resistance and corrosion resistance. Due to its material characteristics, PVC pipes have strong pressure resistance, can prevent corrosion by acidic and alkaline substances, and have good waterproof properties.

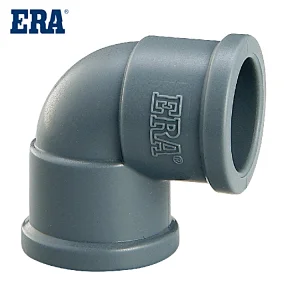

ERA Piping Systems, PVC Pipe Fitting ,Type II, 90 ° ELBOW,US Ⅱ 003 ， Slip, CE Specification: System: Polyvinyl chloride (PVC) is one of the most broadly used thermoplastic materials, common to many industries. PVC is highly resistant to acids, alkalis, alcoholsnPVC pipe featuresn1. The friction coefficient of the pipeline is small, the water flow is smooth, it is not easy to block, and the maintenance workload is small.n2. The material has a high oxygen index and is self-extinguishing.

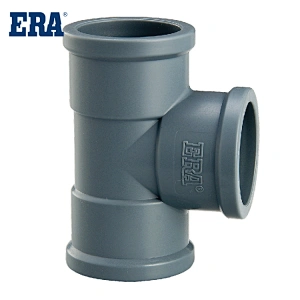

ERA Piping Systems, PVC Pipe Fitting ,Type II, Tee, Slip, CE Specification: System: PVC NBR 5648 Pressure Pipe and Fitting System Scope: This series of fittings can match the standard NBR 5648.n(1) The surface hardness and tensile strength of the pipe are excellent, and the pipeline safety factor is high.n(2) It has good aging resistance and its normal service life can reach more than 50 years.n(3) The pipeline has excellent corrosion resistance to inorganic acids, alkalis, and salts, and is suitable for industrial sewage discharge and transportation.
