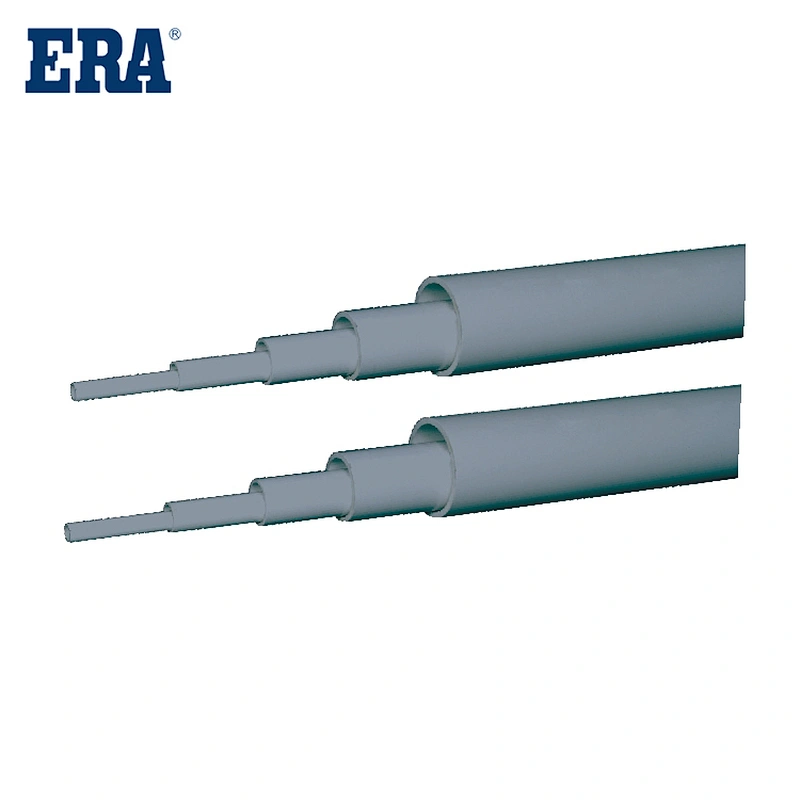

PVC high pressure SCH40 pipe light type
PVC high pressure SCH40 pipe light type
PVC high pressure SCH40 pipe light type
PVC high pressure SCH40 pipe light type
PVC high pressure SCH40 pipe light type
PVC high pressure SCH40 pipe light type
PVC high pressure SCH40 pipe light type
PVC high pressure SCH40 pipe light type
PVC high pressure SCH40 pipe light type
PVC high pressure SCH40 pipe light type
PVC high pressure SCH40 pipe light type
PVC high pressure SCH40 pipe light type
PVC high pressure SCH40 pipe light type

PVC high pressure SCH40 pipe light type

US4001
ERA Piping Systems, PVC Pipe Fitting ,Pressure Pipes, US4001, Schedule 40 (ASTM D2466) , NSF-pw & UPC System: The specification covers poly(vinyl chloride) (PVC) Schedule 40 pipe fittings. Included are requirements for materials, workmanship, dimensions, and burst pressure.PVC pipe product performance characteristics
1. Light weight, easy to transport and load and unload: PVC pipes are very light, easy to transport and construct, and can save labor.
2. Excellent chemical resistance: PVC pipe has excellent acid resistance, alkali resistance, and corrosion resistance, and is very suitable for use in the chemical industry.
3. Small fluid resistance: The wall surface of PVC pipe is smooth and has small resistance to fluid. Its roughness coefficient is only 0.009, which is lower than other pipes. Under the same flow rate, the pipe diameter can be reduced.
4. High mechanical strength: PVC pipes have very good water pressure resistance, external pressure resistance, impact resistance, etc., and are suitable for piping projects under various conditions.
5. Good electrical insulation; PVC pipes have excellent electrical insulation and are suitable for wires, cable conduits, and wire piping in buildings.
6. Does not affect water quality: PVC pipes have been proven by dissolution tests to not affect water quality and are currently the best pipe materials for tap water piping.
7. Simple construction; the joint construction of PVC pipes is quick and easy.
​

ERA Piping Systems, PVC Pipe Fitting ,Pressure Pipes, US4001, Schedule 40 (ASTM D2466) , NSF-pw & UPC

Specification：

PVC Schedule 40 pipe shall be Iron Pipe Size (IPS) conforming to ASTM D 1785. Injection molded PVC Schedule 40 fittings shall conform to ASTM D 2466. Pipe and fittings shall be manufactured as a system and be the product of one manufacturer.

Solvent cement joints shall be made in a two-step process with primer manufactured for

thermoplastic piping systems and solvent cement conforming to ASTM D 2564.

Referenced Standards：ASTM D 2466 /  PVC Plastic Fittings,Schedule 40

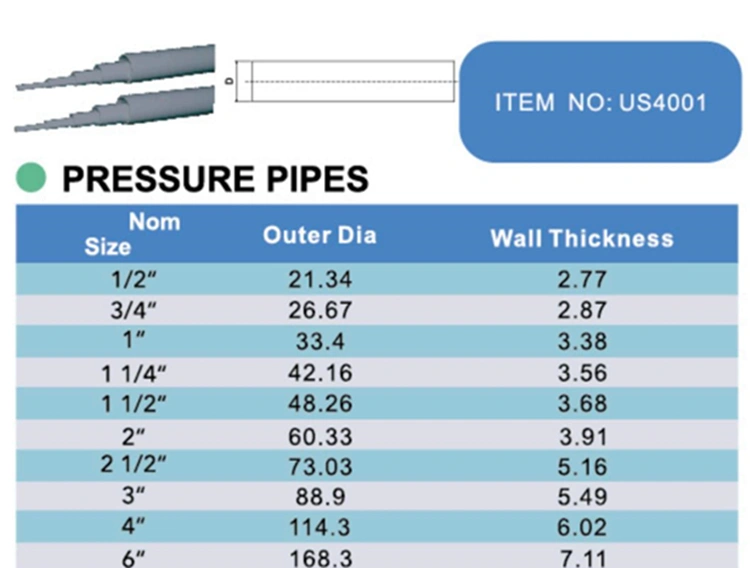

Model NumberUS4001MaterialPVC
Description       PRESSURE PIPESStandardSCH40
TemperatureMax 60°C /140°FWorking Pressure
PN10，10Bar，
1.0Mpa
Size1/2''-6''CertificateNSF UPC
Connectionsocket or threadColor
white grey black
SCH40 pipe light type

System：

The specification covers poly(vinyl chloride) (PVC) Schedule 40 pipe fittings. Included are requirements for materials, workmanship, dimensions, and burst pressure.

Fitting such as unions, flanges, special plastic-to-metal transitions and appurtenances intended for use with PVC piping are covered under specification F1970.

Scope：

This specification covers PVC Schedule 40 pipe and solvent Cement fittings for pressure applications.This system is Intended for pressure applications where the operating temperature will not exceed 140°F.

The products covered by this specification are intended for use with the distribution of pressurized liquids only, which are chemically compatible with the piping materials.

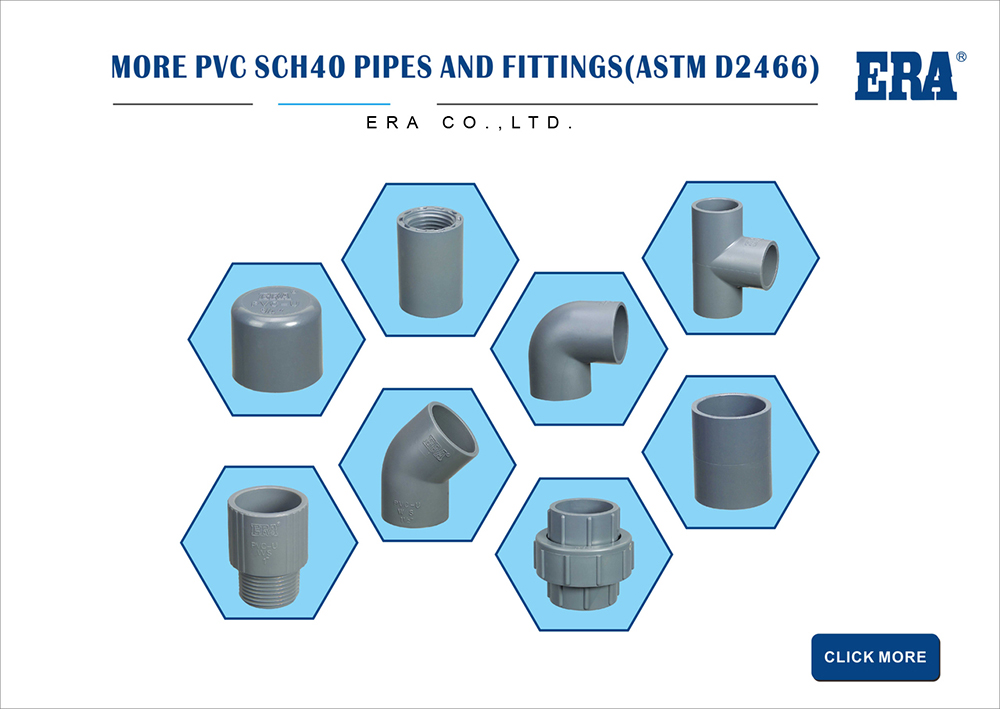

Main Products：
Pressure Pipes

PVC material is polyvinyl chloride, is one of the world's larger output of plastic products, cheap price, widely used, PVC material has the characteristics of light weight, heat insulation, moisture, moisture, flame retardant, easy construction, specifications and color pattern style, very rich decorative effect, generally PVC water pipes, PVC plastic doors and Windows and plastic toys containing PVC.

PVC pipe is divided into PVC-U pipe and UPVC, PVC-U pipe is mainly used for building drainage, light and durable, beautiful color, bright smooth, long service life; uPVC pipe is not good for freezing and heat resistance, but good dryness resistance, strong corrosion resistance, high mechanical strength, non-toxic health, suitable for electric wires and pipes and sewage pipes.

Advantage:
Corrosion resistance, suitable for industrial chemical corrosion-resistant equipment parts; easy to process, easy to weld and bend; good electrical insulation, suitable for wires and cables, self-extinguishing, low water absorption, adaptable to humid working environments; and Adhesive, easy to paint; plastic material, low price, recyclable, in line with social development.
application:
PVC hard plastic board has excellent corrosion resistance, insulation, and certain mechanical strength; after secondary processing, it can be made into hydrochloric acid barrels; chemical process racks; public toilet water tanks; templates, decorative panels, and drains for processed products Various special-shaped products and containers such as air ducts and equipment linings. Seawater concentration tank, electroplating tank, electric meter panel, cement tank lining, various electrical insulation boards, exhaust air duct engineering. It is an ideal material for chemical industry, building materials, decoration and other industries.

FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.

2.What is your delievery time?
The time of delievery is around 30-45days.

3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
Related Products
PVC Pipe Fitting Schedule 40 Coupling

PVC Pipe Fitting Schedule 40 Coupling

ERA Piping Systems, PVC Pipe Fitting ,Coupling, US4003, Schedule 40 (ASTM D2466) ,Slip, NSF-pw & UPC System: PVC Schedule 40 Pressure Pipe and Fitting System PVC Schedule 40 is highly durable, with high tensile and impact strength. Scope: Never test with or transport/store compressed air PVC pipe product performance characteristics 1. Light weight, easy to transport and load and unload: PVC pipes are very light, easy to transport and construct, and can save labor. 2. Excellent chemical resistance: PVC pipe has excellent acid resistance, alkali resistance, and corrosion resistance, and is very suitable for use in the chemical industry. 3. Small fluid resistance: The wall surface of PVC pipe is smooth and has small resistance to fluid. Its roughness coefficient is only 0.009, which is lower than other pipes. Under the same flow rate, the pipe diameter can be reduced.
PVC Pipe Fitting Schedule 40 Reducing Tee

PVC Pipe Fitting Schedule 40 Reducing Tee

ERA Piping Systems, PVC Pipe Fitting ,Reducing Tee, US4T02, Schedule 40 (ASTM D2466) , NSF-pw & UPC System: The specification covers poly(vinyl chloride) (PVC) Schedule 40 pipe fittings. Included are requirements for materials, workmanship, dimensions, and burst pressure. Features: 1) It has high hardness, stiffness and allowable stress. 2) It has good anti-aging ability, is durable and has a lifespan of up to 50 years. 3) Corrosion-resistant, cheap, easy to bond and self-extinguishing. 4) Recyclable, easy and simple to install, and good sealing.
PVC Pipe Fitting SCH 40 45° Elbow

PVC Pipe Fitting SCH 40 45° Elbow

ERA Piping Systems, PVC Pipe Fitting ,45°Elbow, US4E01, Schedule 40 (ASTM D2466) , NSF-pw & UPC System: PVC Schedule 40 is highly durable, with high tensile and impact strength. Scope: The products covered by this specification are intended for use with the distribution of pressurized... Its main performance features include: 1. Good heat resistance: It has good heat resistance and can be used in high temperature environments, such as chemical plants, refineries and other fields. 2. Strong corrosion resistance: It has excellent corrosion resistance and can be used in acid, alkali, salt and other chemical environments. 3. High strength: It has high strength and can withstand large pressure and tensile force. It is suitable for occasions that bear pressure. 4. Good environmental performance: It uses recyclable materials and has good environmental performance, which is beneficial to protecting the environment. 5. Easy to install: It is light in weight and easy to install, which can save manpower and time. 6. Moderate price: The price is relatively moderate compared to other industrial pipes and has certain market competitiveness.

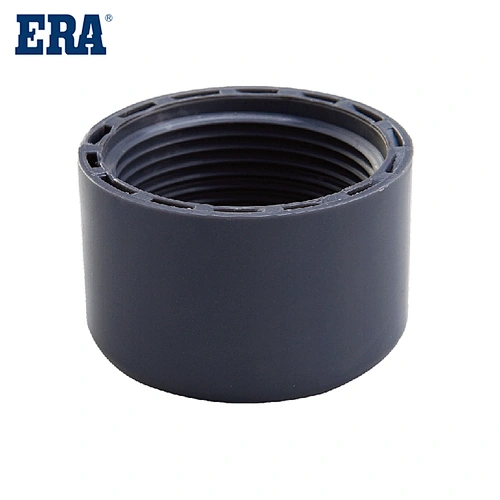

FEMALE PLUG
