USV01
ERA factory direct by ball structure Best-selling white pvc check valve
Advantages of PVC valves
1. PVC valves adopt advanced technology, advanced production technology and high degree of automation.
2. It is easy to install and has the performance and advantages of no leakage, maintainability, corrosion resistance, acid and alkali resistance, high pressure resistance, long life, etc. It can effectively save costs while ensuring the quality of use;
3. Due to the advantages of PVC valves such as light weight, corrosion resistance, no adsorption of scale, integration with plastic pipelines, and long service life, PVC valves are widely used in plastic pipeline systems for water supply and other industrial fluids. The application advantages are unmatched by other valves;
4. It has been widely used in water supply and drainage pipeline systems in industry, agriculture, civil construction, aquaculture, water treatment, ships and other fields.

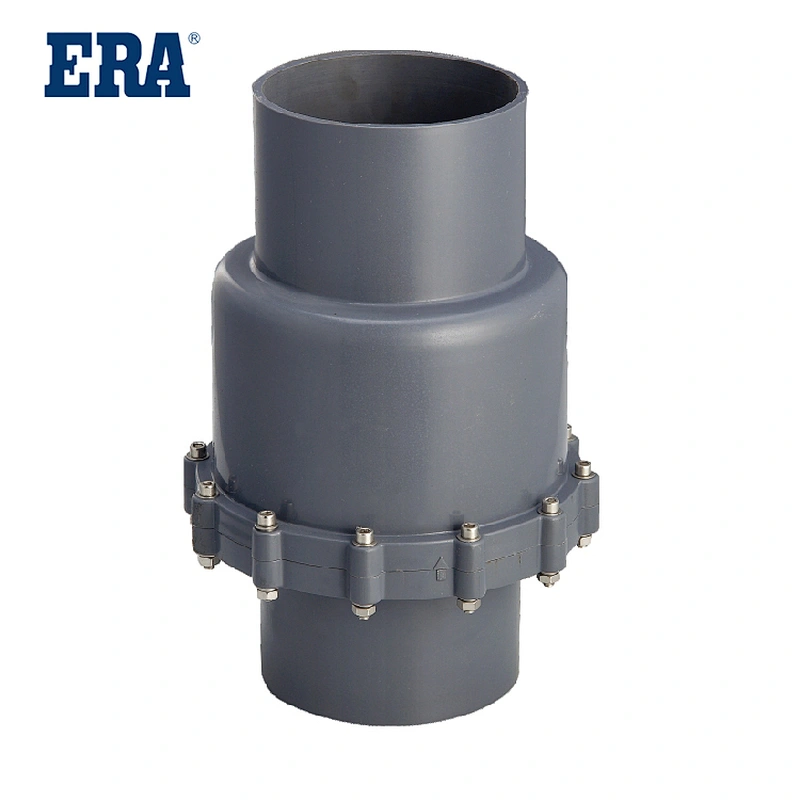

ERA Valves, Swing Check Valve , USV01 , PN10 (F1970), NSF-pw & UPC

Specification：
This allows you to repair or replace the carrier without completely disassembling the system, saving time and money.
Our true union ball valves are made from durable dark gray PVC and have an easy-to-grip red handle that turns with minimal effort.
Compact PVC ball valve is our most economic ball valve solution. Offered in socket weld and threaded (NPT)
CPVC valves shall conform to ISO 4422-4. ASTM  F1970-05. CPVC valves shall be manufactured as a system and be the product of one manufacturer.
Excellent flow characteristics. Seats: PTFE. Seals: EPDM. Suitable for hot water systems.
Large port allows maximum flow and minimum pressure drop or turbulence. Suitable for hot or cold water systems.

Scope：
Our PVC ball valves are not only durably and made from a heavy duty material - but also a very affordable and economic option to your project or service need.
These  valves are ideal for the following applications:  water parks, fountains, aquariums, light-duty chemical and waste water.
This system is intended for pressure applications where the operating temperature will not exceed 140°F, and work pressure is 1.0 MPa (PN10)

Specification：
PVC valves shall conform to ISO 9393-1:2004. PVC valves shall be manufactured as a system and be the product of one manufacturer.

Model NumberUSV01MaterialPVC
DescriptionSWING CHWCK VALVEStandardF1970
TemperatureMax 82.2℃ /180℉Working PressurePN10 ,10Bar, 1.0Mpa
Size65-150MM       CertificateNSF/UPC
ConnectionSocket or ThreadColorLight Grey
Swing Check Valve

Ball valve function
Ball valve is defined in the standard GB/T21465-2008"Valve Terminology"as a valve in which the opening and closing member (ball) is driven by the valve stem and rotates around the axis of the valve stem. It is mainly used to cut off or connect the medium in the pipeline, and can also be used for fluid regulation and control. Among them, the hard sealed V-shaped ball valve has a strong shear force between its V-shaped ball core and the metal valve seat welded with hard alloy, especially suitable for media containing fibers and small solid particles.

Main Products：
Swing Check Valve

Plastic ball valves are suitable for intercepting flow during the transportation of corrosive media. Depending on the material, the temperature range is -14°C ~ 100°C, -40°C ~ 140°C. All parts are assembled from RPP or PVDF injection molded parts, and the plastic ball valve has excellent corrosion resistance. The sealing ring has excellent corrosion resistance and extends its service life. Flexible rotation and easy to use. The integral ball valve has fewer leakage points and high strength, and the connected ball valve is easy to assemble and disassemble. Classification of plastic ball valves: flange plastic ball valve, threaded plastic ball valve, socket plastic ball valve, double plastic ball valve.

Plastic ball valves have the characteristics of light weight and strong corrosion resistance, and are used in many fields, such as general pure water and raw drinking water pipeline systems, drainage and sewage pipeline systems, salt water and seawater pipeline systems, acid-base and chemical solution systems, etc. In many industries, the quality has been recognized by the majority of users.

Plastic ball valves are mainly used to cut off or connect the media in pipelines. It can also be used for fluid regulation and control. Compared with other valves, it has the following advantages. 1. The fluid resistance is small, and the ball valve has the smallest fluid resistance among all valves. Even a reduced-diameter ball valve has considerably less fluid resistance. UPVC ball valve is a new material ball valve product developed in recent years according to the needs of various corrosive pipeline fluids. Product advantages: light weight, strong corrosion resistance, compact and beautiful appearance, lightweight and easy to install valve body, strong corrosion resistance, wide application range, hygienic and non-toxic materials, wear resistance, easy disassembly and assembly, and simple maintenance.
​

FAQ

1.What is your MOQ?

 Our MOQ is usually 5 CTNS.

2.What is your delievery time?

 The time of delievery is around 30-45days.

3.What is the shipping port?

 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?

 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?

 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?

Our company is located in the Taizhou Zhejiang Province,China.

If you would like to have a visit, you are much welcome.

7.How about the samples?

We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?

1 Genuine produces with excellent quality and competitive price.

2 Cooperating with the customers all over the world and knowing the markets very well.

3 ERA is a listed company. Everything can be rest assured working with us.

4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
