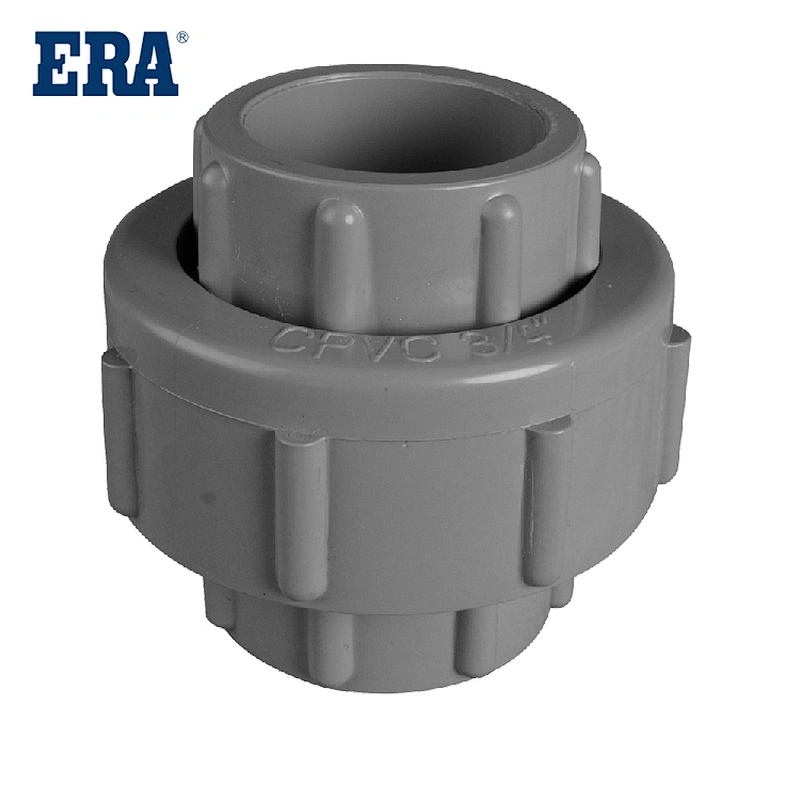

ERA Valves, CPVC UNION, CU001, (ASTM F1970), NSF-pw & UPC
System：CPVC valves System
Valve pressure rating 150 psi at 73°F water non-shock full-port, Maximum service temperature 180°F, Full port, EPDM O-rings, Includes both socket and female NPT thread end connections.
Scope：
Our TUBVs are top quality with easy-to-remove union ends for valve servicing.
The CPVC Solvent-Weld Ball Valve can be used for various applications such as: water supply, building, housing, factory and marine equipment, water and waste treatment, chemical plants, agriculture, irrigation, and multiple industrial uses.
Specification：
CPVC valves shall conform to ISO 4422-4. ASTM F1970-05. CPVC valves shall be manufactured as a system and be the product of one manufacturer.

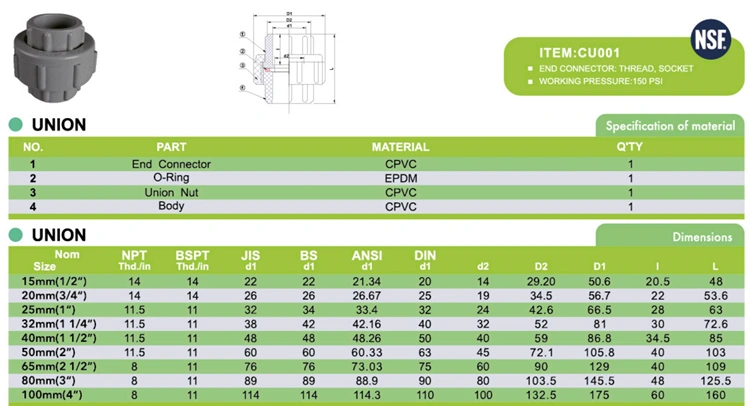

Model Number: | CU001 | Material | CPVC |
Description: | Union | Standard | ASTM F1970 |
Temperature: | Max 82.2℃ /180℉ | Working Pressure: | PN10 ,10Bar, 1.0Mpa |
Size: | 1/2''—2'' | Certificate: | NSF/UPC |
Connection: | Socket or Thread | Color: | Light Grey |
Characteristic：
The valve body has light weight, strong corrosion resistance, compact and beautiful appearance, light weight and easy installation, strong corrosion resistance, wide application range, sanitary and non-toxic material, wear resistance, easy disassembly, simple and easy maintenance.

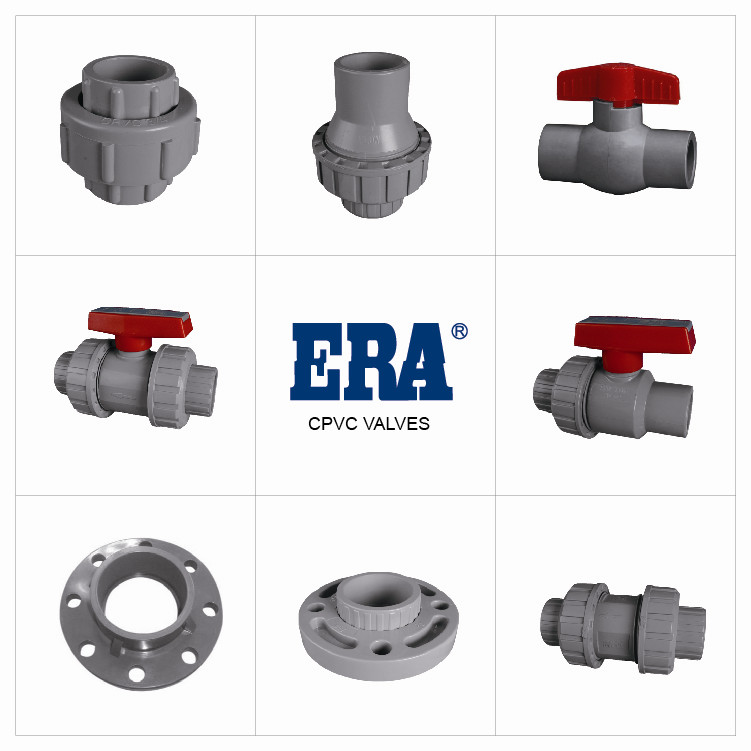

Main Products：
Ball valve came out in the 1950s. With the rapid development of science and technology, the continuous improvement of production technology and product structure, ball valve has rapidly developed into a major valve type in just 40 years. In developed western countries, the use of ball valves is increasing year by year. In my country, ball valves are widely used in petroleum refining, long-distance pipelines, chemical industry, papermaking, pharmaceuticals, water conservancy, electric power, municipal administration, steel and other industries, and occupy a pivotal position in the national economy. It has the action of rotating 90 degrees, and the cock body is a sphere with a circular through hole or a channel through。
CPVC is a new engineering plastic with broad application prospects. The resin is produced by chlorination modification of polyvinyl chloride (PVC) resin and is a new type of engineering plastic. The product is white or light yellow, tasteless, odorless, non-toxic loose granules or powder. After PVC resin is chlorinated, the irregularity of the molecular bonds increases and the polarity increases, which increases the solubility and chemical stability of the resin, thereby improving the material's heat resistance, acid resistance, alkali resistance, salt, oxidant resistance, etc. corrosion. Improved the mechanical properties of the heat distortion temperature of the resin, the chlorine content increased from 56.7% to 63-69%, the Vicat softening temperature increased from 72-82 ℃ to 90-125 ℃, the maximum operating temperature can reach 110 ℃, long-term use The temperature is 95°C. Among them, CORZAN CPVC has better performance indicators.
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
