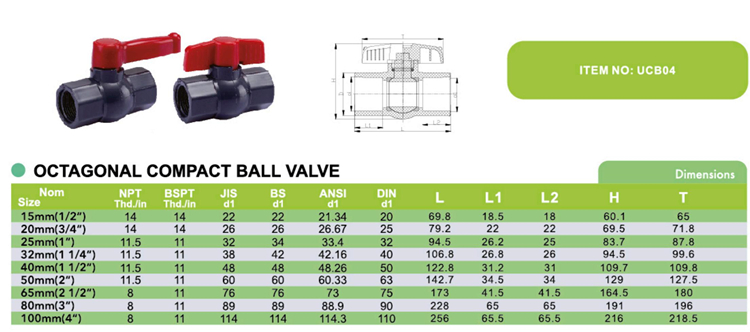

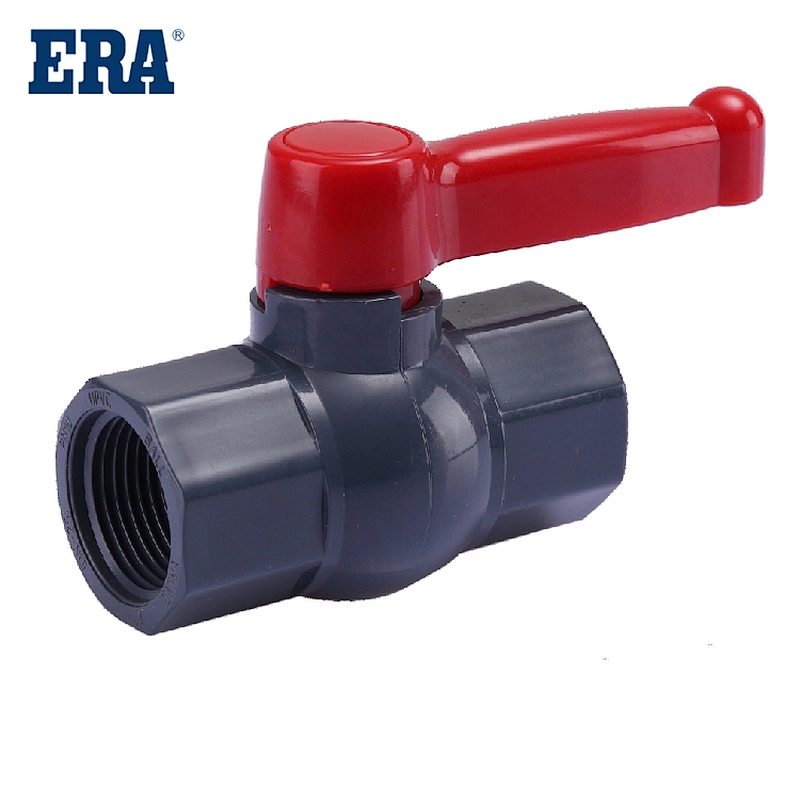

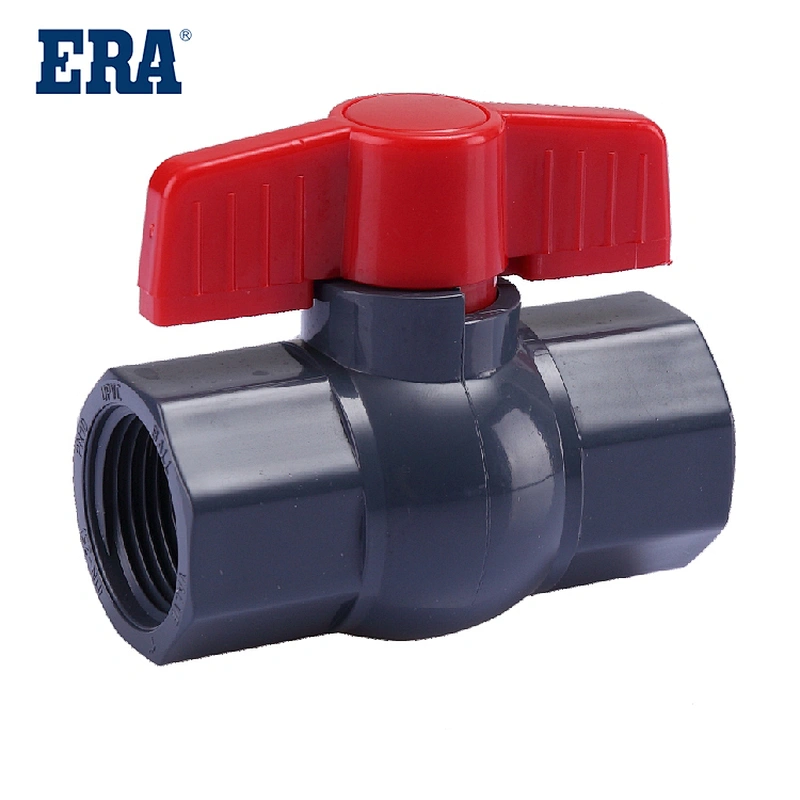

ERA  Valves,   PVC OCTAGONAL COMPACT BALL VALVE, UCB04, PN10 (F1970), NSF-pw & UPC

System：

Ball valve has dual o-ring stem design. May be installed on Sch. 40 or 80 PVC pipe.

Easy turn handle means no pliers or breakage while turning on/off, and it's replaceable!

Specification：

Our true union ball valves are made from durable dark gray PVC and have an easy-to-grip red handle that turns with minimal effort.

Compact PVC ball valve is our most economic ball valve solution. Offered in socket weld and threaded (NPT)

The PVC Ball Valves are used for cold water pressure distribution systems in residential, commercial, agricultural and light industrial applications.

Main Products：

PVC ball valve is mainly used to cut off or connect the medium in the pipeline, and can also be used to regulate and control the fluid. Compared with other valves, it has the following advantages. 1. Small fluid resistance. Ball valves have the smallest fluid resistance among all valve types. Even if they are reduced diameter ball valves, their fluid resistance is quite small. The UPVC ball valve is a new material ball valve product developed according to the needs of various corrosive pipeline fluids. Product advantages: The valve body is light in weight, has strong corrosion resistance, has a compact and beautiful appearance, is light in weight and is easy to install, has strong corrosion resistance, has a wide range of applications, the material is hygienic and non-toxic, wear-resistant, easy to disassemble, and is simple and easy to maintain. .
In addition to PVC plastic materials, plastic ball valves are also made of PPR, PVDF, PPH, CPVC, etc. PVC ball valve has excellent corrosion resistance. The sealing ring is F4. Excellent corrosion resistance and extended service life. Flexible rotation and easy to use. As an integral ball valve, PVC ball valve has fewer leakage points and high strength. The connected ball valve is easy to assemble and disassemble. Installation and use of ball valves: When connecting the flanges at both ends to the pipeline, tighten the bolts evenly to prevent flange deformation and leakage. Turn the handle clockwise to turn it off, and vice versa to turn it on. It can only be used to cut off or pass the flow, and it is not suitable to have flow adjustment. Liquids containing hard particles can easily scratch the surface of the ball.
