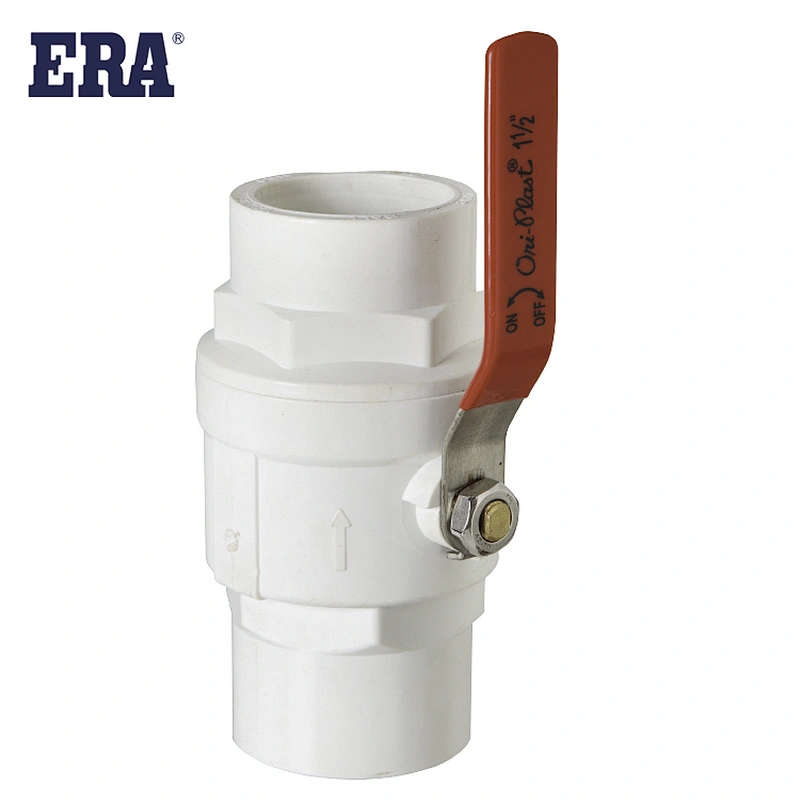

ERA Valves,PVC Two Pcses Ball Valve With Stainless Steel Handle , UCB06, PN10 (F1970), NSF-pw & UPC Scope: Please note - as temperature increases, working pressure decreases, the optimal working pressure for PVC valves is 150 psi at 73°F (22°C). These valves are ideal for the following applications: water
Scope：These valves are ideal for the following applications: water parks, fountains, aquariums, light-duty chemical and waste water.
System：
Easy turn handle means no pliers or breakage while turning on/off, and it's replaceable!
Applications include: general service, commercial plumbing, irrigation, swimming pools & water parks and aquariums.
Specification：
Ourcheck valves are made from durable dark gray PVC valves and have an easy-to-grip red handle that turns with minimal effort.
Usable Range：The ball valve is mainly used to cut off, distribute and change the flow direction of the medium in the pipeline. It only needs to rotate 90 degrees and a small torque to close tightly. Ball valve is most suitable for switch, cut-off valve use. In the pipeline or waterway, the ball valve can play the role of controlling the internal isolation or connection of the pipeline. It can effectively control the flow of liquid and gas.

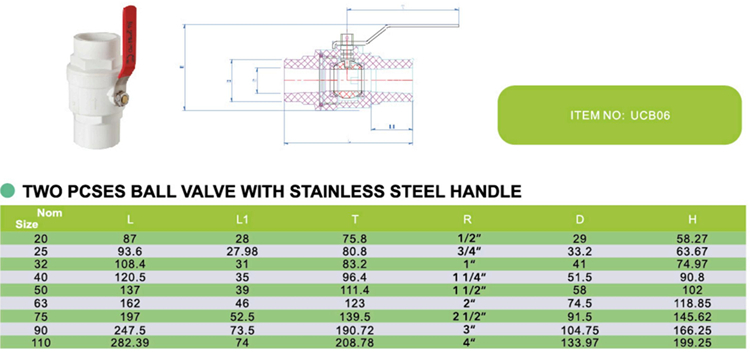

| Model Number | UCB06 | Material | PVC |
| Description | PVC TWP PCSES BALL VALVE WITH STAINLESS STEEL HANDLE | Standard | F1970 |
| Temperature | Max 82.2°C /180°F | Working Pressure | PN10，10Bar， 1.0Mpa |
| Size | 20-110MM | Certificate | NSF UPC |
| Connection | socket or thread | Color | Light grey |
Main Products：
PVC ball valve is mainly used to cut off or connect the medium in the pipeline, and can also be used to regulate and control the fluid. Compared with other valves, it has the following advantages. The fluid resistance is small, and the ball valve has the smallest fluid resistance among all valve types. Even the reduced-diameter ball valve has quite small fluid resistance. The UPVC ball valve is a new material ball valve product developed according to the needs of various corrosive pipeline fluids. Product advantages: The valve body is light in weight, has strong corrosion resistance, has a compact and beautiful appearance, is light in weight and is easy to install, has strong corrosion resistance, has a wide range of applications, the material is hygienic and non-toxic, wear-resistant, easy to disassemble, and is simple and easy to maintain.
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
