UMF01
ERA Piping Systems, III PP Compression Fitting , PP Compression Single Union Ball Valve M/F , UMF01 , WRAS System: Mechanical Compression Fitting (known as PP compression fittings) is a fitting that connect piping elements which require physical force to develop a seal or produce.....
PP pipe is a non-toxic, hygienic and high temperature resistant pipe. It also has differences in thickness and wall thickness. In addition to being used in decoration systems, PP pipes are also commonly used in heating systems, hot and cold water supply, and water supply systems in buildings. The material is also recyclable, so it is relatively low cost. The service life is long, basically up to 50 years. At the same time, it has the characteristics of wear resistance, light weight, easy to weld, smooth inner wall, simple installation, and not easy to freeze and crack. It is one of the most commonly used pipes in people's daily life.

ERA Piping Systems,III PP Compression Fitting , PP Compression Single Union Ball Valve M/F , UMF01 , WRAS

System：
Mechanical Compression Fitting (known as PP compression fittings) is a fitting that connect piping elements which require physical force to develop a seal or produce alignment.
They ensure a perfect seal in the construction of pressurized water distribution systems like sprinkler, garden and agricultural systems.
We offer solutions for connecting PE pipes by Polypropylene (PP) Compression Fittings.
Material：PP
Size range：3/4''*3/4''--4''*4''
Working Pressure：PN16
Color：Black, Light blue, Dark bule
Easy installation.

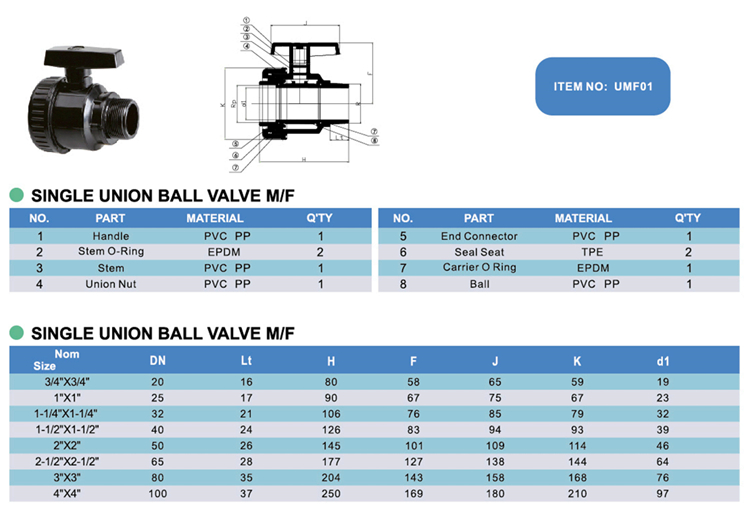

Model Number:

UMF01

Material

PP

Description:

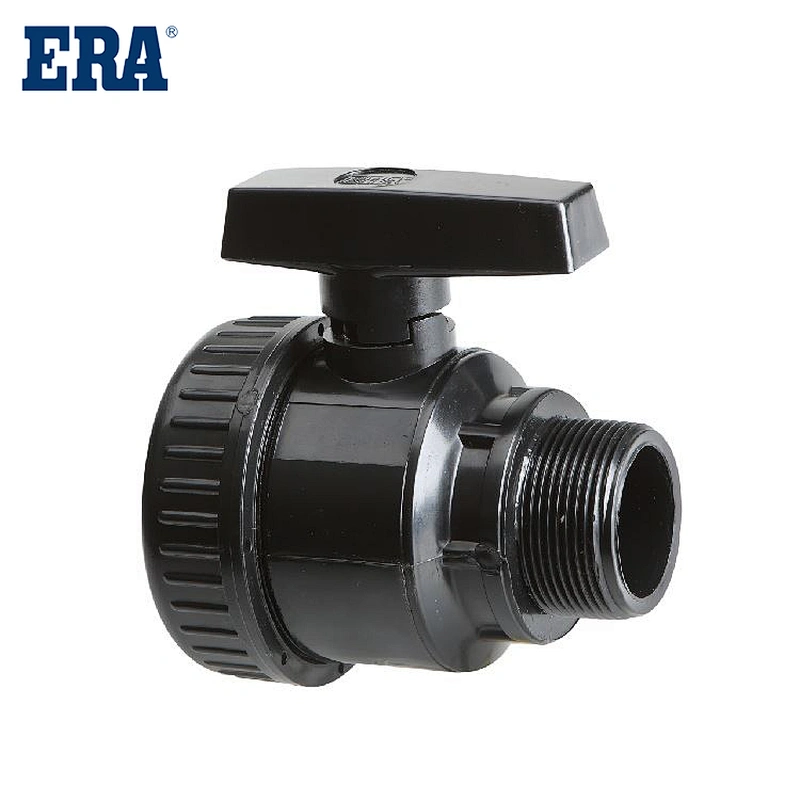

Single Union BALL VAVLE M/F

Standard

ENISO1587 AS/NZS4129

Temperature:

Max 60℃  / 140°F

Working Pressure:

PN16 16Bar 1.6Mpa

Size:

3/4''*3/4''-4''*4''

Certificate:

WRAS  WATERMARK

Connection

Socket

Color:

 BLACK BODY;BLUE CAP

ERA PN16 PP Compression Reducing tee Plastic Fitting

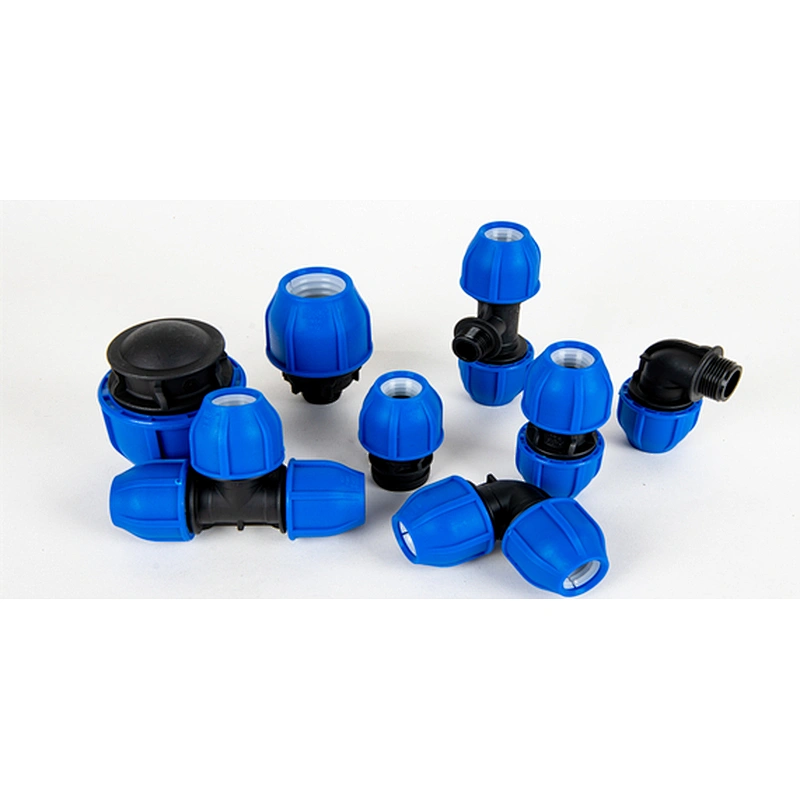

PP compression fittings
ERA Mechanical Compression Fitting is a fitting that connect piping elements which require physical force to develop a seal or
produce alignment. There are several materials of compression fittings, such as: Steel, Brass, Plastic. The most plastic material
used is PP, there are also PE or PVC compression fittings.
PP compression fittings are widely used in water supply and irrigation. ERA mechanical fittings are made by high quality PP
material with UV protection, both material and fittings are approved use with drinking water. The threaded version is BSP.

Main Porducts：

Polypropylene, PP for short, is a polymer of propylene by adding polymerization. It is a waxy white material, transparent and light in appearance [4]. The chemical formula is (C3H6)n, the density is 0.89 ~ 0.91g/cm3, [1] flammable, melting point is 164~170℃, [17] at about 155℃ softening, the use temperature range is -30 ~ 140℃ [2]. Under 80℃ can resist acid, alkali, salt solution and a variety of organic solvent corrosion, can decompose under high temperature and oxidation action. Polypropylene is a thermoplastic synthetic resin with excellent performance. It is a colorless translucent thermoplastic lightweight general purpose plastic with chemical resistance, heat resistance, electrical insulation, high strength mechanical properties and good high wear-resisting machining properties [5]. It is widely used in the production of clothing, blankets and other fiber products, medical instruments, automobiles, bicycles, spare parts, transportation pipes, chemical containers, and also used in food and medicine packaging.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
