UU001
Characteristic 1: Rigid PVC is one of the most widely used plastic materials. PVC material is a kind of non crystalline material.
Characteristic 2: PVC materials are often added with stabilizers, lubricants, auxiliary processing agents, pigments, impact agents and other additives in actual use.
Characteristic 3: PVC material has non flammability, high strength, weather resistance and excellent geometric stability.
Characteristic 4: PVC has strong resistance to oxidants, reducing agents and strong acids. However, it can be corroded by concentrated oxidizing acids, such as concentrated sulfuric acid and concentrated nitric acid, and is not suitable for contacting aromatic hydrocarbons and chlorinated hydrocarbons.
Characteristic 5: The melting temperature of PVC during processing is a very important process parameter. If this parameter is improper, it will lead to the problem of material decomposition.
Characteristic 6: The flow characteristics of PVC are quite poor, and its process range is very narrow. In particular, PVC materials with large molecular weight are more difficult to process (such materials usually need to add lubricant to improve flow characteristics), so PVC materials with small molecular weight are usually used.
Characteristic 7: The shrinkage of PVC is quite low, generally 0.2~0.6%.
PLASTIC VALVES AND FITTINGS

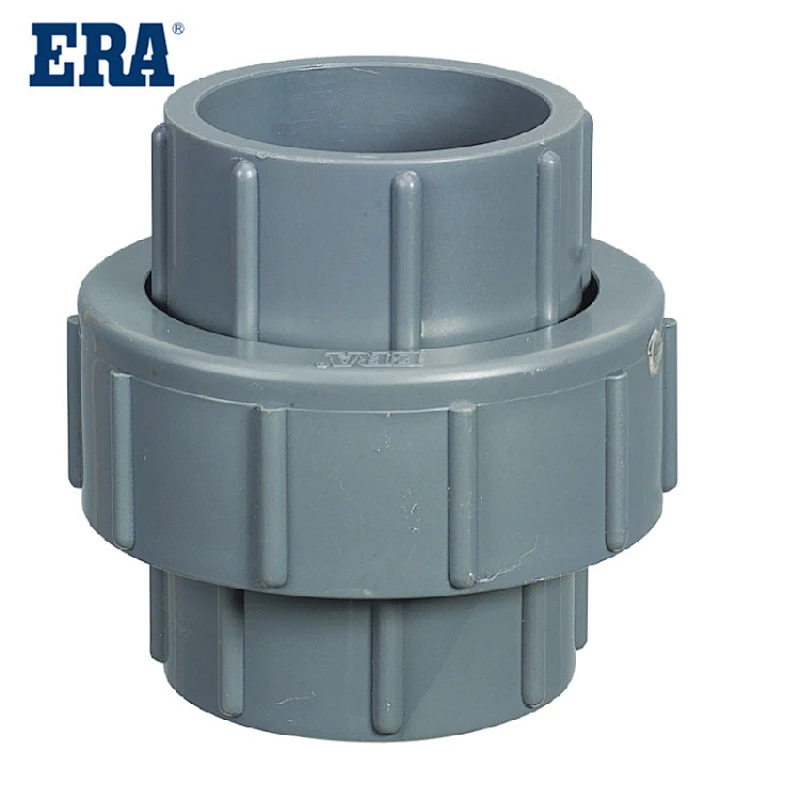

ERA  Valves,  PVC UNION , UU001, PN10 (F1970), NSF-pw & UPC

Unions are compatible with PVC piping system.

Applications include:  general service, commercial plumbing, irrigation, swimming pools & water parks and aquariums.

Scope:  This system is intended for pressure applications where the operating temperature will not exceed 140°F, and work pressure is 1.0 MPa (PN10)

Specification:  PVC unions shall be manufactured from virgid PVC(polyvinyl chloride) vinyl compounds.

Like couplings, PVC unions fit two pipes together. Unlike couplings, however, unions are designed to be a semi-permanent solution. These can easily be removed and replaced as needed, because they require no adhesive. This makes them the best choice when contractors are creating systems that may need to be changed or updated at a later date, or when creating systems that need to be regularly taken apart, either to move them or to inspect them.

Specification:

Model NumberUU001MaterialPVC
DescriptionPVC UNIONSize15-150MM
StandardIOS9393-1:2004ColorSPECIFIED
BrandERATemperatureMax 60°C / 140°F
ConnectionSocket OR THREADCertificateNSF/UPC

Main Products

Company introduction
Certificate exhibition
In addition to PVC plastic ball valve material, there are PPR, PVDF, PPH, CPVC and so on. PVC ball valve has excellent corrosion resistance. The sealing ring is F4. Excellent corrosion resistance, prolong service life. Flexible rotation, easy to use. PVC ball valve as integral ball valve leakage point less, high strength, connected ball valve convenient installation and disassembly. Ball valve installation and use: when both ends of the flange and the pipeline connection, to evenly tighten the bolts to prevent flange deformation caused by leakage. Turn the handle clockwise to close, vice versa to open. Can only be used for flow, flow, not flow regulation. Liquid containing hard particles is easy to scratch the surface of the ball.
