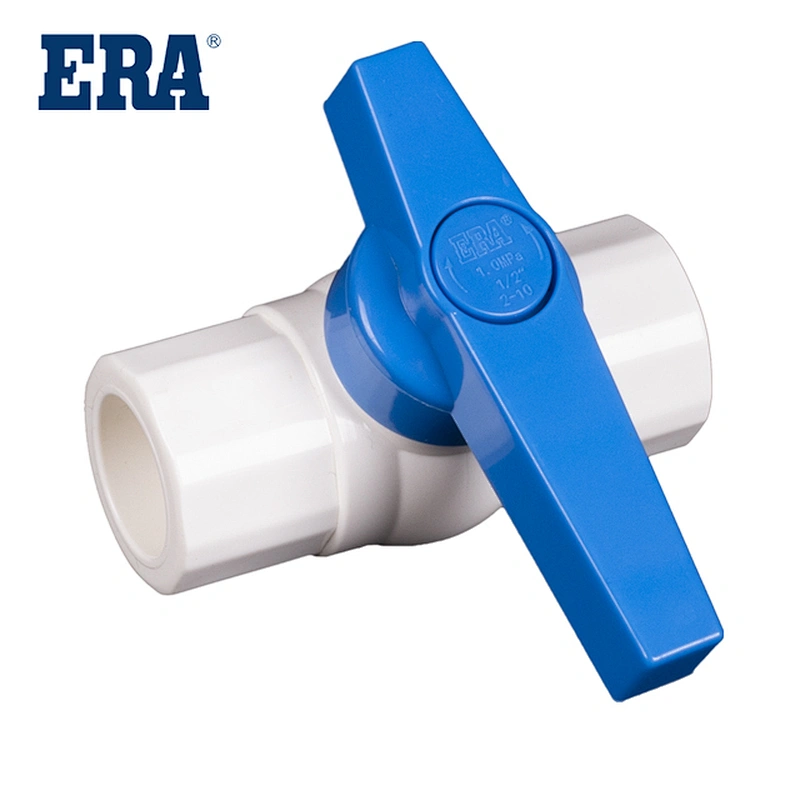

PVC Octagonal Compact Ball Valves

Model NO.: UCB08

ERA PVC octagonal compact ball valve Manufacture Normal Pressure Pvc Compact Ball Valve For Water Ind
PVC ball valve is mainly used to cut off or connect the medium in the pipeline, and can also be used to regulate and control the fluid. Compared with other valves, it has the following advantages. 1. Small fluid resistance. Ball valves have the smallest fluid resistance among all valve types. Even if they are reduced diameter ball valves, their fluid resistance is quite small. The UPVC ball valve is a new material ball valve product developed according to the needs of various corrosive pipeline fluids. Product advantages: The valve body is light in weight, has strong corrosion resistance, has a compact and beautiful appearance, is light in weight and is easy to install, has strong corrosion resistance, has a wide range of applications, the material is hygienic and non-toxic, wear-resistant, easy to disassemble, and is simple and easy to maintain.

Product Description

ERA Valves, PVC Octagonal Compact Ball Valves , UCB08 , PN10 (F1970), NSF-pw & UPC

Specification:
This allows you to repair or replace the carrier without completely disassembling the system, saving time and
money.
Our true union ball valves are made from durable dark gray PVC and have an easy-to-grip red handle that turns
with minimal effort.

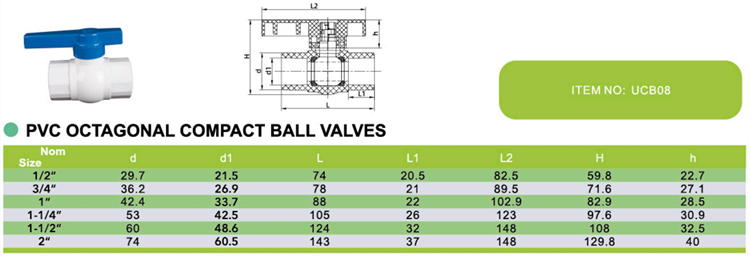

Model Number	UCB08	Material	PVC
Description	PVC OCTAGONAL COMPACT BALL VALVES	Standard	F1970
Temperature	Max 82.2℃ /180℉	Working Pressure	PN10 ,10Bar, 1.0Mpa
Size	1/2''--2''	Certificate	NSF/UPC
Connection	Socket or Thread	Color	Light Grey

Valve pressure rating 150 psi at 73°F water non-shock full-port, Maximum service temperature 180°F, Full port,EPDM O-rings, Includes both socket and female NPT thread end connections.Our PVC ball valves are not only durably and made from a heavy duty material - but also a very affordable and economic option to your project or service need.These valves are ideal for the following applications: water parks, fountains, aquariums, light-duty chemical and waste water.Flanges are fittings that connect to pipes to allow the attachment of accessories and other items, stop the flow or increase the strength of the pipe. Flangess are compatible with PVC piping system.Applications include: general service, commercial plumbing, irrigation, swimming pools & water parks and aquariums.
Main Products：

In addition to PVC plastic materials, plastic ball valves are also made of PPR, PVDF, PPH, CPVC, etc. PVC ball valve has excellent corrosion resistance. The sealing ring is F4. Excellent corrosion resistance and extended service life. Flexible rotation and easy to use. As an integral ball valve, PVC ball valve has fewer leakage points and high strength. The connected ball valve is easy to assemble and disassemble. Installation and use of ball valves: When connecting the flanges at both ends to the pipeline, tighten the bolts evenly to prevent flange deformation and leakage. Turn the handle clockwise to turn it off, and vice versa to turn it on. It can only be used to cut off or pass the flow, and it is not suitable to have flow adjustment. Liquids containing hard particles can easily scratch the surface of the ball.

Ball valve function
Ball valve, defined in the standard GB/T21465-2008"Valve Terminology", is a valve in which the opening and closing parts (ball) are driven by the valve stem and rotate around the axis of the valve stem. It is mainly used to cut off or connect the medium in the pipeline, and can also be used to regulate and control the fluid. Among them, the hard-sealed V-shaped ball valve has a strong shear between its V-shaped ball core and the metal valve seat with hard alloy surfacing. Shearing force, especially suitable for media containing fibers, tiny solid particles and other media. The multi-way ball valve can not only flexibly control the confluence, divergence, and flow direction switching of media on the pipeline, but can also close any channel and connect the other two channels. This type of valve should generally be installed horizontally in pipelines. Ball valve classification: pneumatic ball valve, electric ball valve, manual ball valve.

FAQ

1.What is your MOQ?

Our MOQ is usually 5 CTNS.

2.What is your delievery time?

The time of delievery is around 30-45days.

3.What is the shipping port?

We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?

We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?

You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?

Our company is located in the Taizhou Zhejiang Province,China.

If you would like to have a visit, you are much welcome.

7.How about the samples?

We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?

1 Genuine produces with excellent quality and competitive price.

2 Cooperating with the customers all over the world and knowing the markets very well.

3 ERA is a listed company. Everything can be rest assured working with us.

4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
