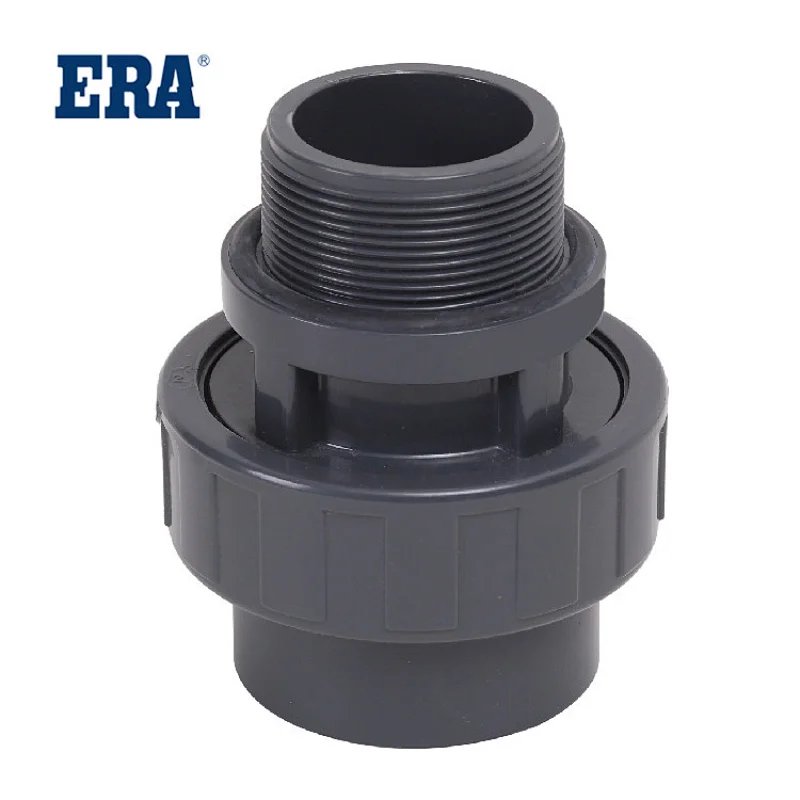

PVC Male Union
PVC Male Union
PVC Male Union
PVC Male Union
ERA BRAND PVC Male Union,PLASTIC VALVES AND FITTINGS
PVC Male Union
PVC Male Union
PVC Male Union
PVC Male Union

PVC Male Union

UU002
Characteristic 1: Rigid PVC is one of the most widely used plastic materials. PVC material is a kind of non crystalline material.
Characteristic 2: PVC materials are often added with stabilizers, lubricants, auxiliary processing agents, pigments, impact agents and other additives in actual use.
Characteristic 3: PVC material has non flammability, high strength, weather resistance and excellent geometric stability.
Characteristic 4: PVC has strong resistance to oxidants, reducing agents and strong acids. However, it can be corroded by concentrated oxidizing acids, such as concentrated sulfuric acid and concentrated nitric acid, and is not suitable for contacting aromatic hydrocarbons and chlorinated hydrocarbons.
Characteristic 5: The melting temperature of PVC during processing is a very important process parameter. If this parameter is improper, it will lead to the problem of material decomposition.
Characteristic 6: The flow characteristics of PVC are quite poor, and its process range is very narrow. In particular, PVC materials with large molecular weight are more difficult to process (such materials usually need to add lubricant to improve flow characteristics), so PVC materials with small molecular weight are usually used.
Characteristic 7: The shrinkage of PVC is quite low, generally 0.2~0.6%.

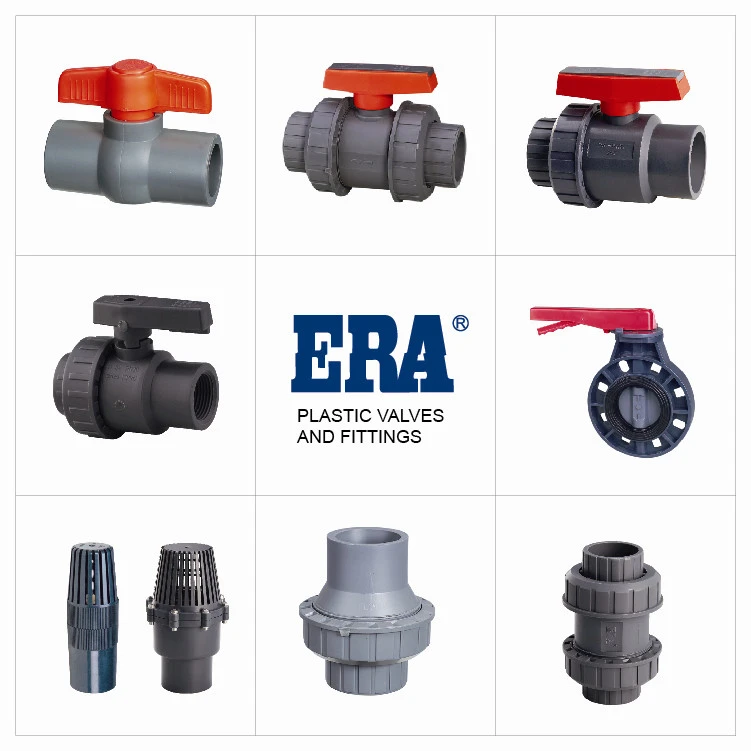

PLASTIC VALVES AND FITTINGS
ERA Valves, PVC MALE UNION, UU002,  PN10 (F1970), NSF-pw & UPC.

system is intended for pressure applications where the operating temperature will not exceed 140°F, and work pressure is 1.0 MPa (PN10)

System:
Unions are compatible with PVC piping system.

Applications include:
general service, commercial plumbing, irrigation, swimming pools & water parks and aquariums

Specification:
Like couplings, PVC unions fit two pipes together. Unlike couplings, however, unions are designed to be a semi-permanent solution. These can easily be removed and replaced as needed, because they require no adhesive. This makes them the best choice when contractors are creating systems that may need to be changed or updated at a later date, or when creating systems that need to be regularly taken apart, either to move them or to inspect them.

PVC unions shall be manufactured from virgid PVC(polyvinyl chloride) vinyl compounds.

Specification:

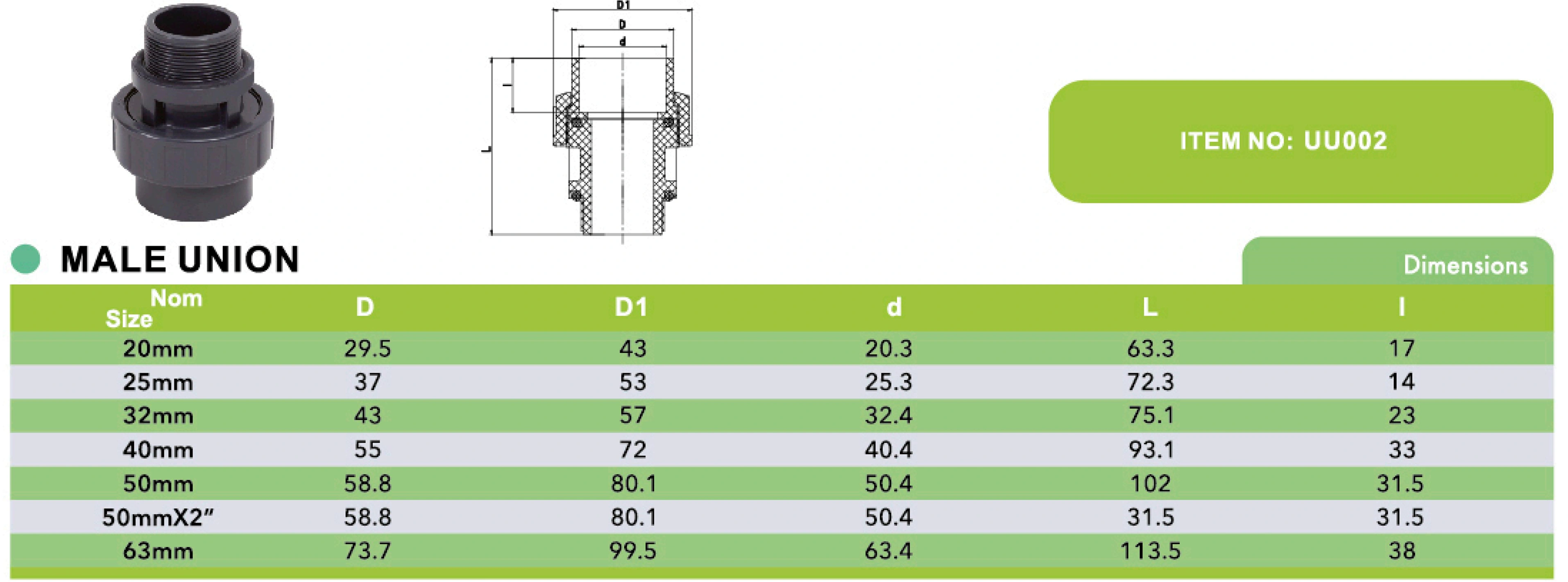

Model NumberUU002MaterialPVC
DescriptionPVC MALE UNIONSize20-63MM
StandardIOS9393-1:2004ColorSPECIFIED
BrandERATemperatureMax 60°C / 140°F
ConnectionSocket OR THREADCertificateNSF/UPC
