UCB03
ERA Valves, PVC COMPACT BALL VALVE M/M, UCB03, PN10 (F1970), NSF-pw & UPC System: Applications include: general service, commercial plumbing, irrigation, swimming pools & water parks and aquariums. Ball valves are designed for open/close liquid flow control. Comes with both Socket and...
READ MORE
PLASTIC VALVES AND FITTINGS

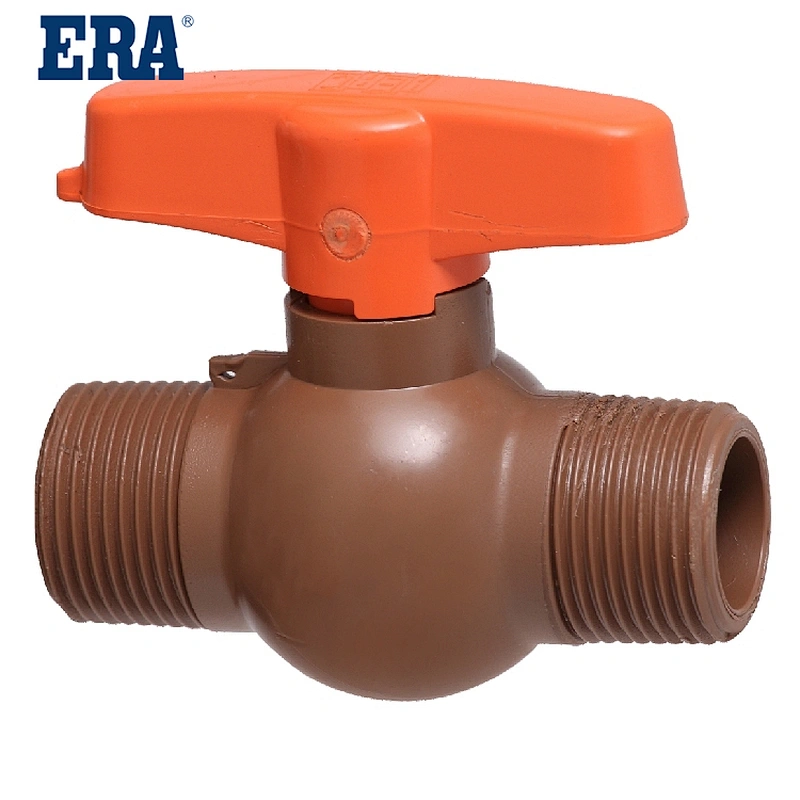

ERA  Valves,PVC Compact Ball Valve M/m ,UBC03, PN10 (F1970), NSF-pw & UPC

System：Ball valves are designed for open/close liquid flow control. Comes with both Socket and Threaded end connections.

Ball valve has dual o-ring stem design. May be installed on Sch. 40 or 80 PVC pipe.

Scope：Our PVC ball valves are not only durably and made from a heavy duty material - but also a very affordable and economic option to your project or service need.

Please note - as temperature increases, working pressure decreases, the optimal working pressure for PVC valves is 150 psi at 73°F (22°C).

Specification：Our PVC ball valves are not only durably and made from a heavy duty material - but also a very affordable and economic option to your project or service need.

Please note - as temperature increases, working pressure decreases, the optimal working pressure for PVC valves is 150 psi at 73°F (22°C).

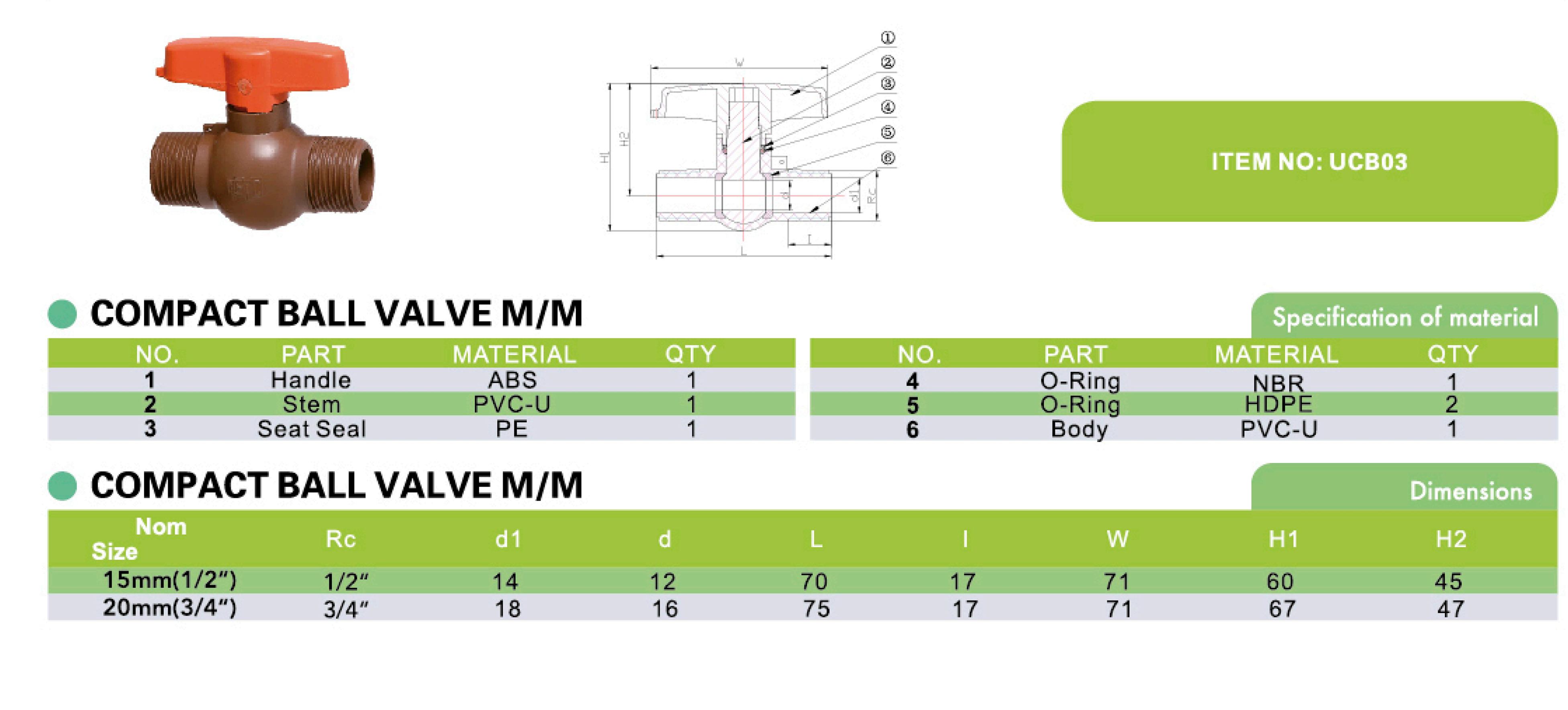

Specification：
Model NumberUCB03MaterialPVC
DescriptionPVC Compact Ball Valve M/mSize15、20（1/2''、3/4''）MM
StandardPN10ColorSPECIFIED
BrandERATemperatureMax 60°C / 140°F
ConnectionSocket or ThreadCertificateNSF/UPC
Main Products：
PVC ball valve is mainly used to cut off or connect the medium in the pipeline, can also be used for fluid regulation and control, compared with other valves, has the following advantages. 1, the fluid resistance is small, ball valve is the least fluid resistance of all the valve class, even if it is reduced diameter ball valve, its fluid resistance is quite small. UPVC ball valve is a new material ball valve product developed according to the requirements of various corrosive pipeline fluids. Product advantages: body light weight, strong corrosion resistance, compact and beautiful appearance, body light weight easy to install, strong corrosion resistance, a wide range of applications, material health non-toxic, wear resistance, easy to disassemble, simple and easy maintenance.

Product introduction
PVC ball valve is a very popular valve product made of PVC material. Because of its good corrosion resistance and high corrosion resistance, it is widely used in water treatment, chemical transportation, sewage treatment and other fields. PVC ball valves are suitable for water and non-corrosive liquid transmission. This kind of valve is widely used in various pipeline flow control because of its small resistance, light operation, quick and simple installation, economical and practical.
Features
1. PVC ball valve has good corrosion resistance and can be used for various liquids.
2. The valve has a simple structure and is easy to maintain.
3. For manually operated ball valves, the escapement mechanism is very flexible and facilitates long-distance operation.
4. The valve has reliable sealing, safe material and durability.
5. The price is relatively low and the service life is long, which greatly reduces pipeline operating costs.
