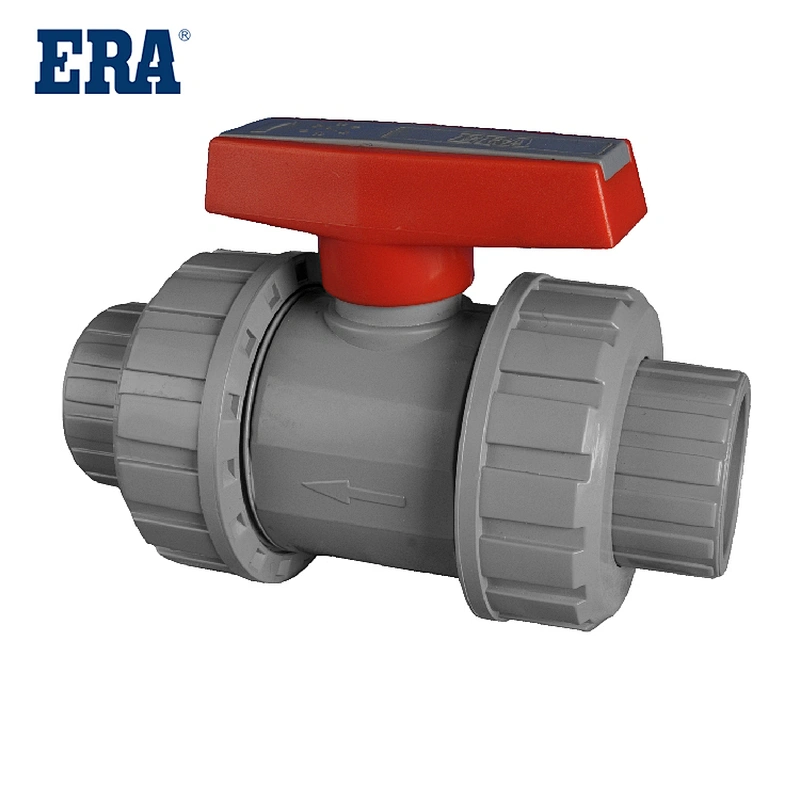

ERA 1/2"-4" CPVC SCH80 Double True Union Ball Valve

CTB01
ERA Valves, CPVC TRUE UNION BALL VALVE, DIN/ANSI/NPT/BSPT/JIS/BS STANDARD, HEAVY OR LIGHT TYPE,WITH COLOR BOX, CTB01, (ASTM F1970), NSF-pw & UPC System: CPVC valves System Valve pressure rating 150 psi at 73°F water non-shock full-port, Maximum service temperature 180°F, Full port, EPDM...
Product advantages: The valve body is light in weight, has strong corrosion resistance, has a compact and beautiful appearance, is light in weight and is easy to install, has strong corrosion resistance, has a wide range of applications, the material is hygienic and non-toxic, wear-resistant, easy to disassemble, and is simple and easy to maintain.

ERA  Valves, CPVC  TRUE UNION BALL VALVE, DIN/ANSI/NPT/BSPT/JIS/BS STANDARD, HEAVY OR LIGHT TYPE,WITH COLOR BOX, CTB01, (ASTM F1970), NSF-pw & UPC

Ball valve, standard GB/T21465-2008"valve terminology"is defined as: the opening and closing parts (spheres) driven by the stem, and around the axis of the stem for rotating motion of the valve. It is mainly used for cutting off or connecting the medium in the pipeline, and can also be used for fluid regulation and control. The hard-sealed V-shaped ball valve has a strong shear force between the V-shaped ball core and the metal valve seat of hardfacing carbide, especially for medium containing fibers and tiny solid materials. The multi-way ball valve in the pipeline can not only flexibly control the medium confluence, diversion, and flow direction switch, but also can close any channel and make the other two channels connected.

Scope：This specification covers CPVC valves for pressure applications. This system is Intended for pressure applications where the operating temperature will not exceed 180°F, and work pressure is 1.0 MPa (PN10)

The CPVC Solvent-Weld Ball Valve can be used for various applications such as: water supply, building, housing, factory and marine equipment, water and waste treatment, chemical plants, agriculture, irrigation, and multiple industrial uses.

Specification：CPVC valves shall be manufactured from virgid chlorinated poly(vinyl chloride).

Large port allows maximum flow and minimum pressure drop or turbulence. Suitable for hot or cold water systems.

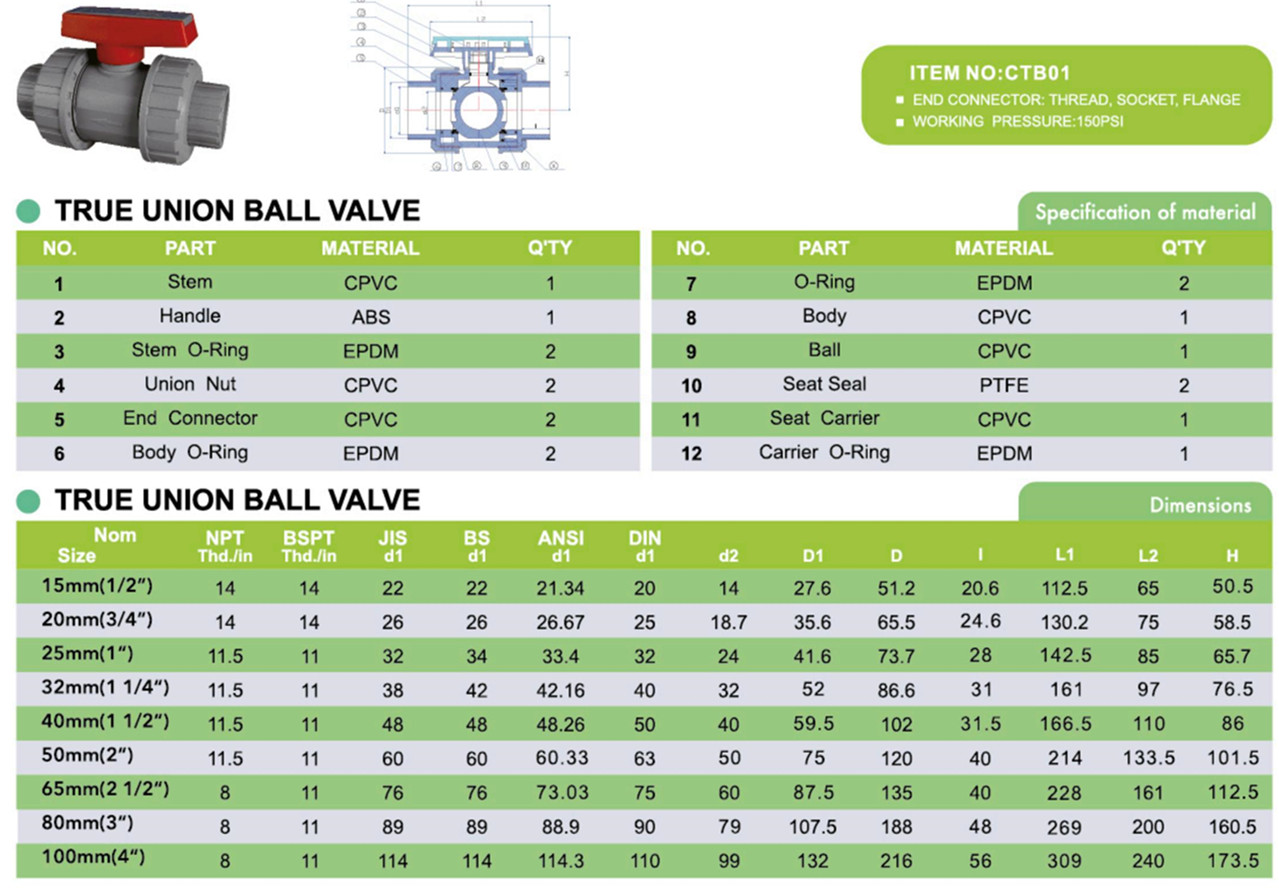

Model Number

CTB01

Material

CPVC

Description

CPVC TRUE UNION BALL VALVE

Standard

ASTM F1970

Temperature

Max 82.2℃ /180℉

Working Pressure

PN10 ,10Bar, 1.0Mpa

Size

1/2''-4''

Certificate

NSF/UPC

Connection

Socket or Thread

Color

Light Grey

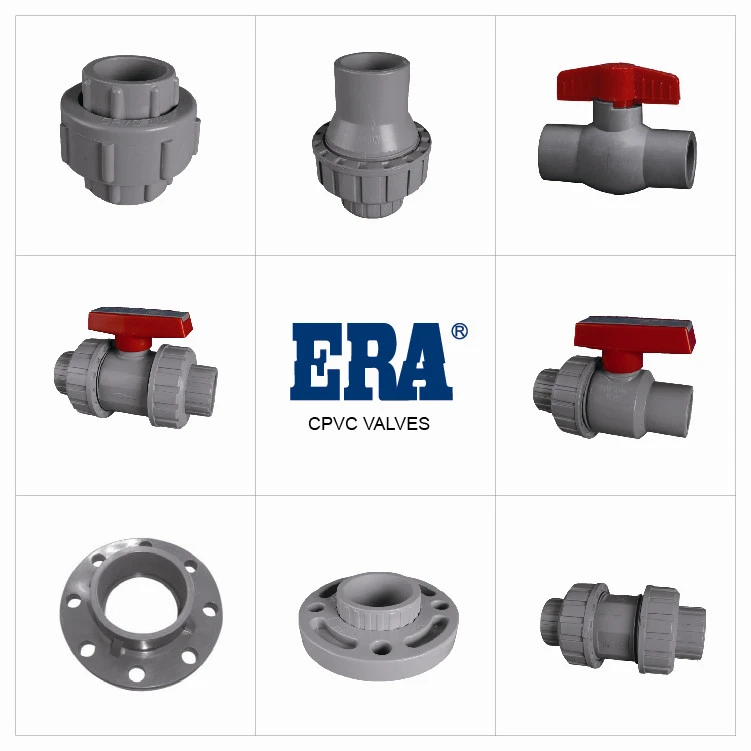

Main Products：

CPVC valves

Advantages of Ball Valves
When fully open and fully closed, the sealing surfaces of the ball and valve seat are isolated from the medium, so the medium passing through the valve at high speed will not cause erosion of the sealing surface.
2. With a compact structure and light weight, it can be considered the most reasonable valve structure for low-temperature medium systems.
3. The valve body is symmetrical, especially the welded valve body structure, which can withstand the stress from the pipeline well.
4. The closing element can withstand the high pressure difference during closing.
5. The ball valve with a fully welded valve body can be directly buried underground, preventing the internal parts of the valve from being corroded, and has a maximum service life of up to 30 years. It is the most ideal valve for oil and natural gas pipelines.

FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.

2.What is your delievery time?
The time of delievery is around 30-45days.

3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
