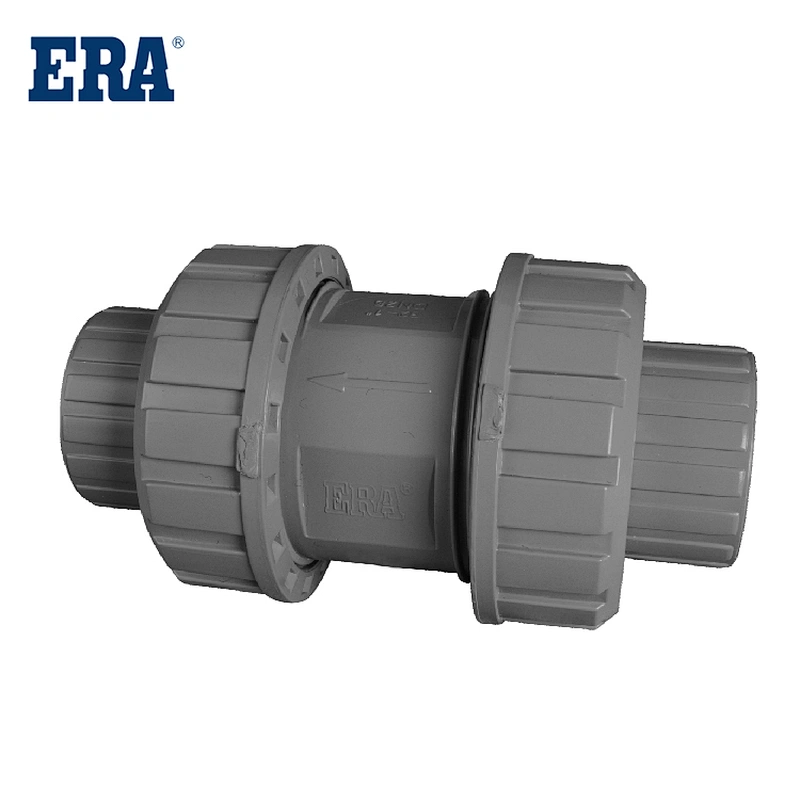

CPVC Ball Check Valve
CPVC Ball Check Valve
CPVC Ball Check Valve
CPVC Ball Check Valve
CPVC Ball Check Valve
CPVC Ball Check Valve
CPVC Ball Check Valve
CPVC Ball Check Valve
CPVC Ball Check Valve
CPVC Ball Check Valve
CPVC Ball Check Valve
CPVC Ball Check Valve
CPVC Ball Check Valve

CPVC Ball Check Valve

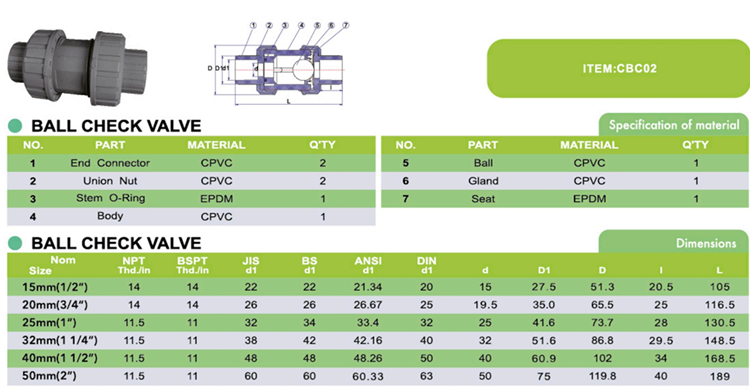

CBC02
ERA Valves, CPVC BALL CHECK VALVE, CBC02, (ASTM F1970), NSF-pw & UPC System: CPVC valves System Valve pressure rating 150 psi at 73°F water non-shock full-port, Maximum service temperature 180°F, Full port, EPDM O-rings, Includes both socket and female NPT thread end connections.
Product advantages: The valve body is light in weight, has strong corrosion resistance, has a compact and beautiful appearance, is light in weight and is easy to install, has strong corrosion resistance, has a wide range of applications, the material is hygienic and non-toxic, wear-resistant, easy to disassemble, and is simple and easy to maintain.

ERA  Valves,   CPVC BALL CHECK VALVE, CBC02, (ASTM F1970), NSF-pw & UPC

Scope:

Please note - as temperature increases, working pressure decreases, the optimal working pressure for PVC valves is 150 psi at 73°F (22°C).

These  valves are ideal for the following applications:  water parks, fountains, aquariums, light-duty chemical and waste water.

System:

Easy turn handle means no pliers or breakage while turning on/off, and it's replaceable!

Applications include: general service, commercial plumbing, irrigation, swimming pools & water parks and aquariums.

Model Number:

CBC02

Material

CPVC

Description:

BALL CHECK VALVE

Standard

ASTM F1970

Temperature:

Max 82.2℃ /180℉

Working Pressure:

PN10 ,10Bar, 1.0Mpa

Size:

1/2''—2''

Certificate:

NSF/UPC

Connection:

Socket or Thread

Color:

Light Grey

CPVC Ball Check Valve

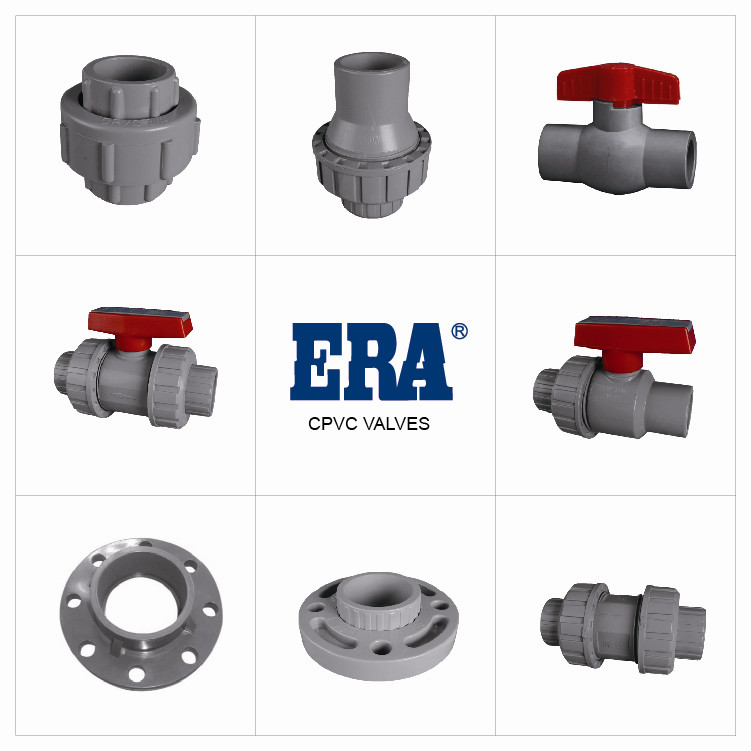

Main Products:

ERA commercial plumbing

PVC profile products have experienced an introduction period and a high-speed development period. From the time point of view, they can be defined as the 1980s to the mid-1990s and from 1995 to 2002. After 2003, the PVC profile industry entered a transition period. In the product introduction period: Manufacturers generally pursue low cost, simplify the section of door and window profiles, and fill a large amount of calcium carbonate in the formula, resulting in very low product performance, and the appearance of many quality problems affects the promotion of the product.

Structure of ball valves
Ball valves evolved from plug valves, and their opening and closing parts act as a ball, using the ball to rotate 90 degrees around the axis of the valve stem to achieve the purpose of opening and closing.

PVC ball valve is mainly used to cut off or connect the medium in the pipeline, and can also be used to regulate and control the fluid. Compared with other valves, it has the following advantages.
The fluid resistance is small, and the ball valve has the smallest fluid resistance among all valve types. Even the reduced-diameter ball valve has quite small fluid resistance. The UPVC ball valve is a new material ball valve product developed according to the needs of various corrosive pipeline fluids.
