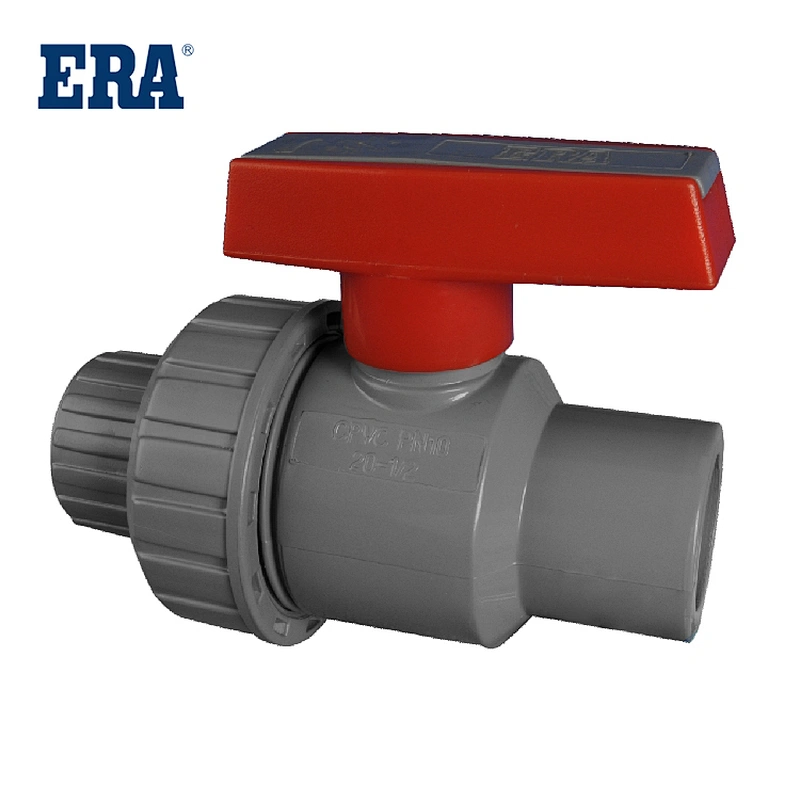

CSU01
ERA Valves, CPVC SINGLE UNION BALL VALVE, DIN/ANSI/NPT/BSPT/JIS/BS STANDARD, ,HEAVY OR LIGHT TYPE, WITH COLOR BOX, CSU01, (ASTM F1970), NSF-pw & UPC System: A CPVC ball valve is an excellent tool for easy open and closed control of water flow, as well as other liquids.
Advantages of PVC ball valve:
Corrosion resistance: PVC material has strong corrosion resistance and can be used to transport a variety of chemical media.
Lightweight: PVC materials are lighter than metal materials and are easier to install and maintain.
Low price: Compared with other valves, PVC ball valves are relatively low-priced and suitable for large-scale use.
Good sealing performance: The sealing performance between the ball and the valve body is good, which can effectively prevent medium leakage.

ERA  Valves,    CPVC SINGLE UNION BALL VALVE, DIN/ANSI/NPT/BSPT/JIS/BS STANDARD, ,HEAVY OR LIGHT TYPE, WITH COLOR BOX, CSU01, (ASTM F1970), NSF-pw & UPC

These  valves are ideal for the following applications:  water parks, fountains, aquariums, light-duty chemical and waste water.

This system is intended for pressure applications where the operating temperature will not exceed 140°F, and work pressure is 1.0 MPa (PN10)

Specification：

True union valves have a carrier that can be removed from the piping system when needed. This allows you to repair or replace the carrier without completely disassembling the system, saving time and money.

PVC flanges shall be manufactured from virgid PVC(polyvinyl chloride) vinyl

These discs create a tight seal when pressing two surfaces together using bolts, clamps, edges or a compressive force.

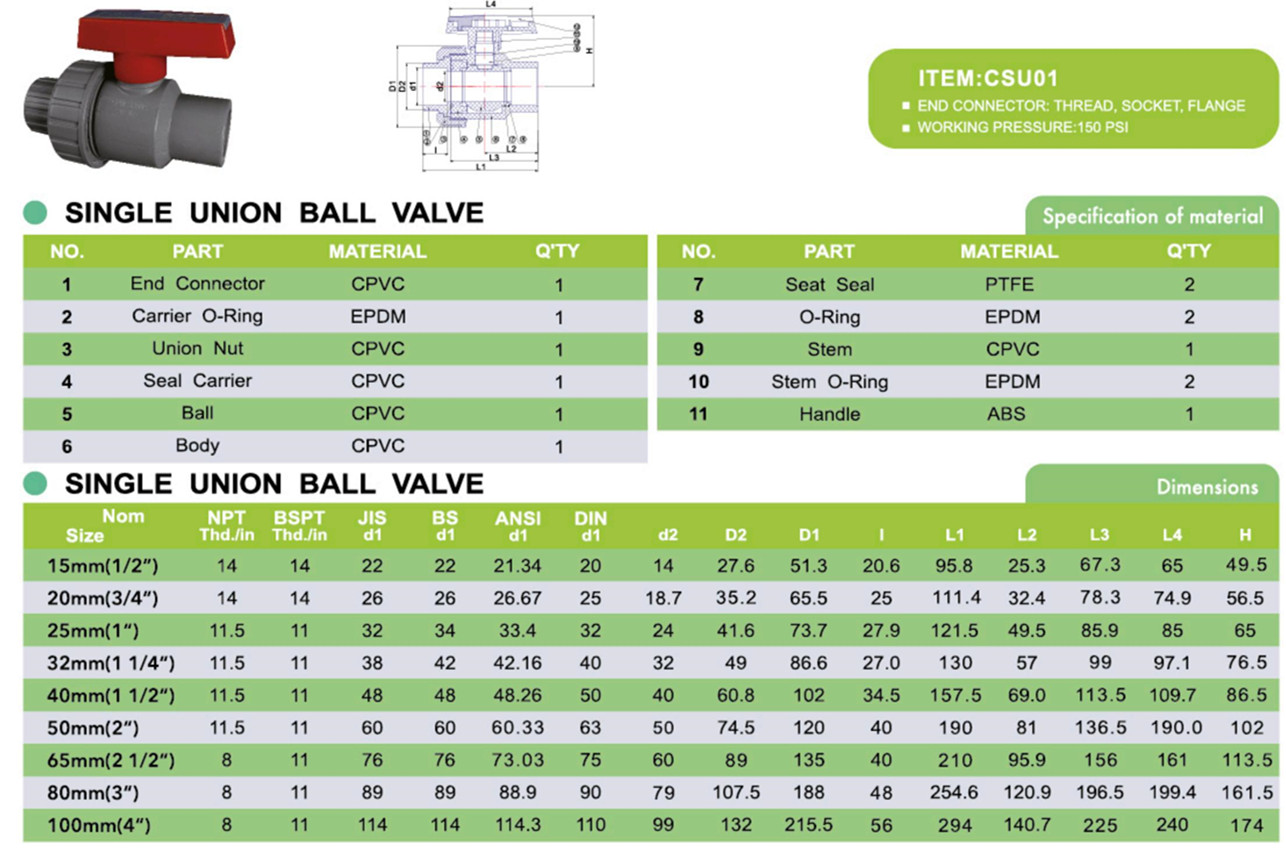

Model Number

CSU01

Material

CPVC

Description

Single Union Ball Valve

Standard

ASTM F1970

Temperature

Max 82.2℃ /180℉

Working Pressure

PN10 ,10Bar,1.0Mpa

Size

1/2''-4''

Certificate

NSF/UPC

Connection

Socket or Thread

Color

Light Grey

CPVC Single Union Ball Valve

Main Products：

Whether CPVC ball valves are exposed to air or buried in corrosive environments such as acid, alkali, salt, chlorination, or oxidation

In the soil, even at a high temperature of 95 ℃, the inside and outside will not be corroded, and it is still as strong and reliable as the original installation.

Ball valve structure and terminology
A ball valve mainly consists of a valve body, valve seat, ball, valve stem, handle (or other driving device). The main function of a ball valve is to cut off or connect the fluid flow in the pipeline
Dao, its working principle is very simple. By using a handle or other driving device to apply a certain torque to the upper end of the valve stem and transmit it to the ball, rotate it at 90 ℃ to make the channel of the ball coincide or perpendicular to the centerline of the valve body channel, and complete the full opening or closing of the ball valve.

FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.

2.What is your delievery time?
The time of delievery is around 30-45days.

3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
Related Products
CPVC Union

CPVC Union

ERA Valves, CPVC UNION, CU001, (ASTM F1970), NSF-pw & UPC System: CPVC valves System Valve pressure rating 150 psi at 73°F water non-shock full-port, Maximum service temperature 180°F, Full port, EPDM O-rings, Includes both socket and female NPT thread end connections. Scope: Our TUBVs are... Characteristics of plastic valves Plastic valves are a type of valve made of engineering plastics. They have good chemical stability, corrosion resistance and temperature resistance, as well as light weight, good insulation, easy installation, and low maintenance costs.

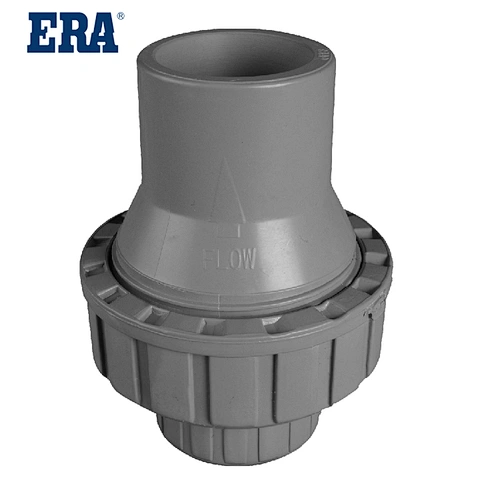

CPVC Single Union Spring Check Valve

CPVC Single Union Spring Check Valve

ERA Valves, CPVC SINGLE UNION SPRING CHECK VALVE, CSU02, (ASTM F1970), NSF-pw & UPC S ystem: Do not use or test with compressed air or other gases A CPVC ball valve is an excellent tool for easy open and closed control of water flow, as well Scope: Our TUBVs are top quality with... The main features of plastic ball valves are compact structure, reliable sealing, simple structure, and easy maintenance. The sealing surface and spherical surface are always in a closed state and are not easily eroded by the medium. They are easy to operate and maintain. They are suitable for general applications such as water, solvents, acids, and natural gas. Working medium, but also suitable for media with harsh working conditions, such as oxygen, hydrogen peroxide, methane and ethylene, etc., and are widely used in various industries. The ball valve body can be integral or combined.

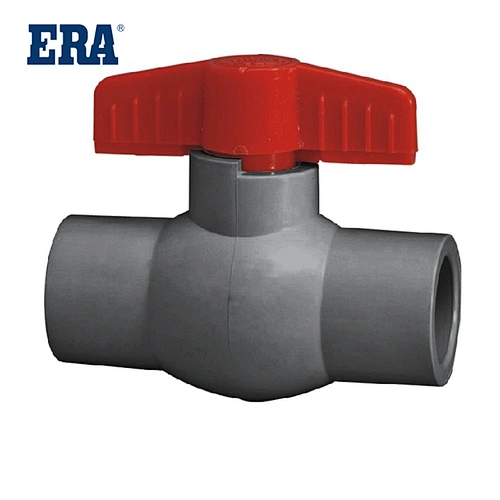

CPVC Compact Ball Valve

CPVC Compact Ball Valve

ERA Valves, CPVC COMPACT BALL VALVE, DIN/ANSI/NPT/BSPT/JIS/BS STANDARD, HEAVY OR LIGHT TYPE, WITH COLOR BOX, CCV01, (ASTM F1970), NSF-pw & UPC System: Do not use or test with compressed air or other gases Scope: Our TUBVs are top quality with easy-to-remove union ends for valve servicing.... Features: In addition to the general PVC drainage pipe characteristics of being light in weight, resistant to corrosion, scaling, and long in service life, it also has the following characteristics: 1. Non-toxic and hygienic. The material contains molecular hydrogen and carbon, and there are no toxic elements. It is hygienic and reliable. It is not only used for hot and cold water pipes, but also for pure drinking water systems. 2. Insulation and energy saving. PVC drainage pipe thermal conductivity 1/200 0.21w/mk, steel pipe. 3. Good heat resistance. The Vicat PVC drainage pipe has a softening point of 131.5°C and a maximum working temperature of 95°C, which can meet the requirements of the building water supply and drainage standard hot water system.
ERA 1/2

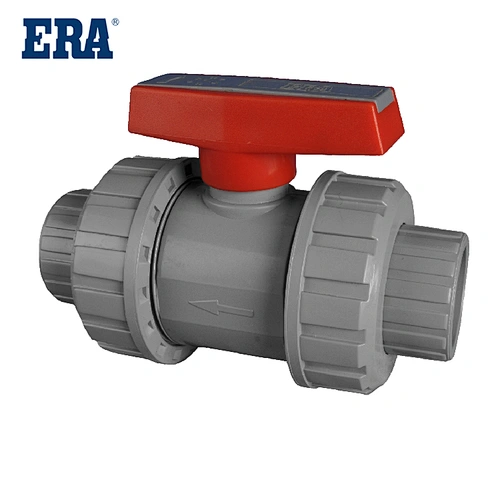

ERA 1/2"-4" CPVC SCH80 Double True Union Ball Valve

ERA Valves, CPVC TRUE UNION BALL VALVE, DIN/ANSI/NPT/BSPT/JIS/BS STANDARD, HEAVY OR LIGHT TYPE,WITH COLOR BOX, CTB01, (ASTM F1970), NSF-pw & UPC System: CPVC valves System Valve pressure rating 150 psi at 73°F water non-shock full-port, Maximum service temperature 180°F, Full port, EPDM... Product advantages: The valve body is light in weight, has strong corrosion resistance, has a compact and beautiful appearance, is light in weight and is easy to install, has strong corrosion resistance, has a wide range of applications, the material is hygienic and non-toxic, wear-resistant, easy to disassemble, and is simple and easy to maintain.

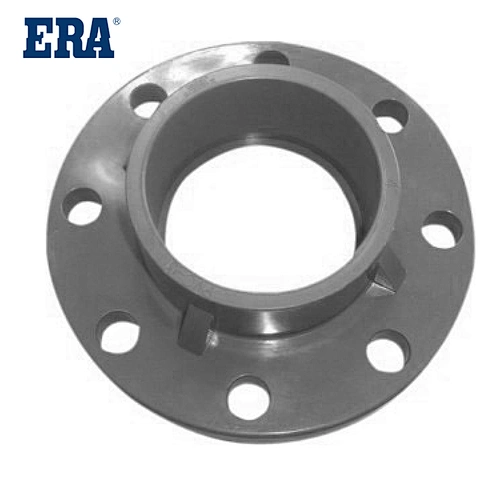

CPVC Ts Flange

CPVC Ts Flange

ERA Valves, CPVC TS FLANGE, CTF01, (ASTM F1970), NSF-pw & UPC System: Do not use or test with compressed air or other gases A CPVC ball valve is an excellent tool for easy open and closed control of water flow, as well as other liquids. Scope: Our TUBVs are top quality with easy-to-remove... It is mainly used to cut off or connect the medium in the pipeline, and can also be used to regulate and control the fluid. Among them, the hard-sealed V-shaped ball valve has a strong shear between its V-shaped ball core and the metal valve seat with hard alloy surfacing. Shearing force, especially suitable for media containing fibers, tiny solid particles and other media.

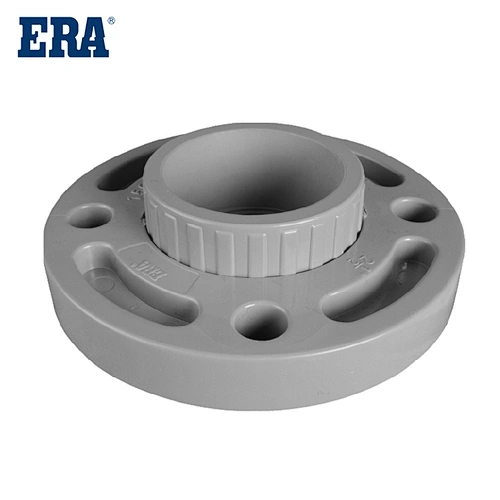

Factory Direct Supply Cpvc Van Stone Flange With 50 Years Warranty

Factory Direct Supply Cpvc Van Stone Flange With 50 Years Warranty

ERA Valves, CPVC VAN STONE FLANGE, CVF01, (ASTM F1970), NSF-pw & UPC System: A CPVC ball valve is an excellent tool for easy open and closed control of water flow, as well as other liquids. Scope: Our TUBVs are top quality with easy-to-remove union ends for valve servicing. In addition to PVC plastic materials, plastic ball valves are also made of PPR, PVDF, PPH, CPVC, etc. PVC ball valve has excellent corrosion resistance. The sealing ring is F4. Excellent corrosion resistance and extended service life. Flexible rotation and easy to use. As an integral ball valve, PVC ball valve has fewer leakage points and high strength. The connected ball valve is easy to assemble and disassemble. Installation and use of ball valves: When connecting the flanges at both ends to the pipeline, tighten the bolts evenly to prevent flange deformation and leakage. Turn the handle clockwise to turn it off, and vice versa to turn it on. It can only be used to cut off or pass the flow, and it is not suitable to have flow adjustment. Liquids containing hard particles can easily scratch the surface of the ball.

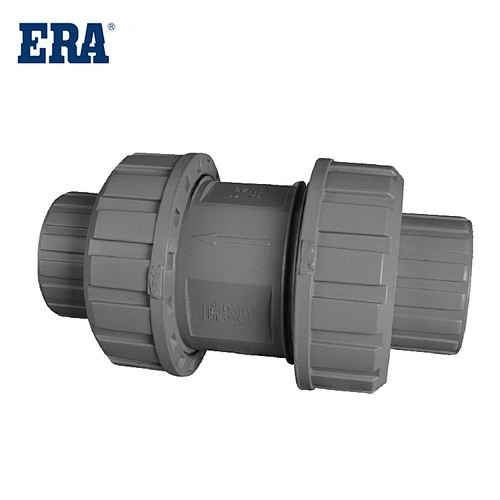

CPVC Ball Check Valve
