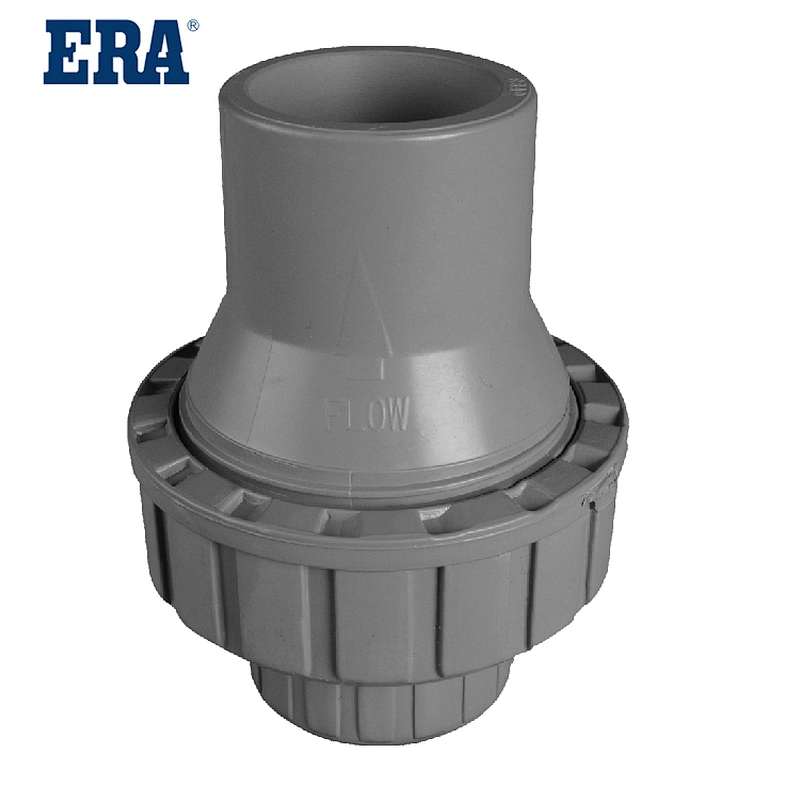

ERA Valves, CPVC SINGLE UNION SPRING Check Valve , CSU02, (ASTM F1970), NSF-pw & UPC
System：
Do not use or test with compressed air or other gases
A CPVC ball valve is an excellent tool for easy open and closed control of water flow, as well
Scope：
Our TUBVs are top quality with easy-to-remove union ends for valve servicing.
The CPVC Solvent-Weld Ball Valve can be used for various applications such as: water supply, building, housing, factory and marine equipment, water and waste treatment, chemical plants, agriculture, irrigation, and multiple industrial uses.

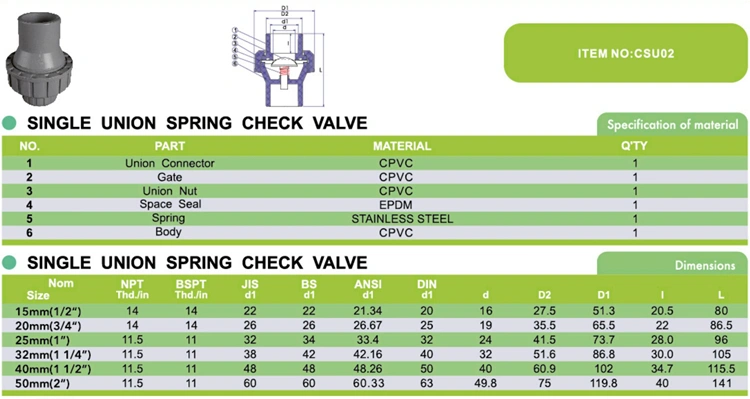

Specification：
Model Number | CSU02 | Material | CPVC |
Description | Single Union Spring Check Valve | Standard | ASTM F1970 |
Temperature | Max 82.2℃ / 180°F | Working Pressure | PN10 10Bar 1.0Mpa |
Size | 1/2''-2'' | Certificate | NSF/UPC |
Connection | Socket & Thread | Color | Light Grey |
Feature：
The PVC ball valve is mainly used to cut off or connect the medium in the pipeline, and can also be used for the regulation and control of the fluid. Compared with other valves, it has the following advantages. 1. Small fluid resistance, ball valve is the smallest fluid resistance among all valves, even the reduced diameter ball valve, its fluid resistance is quite small. The UPVC ball valve is a new material ball valve product developed according to the needs of various corrosive pipeline fluids. Product advantages: the valve body is light in weight, strong in corrosion resistance, compact and beautiful in appearance, light in weight and easy to install, strong in corrosion resistance, wide application range, hygienic and non-toxic material, wear-resistant, easy to disassemble, simple and easy to maintain .
In addition to PVC plastic materials, plastic ball valves also include PPR, PVDF, PPH, CPVC, etc. PVC ball valve has excellent corrosion resistance. The sealing ring adopts F4. Excellent corrosion resistance and extended service life.

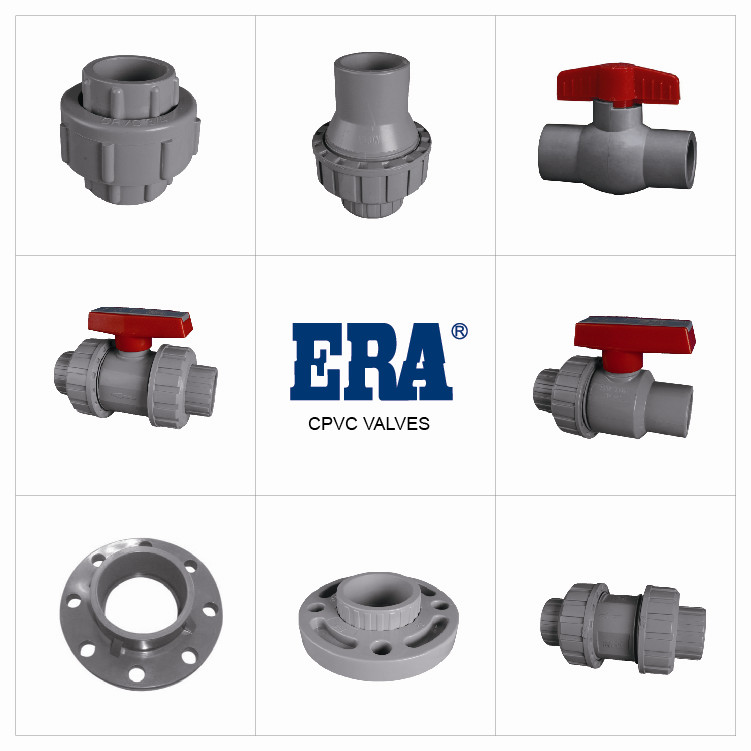

Main Products：
Advantages of plastic ball valve
The valve body is light in weight and has strong corrosion resistance, such as: pure water and drinking water piping systems, drainage and sewage piping systems, salt water and seawater piping systems, acid-base and chemical solution systems, and many other industries.
※ Compact and beautiful appearance
※The main body is light in weight and easy to install.
※ Strong corrosion resistance and wide application range
※ The material is hygienic and non-toxic
※ Wear-resistant, easy to disassemble, simple and easy to maintain
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
