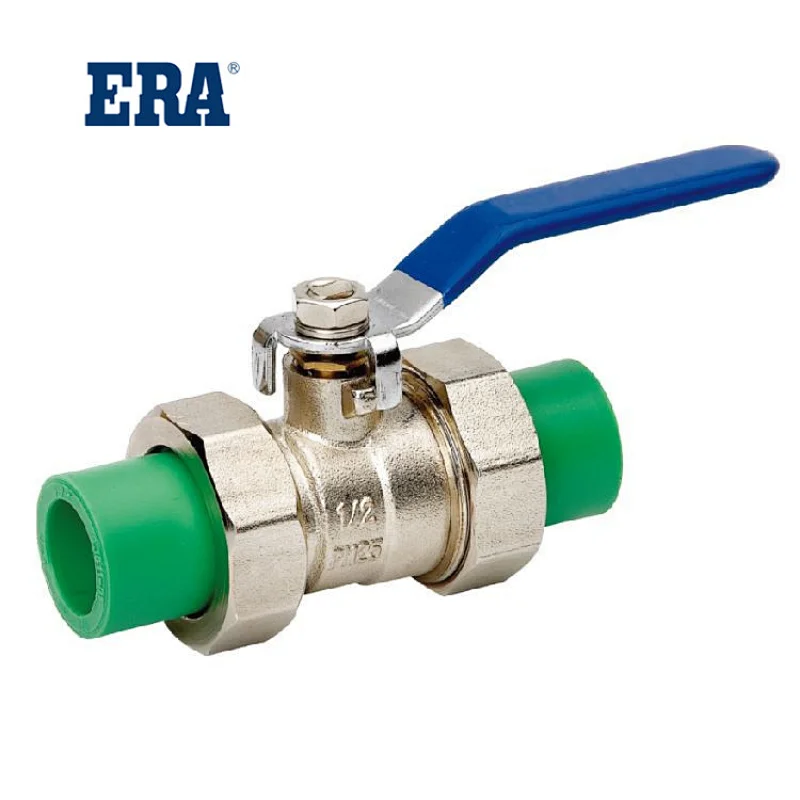

ERA BRAND PPR True Union Ball Cock,DIN8077/8088 STANDARD PPR FITTINGS AND VALVES
ERA BRAND PPR True Union Ball Cock,DIN8077/8088 STANDARD PPR FITTINGS AND VALVES
PPR True Union Cock
PPR True Union Cock
PPR True Union Cock
PPR True Union Cock
ERA BRAND PPR True Union Ball Cock,DIN8077/8088 STANDARD PPR FITTINGS AND VALVES
PPR True Union Cock
PPR True Union Cock
PPR True Union Cock
PPR True Union Cock

PPR True Union Cock

PR020
1. Hygiene: It is a green building material without chemical action. PP-R raw material is polyolefin, and its molecule is only composed of carbon and hydrogen elements, with reliable health performance.
2. Convenient and reliable installation: notice hot melt connection is adopted, and a joint connection can be completed in a short time, which is convenient and time-saving.
3. Thermal insulation and energy conservation: the thermal conductivity coefficient is 0.24W/m · k, which is only one hundredth of that of metal pipes, and the heat loss for hot water pipes is very small.
4. Light weight, high specific strength: the specific gravity is about one of the eight of the steel pipe. The pressure test has high strength, good toughness and good impact resistance.
5. The inner and outer walls of the product are smooth, the flow resistance is small, and the energy consumption of the fluid conveying system is small.
6. Strong heat resistance: the working temperature of the conveying water is 70 ℃ for long-term use and 95 ℃ for short-term use.

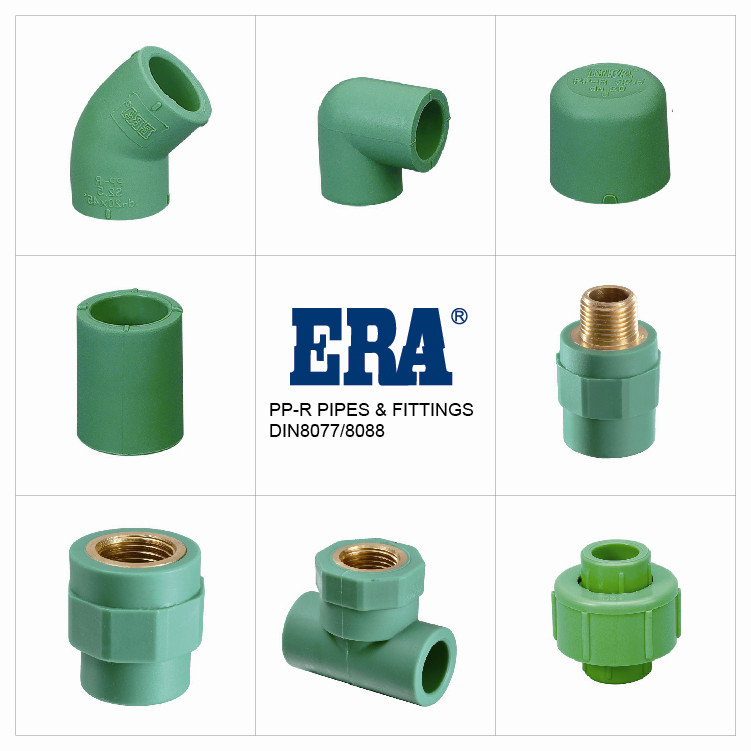

PPR DIN PIPES AND FITTINGS
ERA Piping Systems, PPR Pipe Fitting ,TRUE UNION BALL COCK,PR020,(DIN8077/8088) , DVGW

System:  Our standard colour is green and gray however if the Qty is good we can provide customized colour also.

PPR Pressure Pipe and Fitting System

Scope:  The integrated system is easy to use and install, fulfills the stringent requirements of the water sector and offers excellent value for money.

No gradual descrution of the material by any chemical which makes it Non corrosive in nature.
Advanced production management system
ERA brand PPR pipes are suitable for transferring or discharging chemical media, such as industrial piping system.
ERA PPR plumbing system can stand out against high impact and pressure, which restrict its structural damage. Like diametric contraction.

Referenced Standards:  DIN 8077&DIN8078  DVGW examination certificate

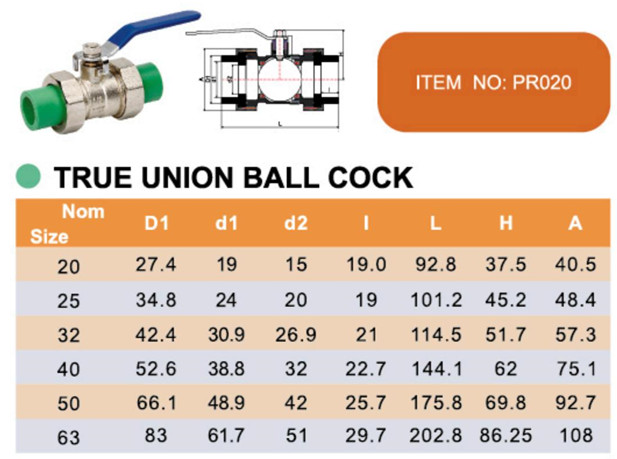

Specification:

Model NumberPR020MaterialPPR
DescriptionPPR TRUE UNION BALL COCKSize20-63MM
StandardDIN8077/8088ColorGREEN、GREY
BrandERATemperatureMax 95°C / 203°F
ConnectionSocket CertificateDVGW

Main Products

Company introduction
Certificate exhibition
Compared with traditional cast iron pipe, galvanized steel pipe, cement pipe and other pipes, PPR pipe has the advantages of energy saving, environmental protection, light weight, high strength, corrosion resistance, smooth inner wall without scaling, easy construction and maintenance, long service life, etc. Widely used in building water supply and drainage, urban and rural water supply and drainage, urban gas, power and cable sheathing, industrial fluid transport agricultural irrigation and other construction, municipal, industrial and agricultural fields.
