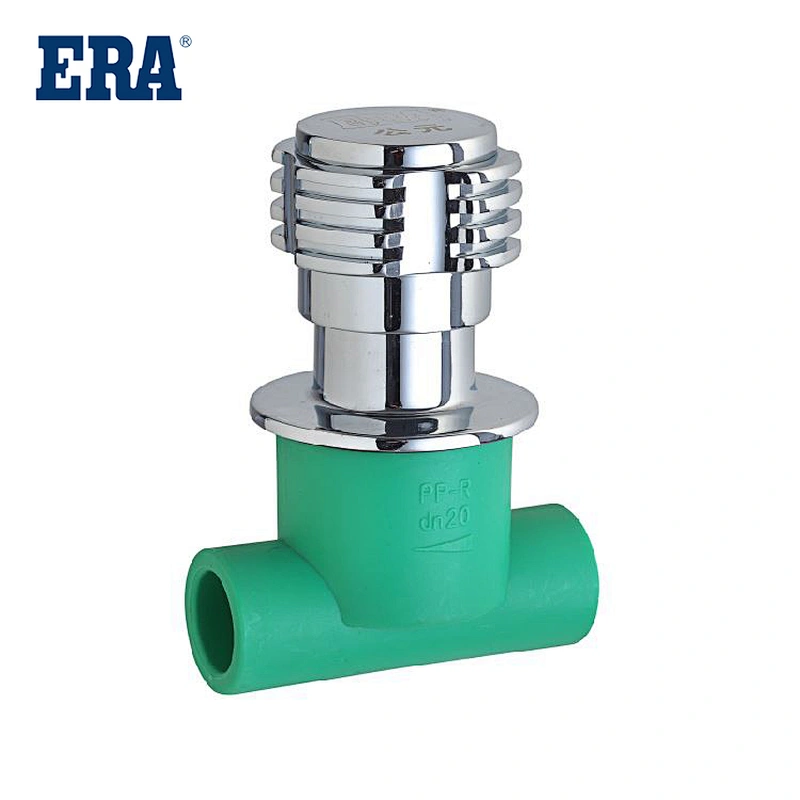

ERA Piping Systems, PPR Pipe Fitting ,Ⅲ STOP VALVE,PRD001,(DIN8077/8088) , DVGW
System：
This raw material is recommended for the production of pressure pipes including potable water transfer lines, hot and cold water transfer lines, floor heating and also for chemical industry application.
Scope：
We produce PPR Pipes in 3 Pressure rating i.e. PN 10, PN 16, PN 20 and size from 16mm to 160mm and standard length is 4 mtr. However, length can be customized on volume requirements.
The integrated system is easy to use and install, fulfills the stringent requirements of the water sector and offers excellent value for money.

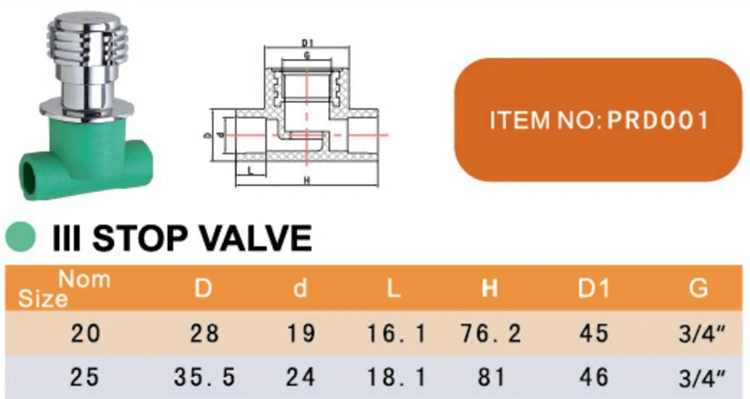

Model Number: | PRD001 | Material: | PPR |
Description: | Ⅲ STOP VALVE | Standard: | DIN8077/8088 |
Temperature: | Max 95℃ / 203°F | Working Pressure: | PN16 16Bar 1.6Mpa |
Size: | 20mm,25MM | Certificate: | DVGW |
Connection: | Socket | Color: | GREEN / GREY |
FIELDS OF APPLICATION
1.Chemical transport
2.R.O Water Line
3.Transportation of Slurries
4.Fertilizer
5.Acid bath
6.Barge loading and unloading Tank storage
7.Liquor, bleaching, and caustic acid lines
Product advantage：
1, health and environmental protection. Polypropylene is an environmentally friendly material and can be used as drinking water transport.
2, the joint with hot melt connection, become one body, 100% no leakage, other materials with wire connection, its seepage resistance is less, also avoid the toxicity of glue bonding.
3, conveying resistance is small.
4, the price is cheap and moderate.
5, long service life, according to the national standard GB/T18742 production and use can be used for 50 years.
PPR is short for type three polypropylene, using hot welding method, special welding and cutting tools, has high reliability. The price is also economical. The insulation performance is also very good, and the tube walls are very smooth! The general price is 4-8 yuan per meter (4 parts). Joints excluding inner and outer wires.
PPR pipe formally known as random copolymerization polypropylene pipe, is the most used in the home decoration project of a water supply pipeline.
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
