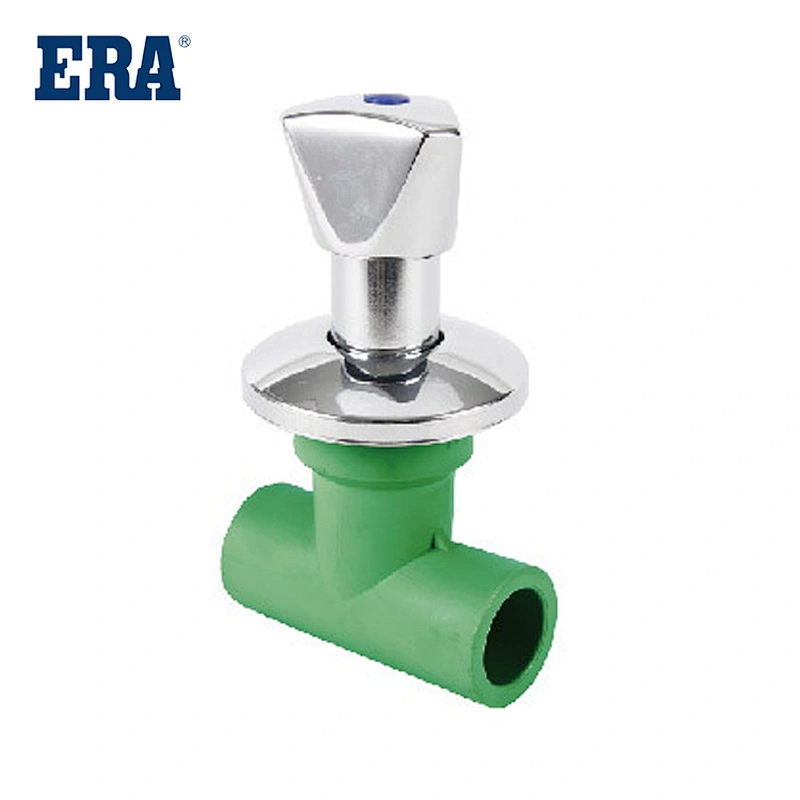

PPR STOP VALVE WITH LONG HANDLE

Model NO.: PR038

1. Beautiful appearance and convenient installation; The product is white, soft in color and beautiful in shape; Smooth inner and outer walls, small fluid resistance
2. Good integrity and reliable quality; It is integrally processed with imported raw materials, and the interface is not easy to crack and leak. 3. During the opening and closing process, the friction between the valve disc and the valve body sealing surface is smaller than that of the gate valve, so it is wear-resistant.
4. The opening height is generally only 1/4 of the valve seat channel, so it is much smaller than the gate valve;
5. Generally, there is only one sealing surface on the valve body and disc, so the manufacturing process is better and it is easy to maintain;
6. The filler is generally a mixture of asbestos and graphite, so the temperature resistance is high. Generally, stop valves are used for steam valves.

Product Description

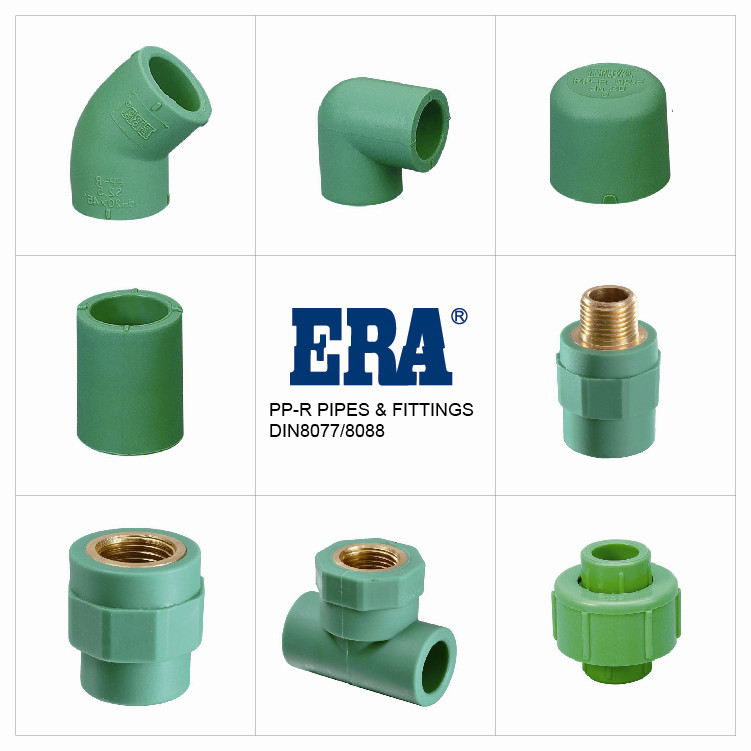

PPR DIN PIPES AND FITTINGS
ERA Piping Systems, PPR Pipe Fitting ,STOP VALVE WITH LONG HANDLE,PR038,(DIN8077/8088) , DVGW

Specification：

PPR pipe has a smooth inner surface, thus not letting any calcification to happen inside the pipe.

PPR is very economically placed in comparison to most of the alternative piping system.

PPR has been designed and produced as a piping system for hot and cold water supply as well as for heating applications.

Scope：PPR pipes and fittings are suitable for hot and cold water transfer in buildings, underfloor and central heating systems. They can also be used for air ducts in industry and agriculture.

We produce PPR Pipes in 3 Pressure rating i.e. PN 10, PN 16, PN 20 and size from 16mm to 160mm and standard length is 4 mtr. However, length can be customized on volume requirements.

System：This raw material is recommended for the production of pressure pipes including potable water transfer lines, hot and cold water transfer lines, floor heating and also for chemical industry application.

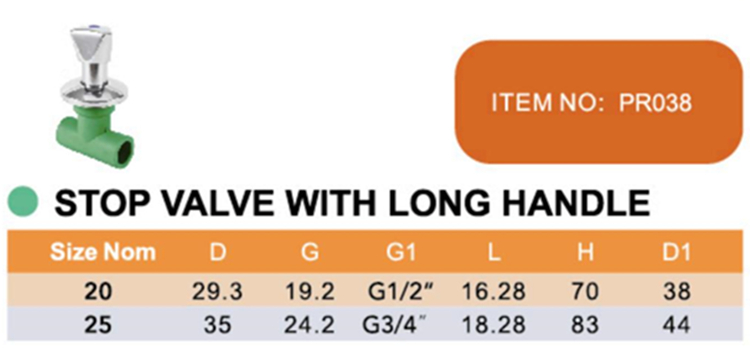

Specification：

Model Number	PR038	Material	PPR
Description	PPR STOP VALVE WITH LONG HANDLE	Size	20、25MM
Standard	DIN8077/8088	Color	GREEN、GREY
Brand	ERA	Temperature	Max 95°C / 203°F
Connection	Socket	Certificate	DVGW

Main Products：

PPR pipe features: no rust, no corrosion, environmental health, such as the brand PPR water pipe, all ions in the water and the chemical substances in the building are not chemical action, pipeline long time use will not rust, will not corrosion, will not lead to drinking water quality pollution.

Good hot melt between the brand PPR pipe fittings has good hot melt, can melt the pipe and pipe fittings into a whole, can prevent the potential water leakage at the interface.

Application field：

1.PPR is used for hot and cold water piping systems in buildings, including central heating systems.

2.PPR for direct drinking of pure water supply system.

3.PPR is used for central (centralized) air conditioning system.

4.PPR is used for transporting or discharging chemical media and other industrial uses.

5.PPR is used for the heating system in the building, including floor heating, siding heating and radiation heating system.

6. PPRS are used in rural drinking water systems.

7.PPR is used in the church cold and hot water circulation water supply system.

8.PPR is used in school cold and hot water circulation water supply system.

9.PPR is used for hot and cold water circulation system in five-star hotels.

10.PPR is used for hot and cold water circulation system in government buildings.

FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.

2.What is your delievery time?
The time of delievery is around 30-45days.

3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
