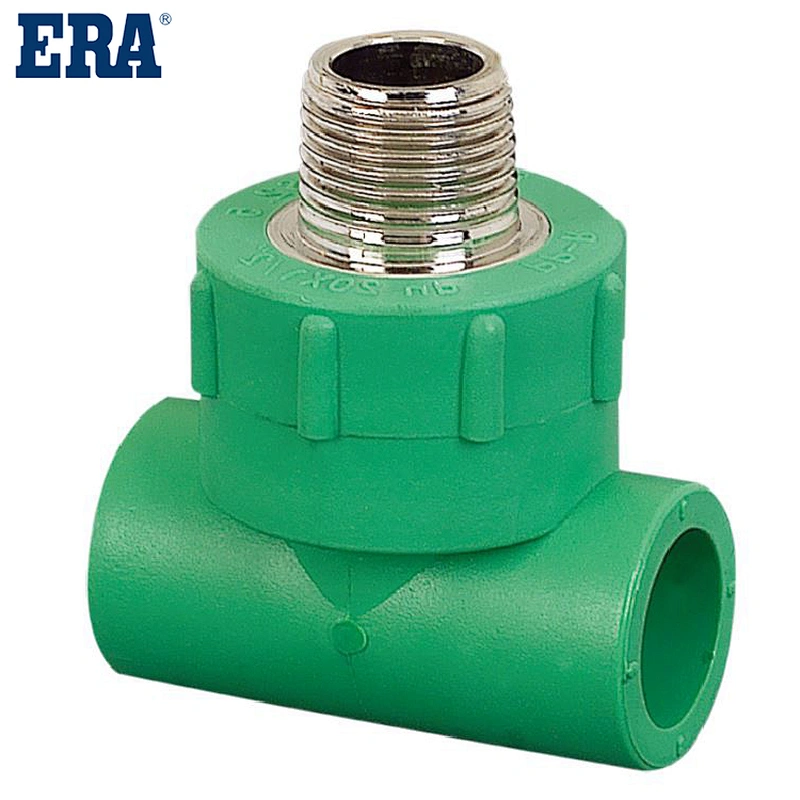

PPR MALE THREAD TEE
PPR MALE THREAD TEE
PPR MALE THREAD TEE
PPR MALE THREAD TEE
PPR MALE THREAD TEE
PPR MALE THREAD TEE
PPR MALE THREAD TEE
PPR MALE THREAD TEE
PPR MALE THREAD TEE
PPR MALE THREAD TEE
PPR MALE THREAD TEE
PPR MALE THREAD TEE
PPR MALE THREAD TEE

PPR MALE THREAD TEE

PRT04
1. Hygiene: It is a green building material without chemical action. PP-R raw material is polyolefin, and its molecule is only composed of carbon and hydrogen elements, with reliable health performance.
2. Convenient and reliable installation: notice hot melt connection is adopted, and a joint connection can be completed in a short time, which is convenient and time-saving.
3. Thermal insulation and energy conservation: the thermal conductivity coefficient is 0.24W/m · k, which is only one hundredth of that of metal pipes, and the heat loss for hot water pipes is very small.
4. Light weight, high specific strength: the specific gravity is about one of the eight of the steel pipe. The pressure test has high strength, good toughness and good impact resistance.
5. The inner and outer walls of the product are smooth, the flow resistance is small, and the energy consumption of the fluid conveying system is small.
6. Strong heat resistance: the working temperature of the conveying water is 70 ℃ for long-term use and 95 ℃ for short-term use.

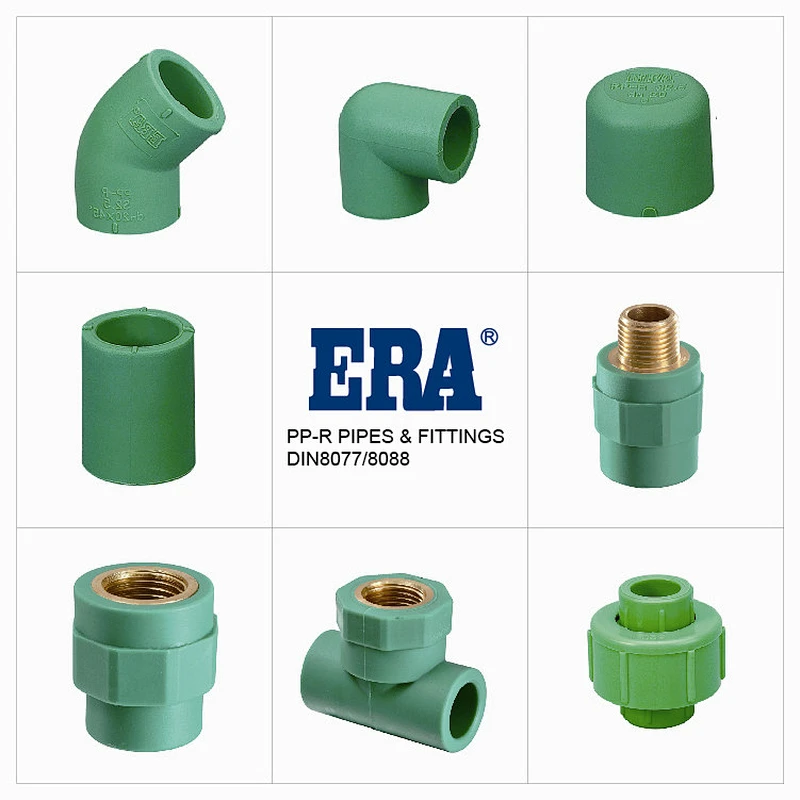

PPR DIN PIPES AND FITTINGS
ERA Piping Systems, PPR Pipe Fitting ,MALE THREAD TEE,PRT04,(DIN8077/8088) , DVGW

System：Our standard colour is green and gray however if the Qty is good we can provide customized colour also.

PPR Pressure Pipe and Fitting System

Scope：The integrated system is easy to use and install, fulfills the stringent requirements of the water sector and offers excellent value for money.

No gradual descrution of the material by any chemical which makes it Non corrosive in nature.
Advanced production management system
ERA brand PPR pipes are suitable for transferring or discharging chemical media, such as industrial piping system.
ERA PPR plumbing system can stand out against high impact and pressure, which restrict its structural damage. Like diametric contraction.

Referenced Standards：DIN 8077&DIN8078  DVGW examination certificate

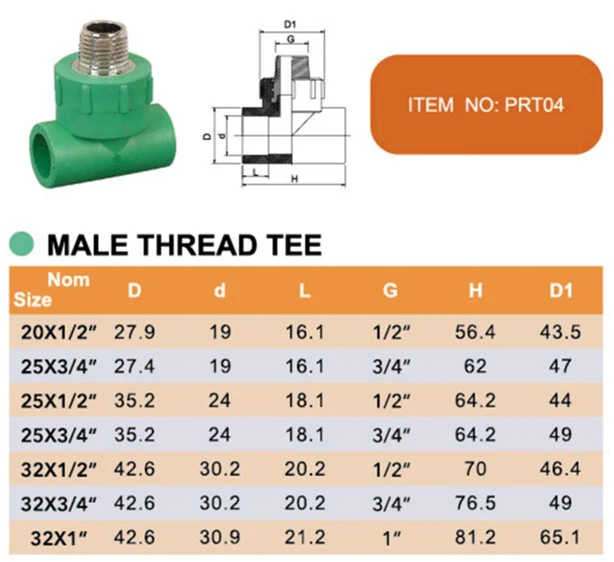

Specification：
Model NumberPRT04MaterialPPR
DescriptionPPR MALE THREAD TEESize20x1/2''-32x1''
StandardDIN8077/8088ColorGREEN、GREY
BrandERATemperatureMax 95°C / 203°F
ConnectionSocket CertificateDVGW
Main Products：

In recent years, with the increasing market demand in industries such as construction, municipal engineering, water conservancy engineering, agriculture, and industry, China's PPR pipe industry has shown a high-speed development trend. In 2009, the production volume of plastic pipelines was 5.804 million tons, a year-on-year increase of 18.9%. From January to September 2010, the production volume of plastic pipelines was 5.528 million tons, a year-on-year increase of 28.23%. At the same time, as consumers' quality requirements for environmental protection, health, and durability of products continue to increase, while the production of plastic pipelines in China continues to improve, the level of product quality continues to improve, the technological progress of the industry continues to accelerate, brand scale enterprises continue to increase, new materials and new structural varieties continue to emerge, advanced system design concepts emerge endlessly, the functionality of products is more obvious, and the application fields are further expanded.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.
2.What is your delievery time?
 The time of delievery is around 30-45days.
3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
