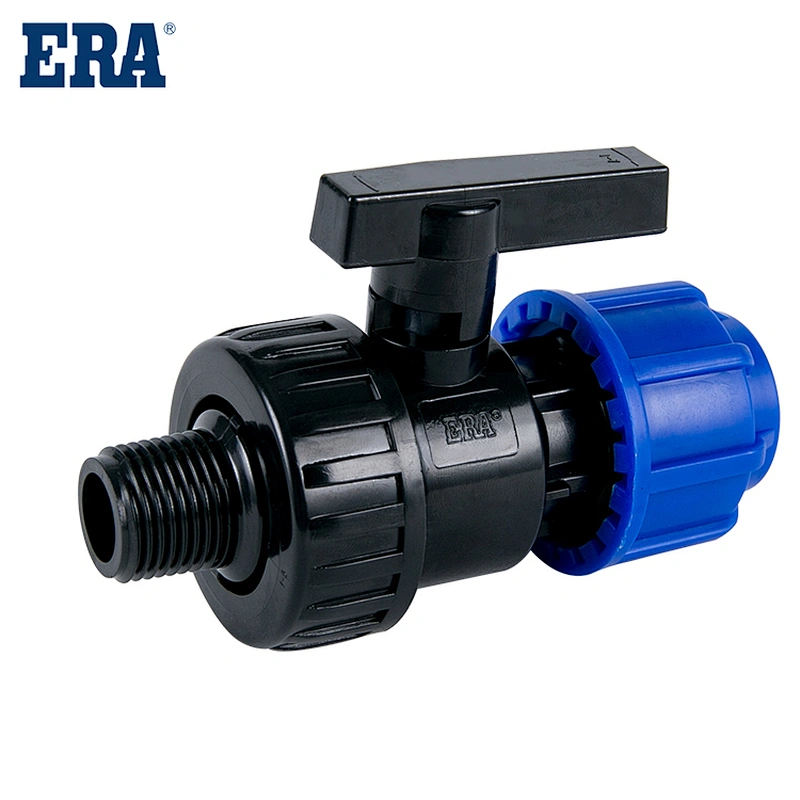

PP Female Union Valve
PP Female Union Valve
PP Female Union Valve
PP Female Union Valve
PP Female Union Valve
PP Female Union Valve
PP Female Union Valve
PP Female Union Valve
PP Female Union Valve
PP Female Union Valve
PP Female Union Valve
PP Female Union Valve
PP Female Union Valve

PP Female Union Valve

PT017
ERA Piping Systems, PP Thread Fitting , PP Female Union Valve , PT017 , (ENISO1587AS/NZS4129) , Watermark & WRAS More related products of PP THREAD FITTINGS TEE Production Process of PP THREAD FITTINGS TEE Company Introduction of PP THREAD FITTINGS TEE International Certificate of PP THREAD FITTINGS TEE
1. The appearance is compact and beautiful.
2. The body is light and easy to install.
3. Strong corrosion resistance, wide application range.
4. The material is hygienic and non-toxic.
5. Wear-resistant, easy to disassemble, simple maintenance

ERA Piping Systems, PP Compression Fitting Valves & Filters , PP Compression PP Female Union Valve , PT017 , WRAS

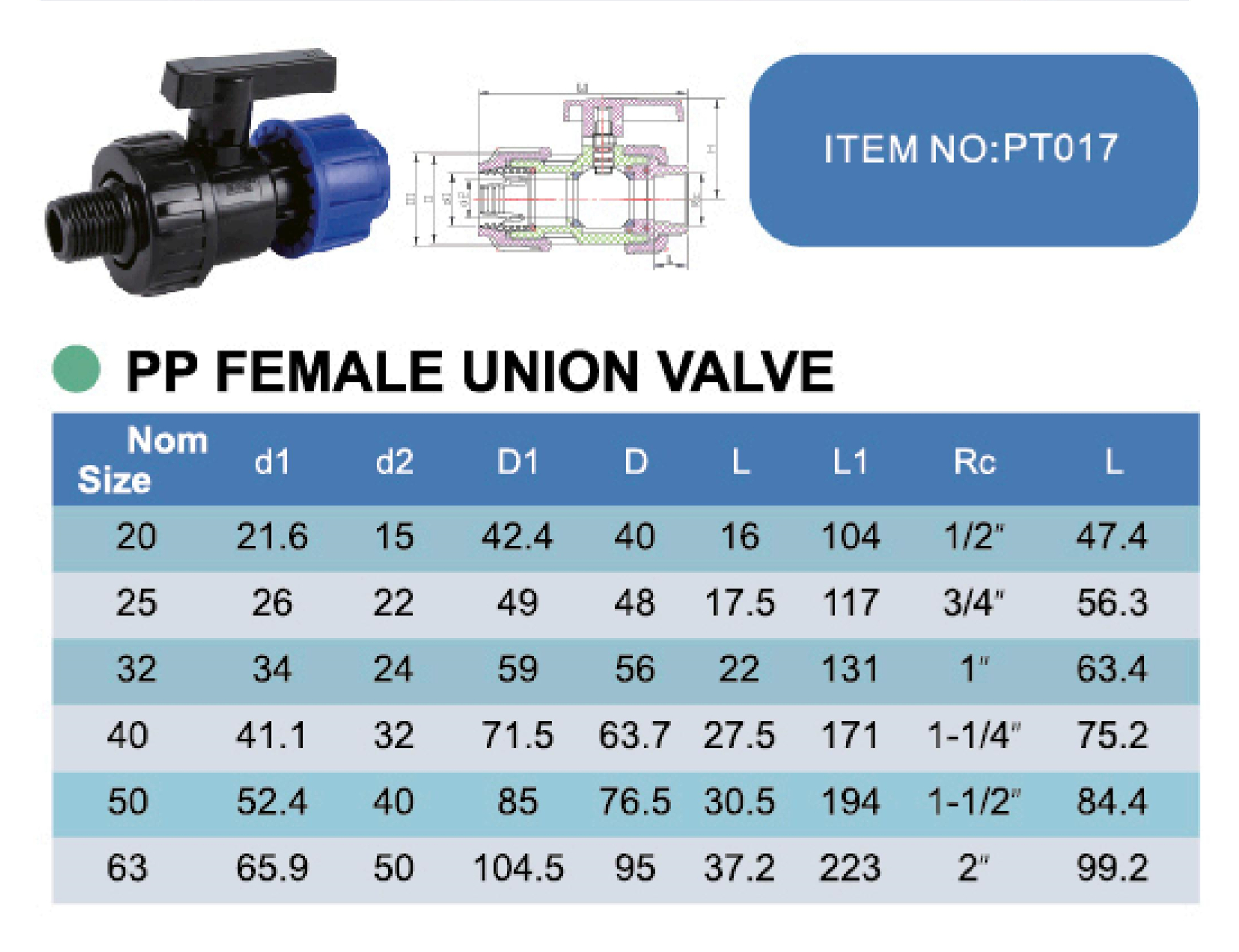

Model NumberPT017MaterialPP
DescriptionPP FEMALE UNION VALVESize20-63MM
StandardENISO15874AS/NZS4129ColorBLUE CAP   BALCK BODY
Working PressurePN16 ,16Bar, 1.6MpaTemperatureMax 60°C / 140°F
ConnectionSocket OR BS THREADCertificateCE  WRAS  WATERMARK
ERA PN16 PP Compression Reducing tee Plastic Fitting
PP compression fittings
ERA Mechanical Compression Fitting is a fitting that connect piping elements which require physical force to develop a seal orproduce alignment. There are several materials of compression fittings, such as: Steel, Brass, Plastic. The most plastic material used is PP, there are also PE or PVC compression fittings.
PP compression fittings are widely used in water supply and irrigation. ERA mechanical fittings are made by high quality PP material with UV protection, both material and fittings are approved use with drinking water. The threaded version is BSP.
The high-quality material used in the product has an application in the area of water distribution, irrigation, swimming pools, and cable conduits.
Fast & Reliable Connection: Split ring opening has been optimized to make pipe insertion even easier.
PP Compression Fittings is fabricated and designed using premium quality basic material and progressive technology.
Turning of pipes can be prevented by inner threaded during installation.
The high-quality material used in the product has an application in the area of water distribution, irrigation, swimming pools, and cable conduits.

Main Products:


The characteristics of pp plastic:

1, the heat resistance is very good, pp products can be used for a long time in the high temperature environment below 100 degrees, the temperature to about 150 degrees will not be obvious deformation.

2, the density is smaller, 0.81- 0.91g/ cm 3, is the smallest density of commonly used plastics.

3, pp material has good mechanical properties, high heat resistance, good chemical properties, almost no water absorption, and the vast majority of chemicals do not react, pure texture, non-toxicity, good electrical insulation.

4, if stored properly, there is no need to dry treatment.

5, melt adhesive back pressure available 5bar, color powder back pressure can be properly adjusted.

6, melting point is 160 to 175℃, decomposition temperature is 35O℃, but in the injection processing, the temperature can not be set more than 275℃, mold temperature 50 to 90℃, for the size requirements of high die temperature, core temperature is more than 5℃ lower than the cavity temperature.

7, injection pressure, the use of high injection pressure and pressure holding pressure, pressure holding pressure is about 80% of the injection pressure. At about 95% of the full stroke, the transfer of pressure, with a longer pressure holding time.

FAQ:
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services:
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
