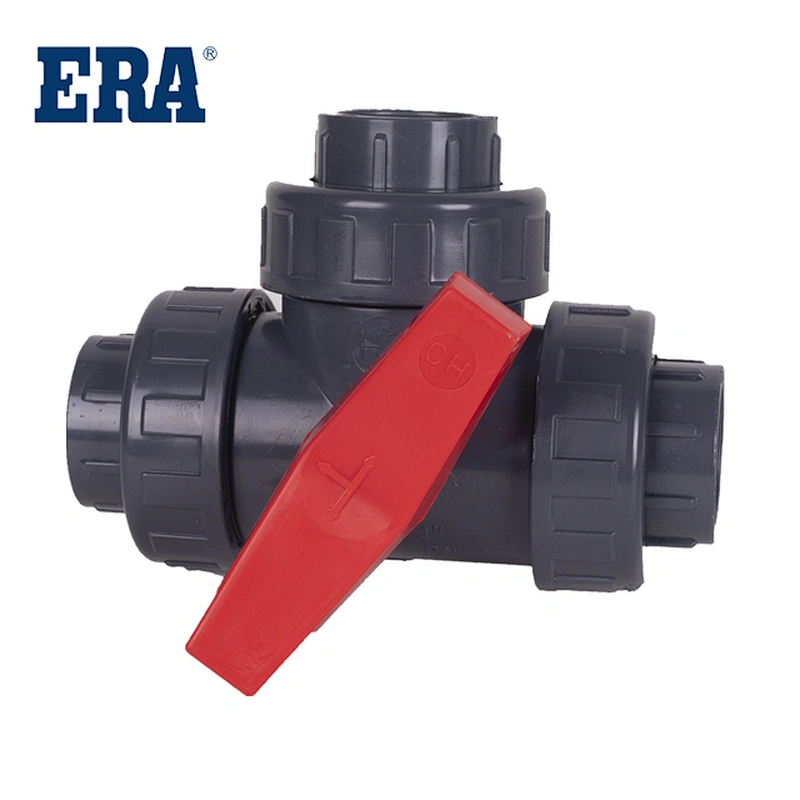

ERA Valves, PVC 3-Ways Ball Valve , UTV01 , PN10 (F1970), NSF-pw & UPC
Specification：
PVC valves shall conform to ISO 9393-1:2004. PVC valves shall be manufactured as a system and be the product of one manufacturer.
True union valves have a carrier that can be removed from the piping system when needed. This allows you to repair or replace the carrier without completely disassembling the system, saving time and money.
PVC flanges shall be manufactured from virgid PVC(polyvinyl chloride) vinyl
These discs create a tight seal when pressing two surfaces together using bolts, clamps, edges or a compressive force.

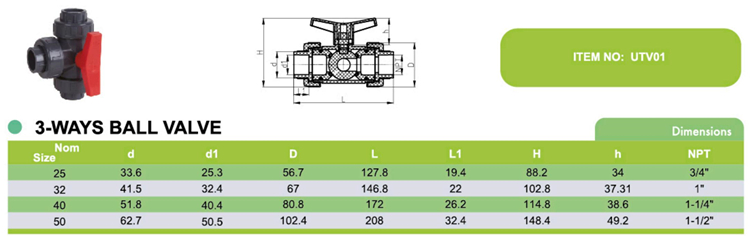

| Model Number | UTV01 | Material | PVC |
| Description | 3-Ways Ball Valve | Standard | F1970 |
| Temperature | Max 82.2℃ /180℉ | Working Pressure | PN10 ,10Bar, 1.0Mpa |
| Size | 25-50MM | Certificate | NSF/UPC |
| Connection | Socket or Thread | Color | Light Grey |
These valves are ideal for the following applications: water parks, fountains, aquariums, light-duty chemical and waste water.
This system is intended for pressure applications where the operating temperature will not exceed 140°F, and work pressure is 1.0 MPa (PN10)
PVC ball valves are mainly used to cut off or connect media in pipelines, and can also be used for fluid regulation and control. Compared to other valves, they have the following advantages. Small fluid resistance, ball valve is the smallest of all valve types, even for reduced diameter ball valves, their fluid resistance is also relatively small.
Main Product：
The main features of PVC drainage pipes are:
1. Lightweight: The specific gravity of the material is only 1/10 of cast iron, making transportation and installation easy and reducing costs.
2. Excellent chemical resistance: It has excellent acid and alkali resistance (except for strong acids and bases close to the saturation point or strong oxidizing chemicals).
3. Non-conductive: The material cannot conduct electricity and is not corroded by electrolysis or current.
4. It cannot burn and does not support combustion: there are no fire protection concerns.
5. Easy installation and low cost: cutting and connection are very simple, using PVC glue for connection, which is reliable, safe, easy to operate and low cost.
6. Durable: It has excellent weather resistance and cannot be corrupted by bacteria and fungi.
7. Small resistance and high circulation rate: the inner wall is smooth, the fluid fluidity loss is small, dirt is not easy to adhere to the smooth pipe wall, and maintenance is relatively simple and low-cost.
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
