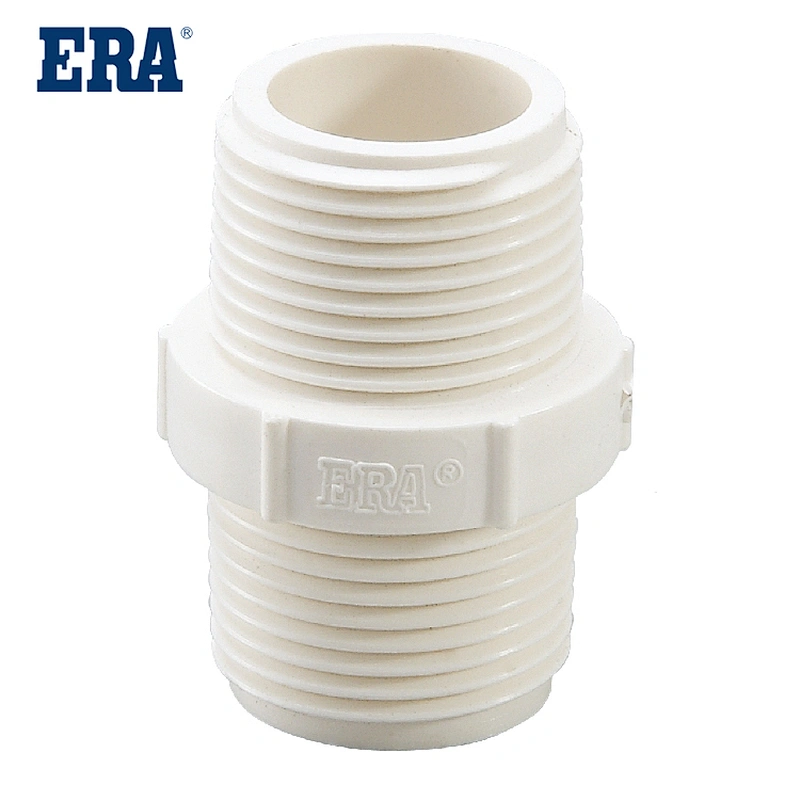

PVC FITTINGS NIPPLE M/M
PVC FITTINGS NIPPLE M/M
PVC FITTINGS NIPPLE M/M
PVC FITTINGS NIPPLE M/M
PVC FITTINGS NIPPLE M/M
PVC FITTINGS NIPPLE M/M
PVC FITTINGS NIPPLE M/M
PVC FITTINGS NIPPLE M/M
PVC FITTINGS NIPPLE M/M
PVC FITTINGS NIPPLE M/M
PVC FITTINGS NIPPLE M/M
PVC FITTINGS NIPPLE M/M
PVC FITTINGS NIPPLE M/M

PVC FITTINGS NIPPLE M/M

TPF001
ERA Piping Systems, PVC Pipe Fitting，NIPPLE M/M，TPF001，BS STANDARD, CE System: PVC BS EN 10026-2 Pressure Pipe and Fitting System Scope: This series of fittings can match the standard BS EN 10026-2 / BS-21. Specification: Pipe and fittings shall be manufactured from virgid Fields of application
1. The surface hardness and tensile strength of the pipe are excellent, and the pipeline safety factor is high.
2. It has good aging resistance and its normal service life can reach more than 50 years.
3. The pipeline has excellent corrosion resistance to inorganic acids, alkalis, and salts, and is suitable for industrial sewage discharge and transportation.
4. The friction coefficient of the pipeline is small, the water flow is smooth, it is not easy to be blocked, and the maintenance workload is small.
5. The material has a high oxygen index and is self-extinguishing.
6. The linear expansion coefficient of the pipeline is small, 0.07mm/℃, and the deformation affected by temperature is small. The thermal conductivity and elastic modulus are small, and compared with cast iron drainage pipes, they have excellent freezing resistance.
7. Bonding can be used to connect pipes and pipe fittings. The construction method is simple, the operation is convenient, and the installation efficiency is high.
8. Good water tightness: PVC-U pipes have good water tightness regardless of whether they are connected by bonding or rubber rings.

ERA Piping Systems, PVC Pipe Fitting，NIPPLE M/M，TPF001，BS STANDARD, CE

System：PVC BS EN 10026-2 Pressure Pipe and Fitting System

Scope：This series of fittings can match the standard BS EN 10026-2 / BS-21.

Specification：Pipe and fittings shall be manufactured from virgid

Fields of application：Piping networks for water supply in building.

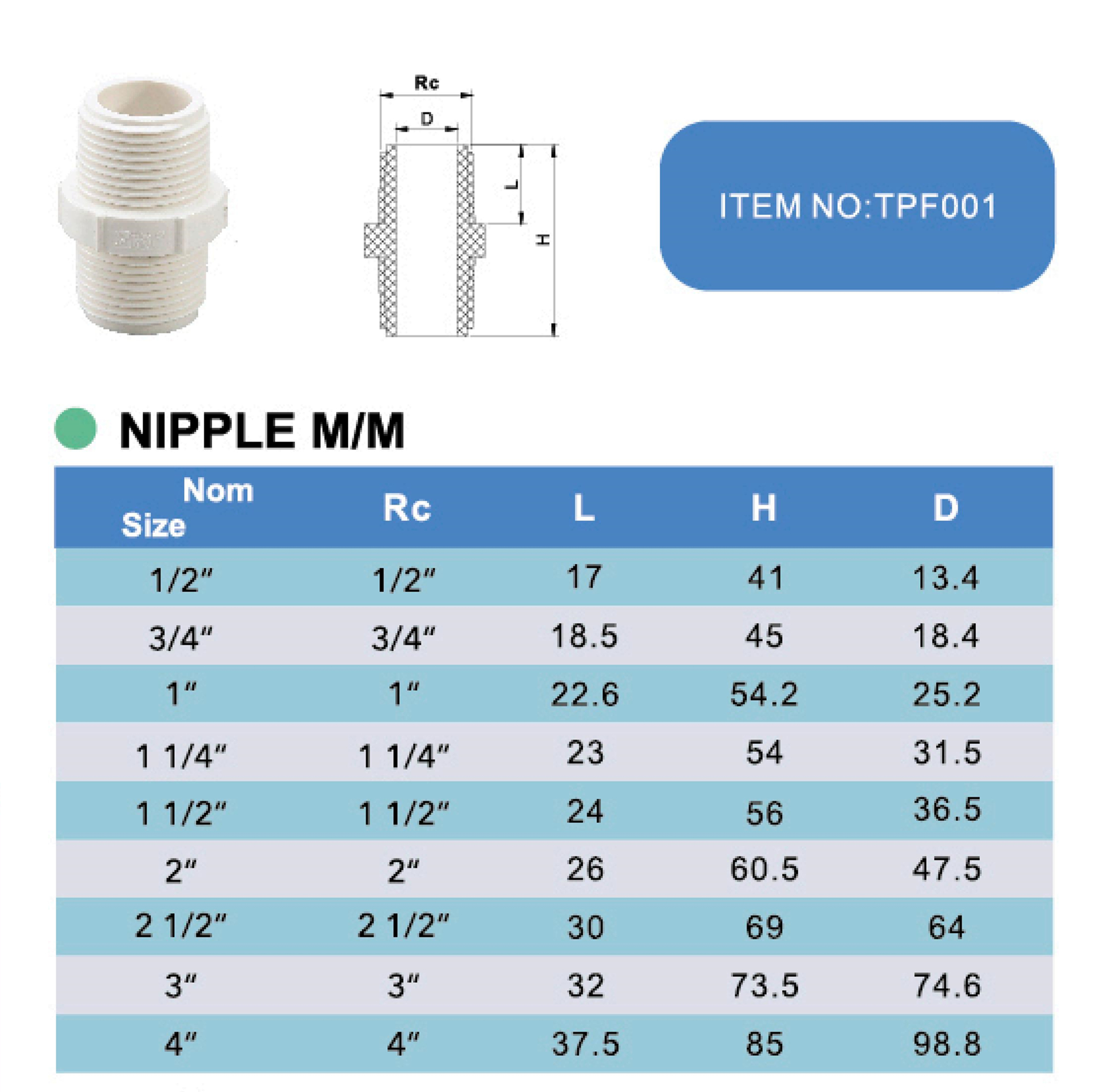

Model NumberTPF001MaterialPVC
Description       NIPPLE M/MStandardBS EN10026-2/BS-21
TemperatureMax 60°C /140°FWorking Pressure
PN10，10Bar，
1.0Mpa
Size1/2''-4''CertificateCE
ConnectionBS threadColor
white
Main Products：

PVC, short for Polyvinylchlorid, is a material consisting mainly of polyvinyl chloride with other ingredients added to enhance its heat resistance, toughness and ductility. The top layer of this surface film is lacquer, the main component in the middle is PVC, the bottom layer is coated with adhesive.

It is one of the most popular and widely used synthetic materials in the world today. It is the second most used synthetic material in the world. According to statistics, only in 1995 a year, the production of PVC in Europe is about 5 million tons, and its consumption is 5.3 million tons. In Germany, PVC production and consumption average 1.4 million tons.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
