UCB01

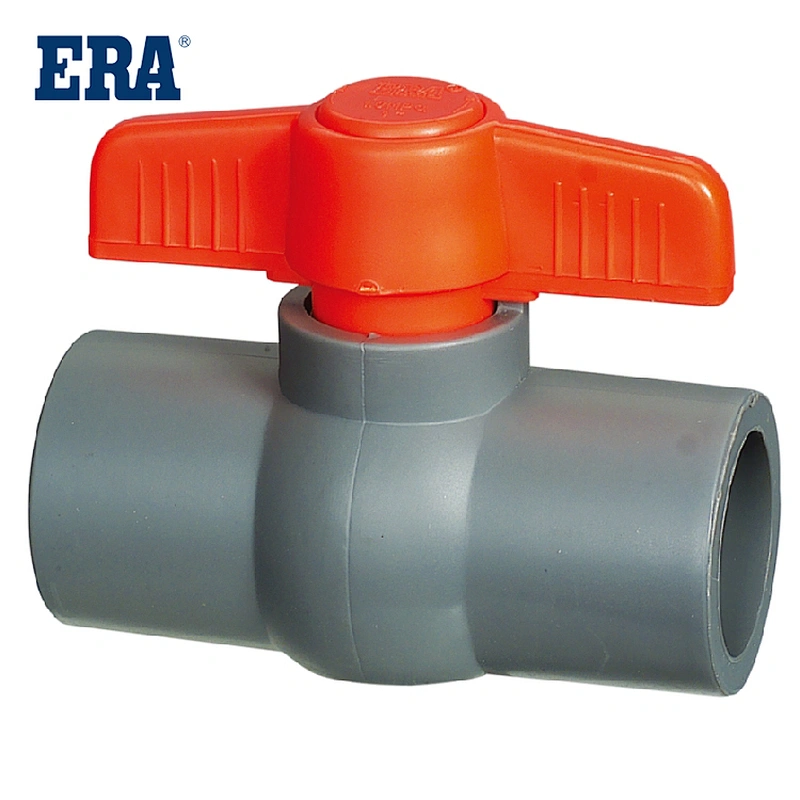

ERA Valves, PVC Compact Ball Valve, UCB01, PN10 (F1970), NSF-pw & UPC System: Full port allowing maximum flow and minimum pressure drop or turbulence Easy turn handle means no pliers or breakage while turning on/off, and it's replaceable!
Product advantages: The valve body is light in weight, has strong corrosion resistance, has a compact and beautiful appearance, is light in weight and is easy to install, has strong corrosion resistance, has a wide range of applications, the material is hygienic and non-toxic, wear-resistant, easy to disassemble, and is simple and easy to maintain. . By introducing the raw material requirements, design requirements, manufacturing requirements, performance requirements, test methods, system application requirements and the relationship between operating pressure and temperature in the international standards for plastic PVC valve products and test methods, you can understand the needs for plastic PVC valves Basic quality control requirements such as sealing test, torque test and fatigue strength test.

System：PVC VALVE System ,PLASTIC VALVES AND FITTINGS
Scope：This specification covers PVC ball valve for pressure applications. This system is Intended for pressure applications where the operating temperature will not exceed 140°F, and work pressure is 1.0 MPa (PN10)

Please note - as temperature increases, working pressure decreases, the optimal working pressure for PVC valves is 150 psi at 73°F (22°C).
These  ball valve are ideal for the following applications:  water parks, fountains, aquariums, light-duty chemical and waste water.

Specification：PVC VALVES shall be manufactured from virgid
PVC(polyvinyl chloride) vinyl compounds.
PVC VALVES shall conform to ISO 9393-1:2004. PVC VALVES shall be manufactured as a system and be the product of one manufacturer.

Characterisitic：The valve body has light weight, strong corrosion resistance, compact and beautiful appearance, light weight and easy installation, strong corrosion resistance, wide application range, sanitary and non-toxic material, wear resistance, easy disassembly, simple and easy maintenance.
Referenced Standards：ISO 9393-1:2004.

Products Description：

Model Number:

UCB01

Material

PVC

Description:

COMPACT BALL VALVE

Standard

F1970

Temperature:

Max 82.2℃ /180℉

Working Pressure:

PN10 ,10Bar, 1.0Mpa

Size:

1/2''-6''

Certificate:

NSF/UPC

Connection:

Socket or Thread

Color:

Light Grey

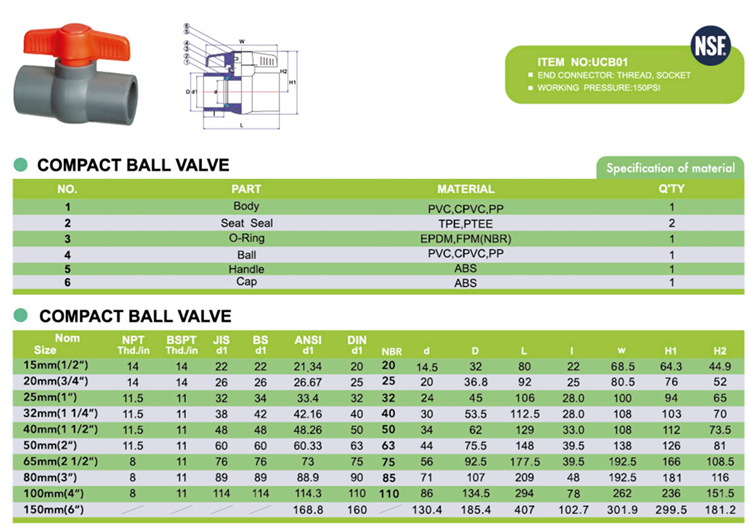

PVC COMPACT BALL VALE ball valve

Main Products:

Due to the advantages of plastic PVC valves such as light weight, corrosion resistance, no adsorption of scale, integration with plastic pipelines, and long service life, plastic PVC valves are widely used in water supply (especially hot water and heating) and other industrial fluids. In plastic piping systems, its application advantages are unmatched by other valves. At present, in the production and application of domestic plastic PVC valves, there is no reliable method to control them, resulting in uneven quality of plastic PVC valve products for water supply and other industrial fluids, resulting in lax closing and leakage in engineering applications. Seriously, there is a saying that plastic PVC valves cannot be used, which affects the overall development of plastic pipe applications. my country's national standards for plastic PVC valves are in the process of being formulated, and their product standards and method standards are formulated based on international standards. The main types of plastic PVC valves on the market include plastic ball valves, plastic butterfly valves, plastic check valves, plastic diaphragm valves, plastic gate valves and plastic stop valves. The main structural forms include two-way, three-way and multi-way valves. The main raw materials are ABS , PVC-U, PVC-C, PPH, PE, PP and PVDF, etc.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
Related Products
Plastic/PVC professional factory supply double union/True Union Ball Valve

Plastic/PVC professional factory supply double union/True Union Ball Valve

ERA Valves, PVC TRUE UNION BALL VALVE, UTB01, PN10 (F1970), NSF-pw & UPC System: Ball valve has dual o-ring stem design. May be installed on Sch. 40 or 80 PVC pipe These valves are ideal for the following applications: water parks, fountains, aquariums, light-duty chemical and waste water PVC ball valve is mainly used to cut off or connect the medium in the pipeline, and can also be used to regulate and control the fluid. Compared with other valves, it has the following advantages. 1. Small fluid resistance. Ball valves have the smallest fluid resistance among all valve types. Even if they are reduced diameter ball valves, their fluid resistance is quite small. The UPVC ball valve is a new material ball valve product developed according to the needs of various corrosive pipeline fluids. Product advantages: The valve body is light in weight, has strong corrosion resistance, has a compact and beautiful appearance, is light in weight and is easy to install, has strong corrosion resistance, has a wide range of applications, the material is hygienic and non-toxic, wear-resistant, easy to disassemble, and is simple and easy to maintain.

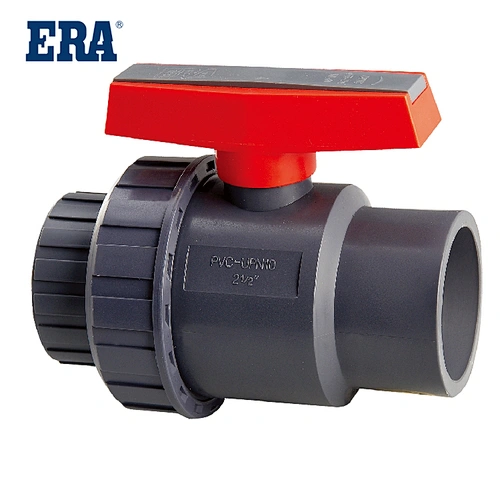

PVC Single Union Ball Valve
