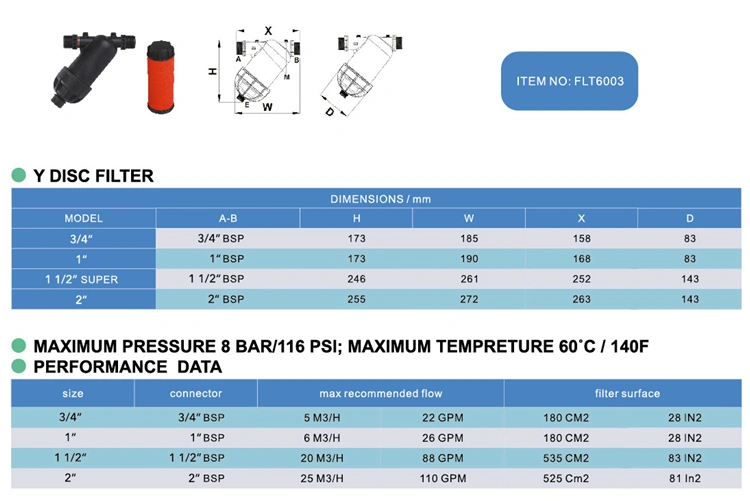

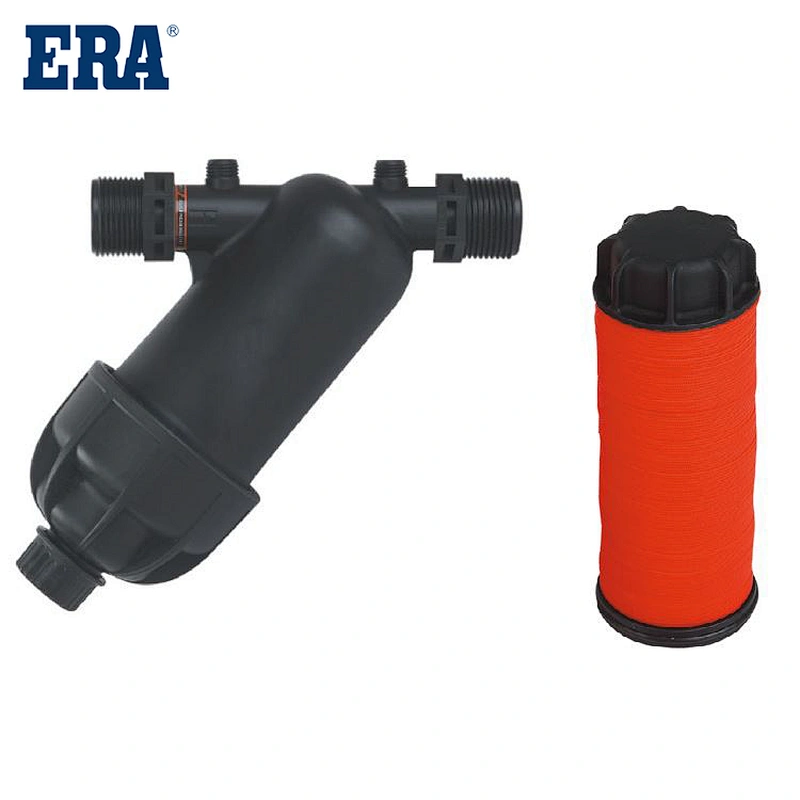

ERA Piping Systems, PP Compression Fitting Valves & Filters , PP Compression Y Disc Filter , FLT6003 , WRAS

Material：PP
Size range：3/4''--2''
Working Pressure：PN16
Color：Black, Light blue, Dark bule
Easy installation.

ERA PN16 PP Compression Reducing tee Plastic Fitting
PP compression fittings
ERA Mechanical Compression Fitting is a fitting that connect piping elements which require physical force to develop a seal or
produce alignment. There are several materials of compression fittings, such as: Steel, Brass, Plastic. The most plastic material
used is PP, there are also PE or PVC compression fittings.
PP compression fittings are widely used in water supply and irrigation. ERA mechanical fittings are made by high quality PP
material with UV protection, both material and fittings are approved use with drinking water. The threaded version is BSP.

Fields of application:
Piping networks for water treatment systems.
Piping networks for irrigation of gardening or farming.
Piping networks for underground water supply system of living areas or factories



Main Products：

Molding characteristics 1. Crystallizing material, hygroscopic property is small, easy to melt body rupture, long-term contact with hot metal is easy to decompose. Good liquidity, but shrinkage range and shrinkage value is large, easy to occur shrinkage hole. 3. The cooling speed is fast, the pouring system and cooling system should dissipate heat slowly, and pay attention to control the forming temperature. When the material temperature is low temperature and high pressure, it is easy to orientation. When the mold temperature is below 50 degrees, the plastic parts are not smooth, easy to produce poor welding, flow marks, and easy to warp and deformation above 90 degrees. Plastic wall thickness must be uniform, avoid lack of glue, sharp corners, to prevent stress concentration. Process characteristics PP has a good flow at melting temperature, molding performance is good, PP in processing has two characteristics: one: the viscosity of PP melt with the increase of shear rate and there is a significant decline (less affected by temperature); Second, the degree of molecular orientation is high and the shrinkage rate is large. The processing temperature of PP is better at 200-300℃, and it has good thermal stability (decomposition temperature is 310℃), but at high temperature (270-300℃), it will be degraded for a long time in the barrel. As the viscosity of PP decreases significantly with the increase of shear rate, increasing injection pressure and injection speed will improve its fluidity and improve shrinkage deformation and sag. Mold temperature should be controlled in the range of 30-50℃. PP melt can pass through very narrow mold gaps and appear. PP in the melting process, to absorb a lot of melting heat (specific heat is larger), the product is hot after the mold. PP material processing without drying, PP shrinkage and crystallinity is lower than PE.
