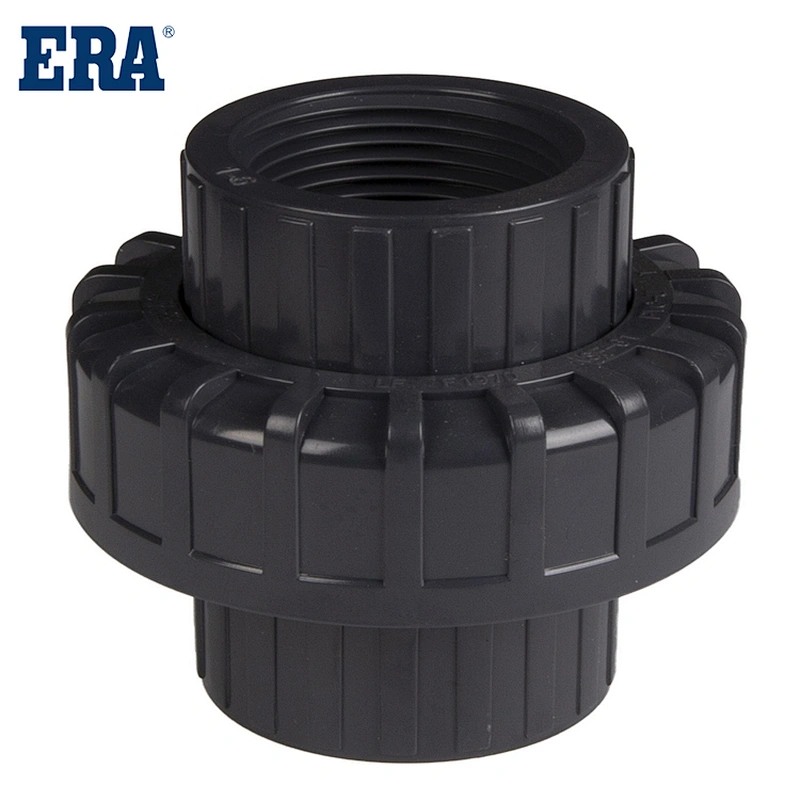

ERA Piping Systems, PVC Pressure Pipe, PVC SCH80 Union , UU001, Schedule 80 (ASTM D2467), NSF-pw & UPC
Specification：
PVC Schedule 80 Fittings, ASTM D2467, NSF/ANSI Standard 14, NSF/ANSI Standard 61, 2,000 psi at 73F, Maximum service temperature 140F, Socket connection.
Conforms to ASTM D-1784 Class 12454-B, formerly Type 1, Grade 1. Joined by solvent cementing, threading or flanging. Maximum service temperature 140°F. NSF approved. Meets all applicable ASTM standards. This Industrial PLUS brand exhibits exceptional quality you have come to expect, making it the preferred choice of fabricators and custom houses.
Pipe and fittings shall be manufactured from virgid
PVC(polyvinyl chloride) vinyl compounds.
Advantage：
horter lengths offer convenience to customers
Higher pressure
Approved for pressure and DWV applications

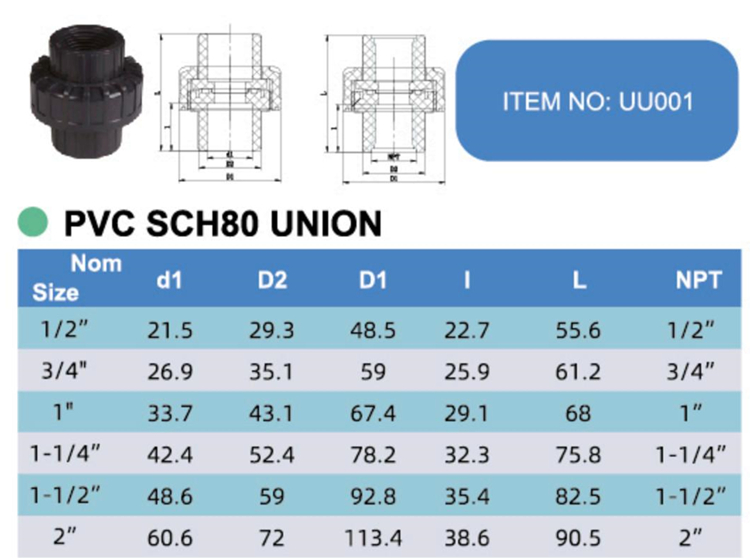

| Model Number | UU001 | Material | PVC |
| Description | PVC SCH80 UNION | Standard | SCH80 |
| Temperature | Max 60°C / 140°F | Working Pressure | PN16,16Bar, 1.6Mpa |
| Size | 1/2''-2'' | Certificate | NSF UPC |
| Connection | SOCKET OR THREAD | Color | BLUE GREY WHITE |

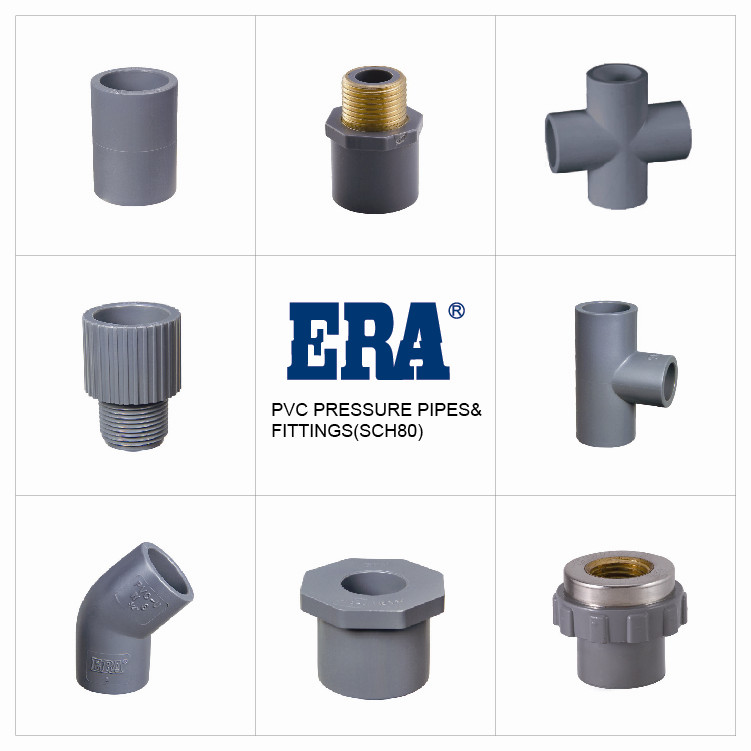

Main Products：
PVC pipe features
1. Pressure resistance: PVC pipes have good water pressure resistance, external pressure resistance, and impact resistance. They are suitable for piping projects under various conditions at normal temperatures.
2. Excellent corrosion resistance and chemical resistance: PVC pipes have excellent acid resistance, alkali resistance, and corrosion resistance. They are very suitable for chemical industry, wastewater drainage, sanitary sewers, etc.
3. Good electrical insulation: PVC pipe has excellent electrical insulation and is suitable for conduits of wires and cables. It can be widely used in telecommunications, power piping and wire piping in buildings.
4. Long life: PVC pipes have a world-recognized service life of more than 50 years.
5. Good water-tightness: The joints of PVC pipes, whether using loop sockets or TS socket joints, have good water-tightness. Even if the water supply pipes have water pressure for many years, there will be no risk of leakage.
6. Small fluid resistance and large flow: The wall of PVC pipe is very smooth and has very little resistance to fluid. Its roughness coefficient is only 0.009, which is lower than other pipes. Under the same diameter, the flow is large and it does not adhere. Limescale.
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
