ERA Piping Systems, PVC Pipe Fitting ,Male Threaded Elbow , US4E05, Schedule 40 (ASTM D2466) , NSF-pw & UPC

Specification：
Solvent cement joints shall be made in a two-step process with primer manufactured for
thermoplastic piping systems and solvent cement conforming to ASTM D 2564.

All PVC Schedule 40 fittings shall meet, or exceed, the dimensional and tolerance requirements of ASTM D2466
All PVC Schedule 40 threaded fittings shall meet, or exceed, the dimensional and tolerance requirements of ASTM D2464.
The products covered by this specification are intended for use with the distribution of pressurized liquids only, which are chemically compatible with the piping materials
PVC is highly resistant to acids, alkalis, alcohols, and many other corrosive materials.
This specification covers PVC Schedule 40 pipe and solvent Cement fittings for pressure applications.This system is Intended for pressure applications where the operating temperature will not exceed 140°F.
Never test with or transport/store compressed air or gas in PVC pipe or fittings. Doing so can result in xplosive failures and cause severe injury or death.



Main Products：

(1) High pressure resistance and corrosion resistance. Due to its material characteristics, PVC pipes have strong pressure resistance, can prevent corrosion by acidic and alkaline substances, and have good waterproof properties.
(2) Excellent physical properties. PVC pipes use high-quality PVC modified materials, which have important physical properties such as good flexibility, good flame retardant properties, good insulation properties, smooth inner walls, and low friction coefficients. Not only that, the service life of PVC pipes can reach 50 years. Years or more, long service life, economical and durable.
(3) Complete specifications for easy engineering operation. PVC pipe products have various combinations, beautiful appearance, and complete specifications. They can be matched with optical cables or cables of different diameters, can be freely connected and combined with pipes of different materials, and can be combined with corresponding interfaces, special glue, etc. The accessories are matched to facilitate the construction operations of the project.
(4) Save laying costs. PVC pipes can save laying costs, and because they are not easily lost during transportation and installation, there is no need to use special curing auxiliary materials. The laying costs are low and the economy is high.

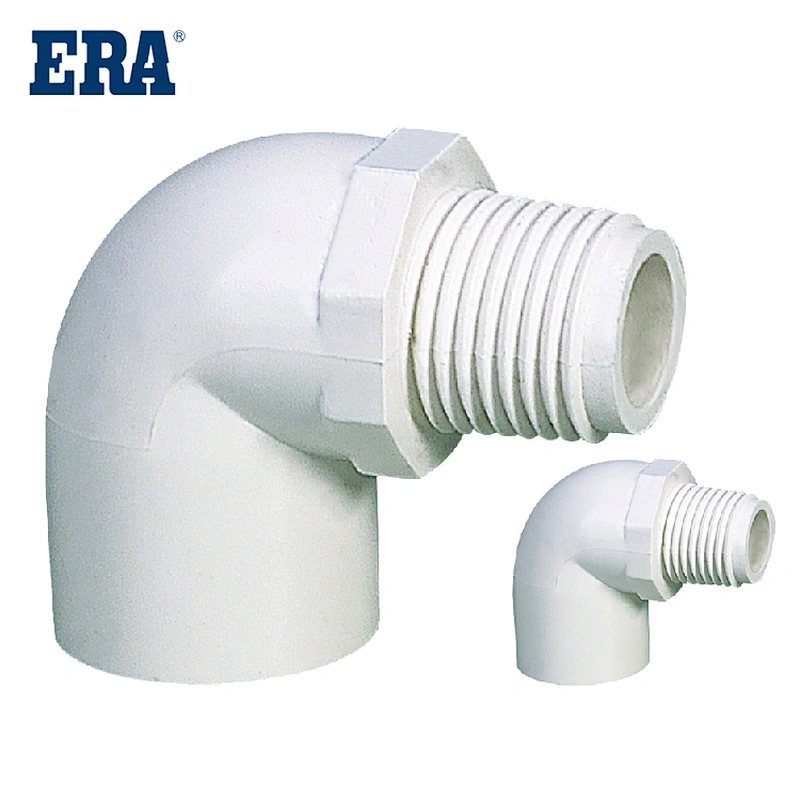

A PVC SCH40 ASTM D2466 NSF-certified male threaded 90-degree elbow is a specific type of PVC pipe fitting designed for use in pressurized water systems. Here's what each part of the description means:
PVC: Polyvinyl Chloride, a type of plastic commonly used in piping systems due to its durability, corrosion resistance, and affordability.
SCH40: A standard thickness classification for PVC pipes and fittings, indicating that the material meets the Schedule 40 requirements, which specifies the wall thickness and pressure rating of the pipe or fitting.
ASTM D2466: A specific ASTM (American Society for Testing and Materials) standard that sets the requirements for PVC pipe fittings, including dimensions, tolerances, and performance criteria.
NSF Certificate: Indicates that the product has been certified by NSF International, an independent organization that tests and certifies products for compliance with health and safety standards.
Male threaded: Refers to the type of connection on one end of the elbow, designed to be screwed into a female threaded fitting or pipe.
90-degree elbow: Describes the angle of the elbow, which is a right angle (90 degrees), used to change the direction of flow in a piping system.
This type of fitting is commonly used in plumbing systems for residential, commercial, and industrial applications where a change in direction is needed in pressurized water lines. The NSF certification ensures that the fitting meets stringent standards for safety and performance in potable water applications.
