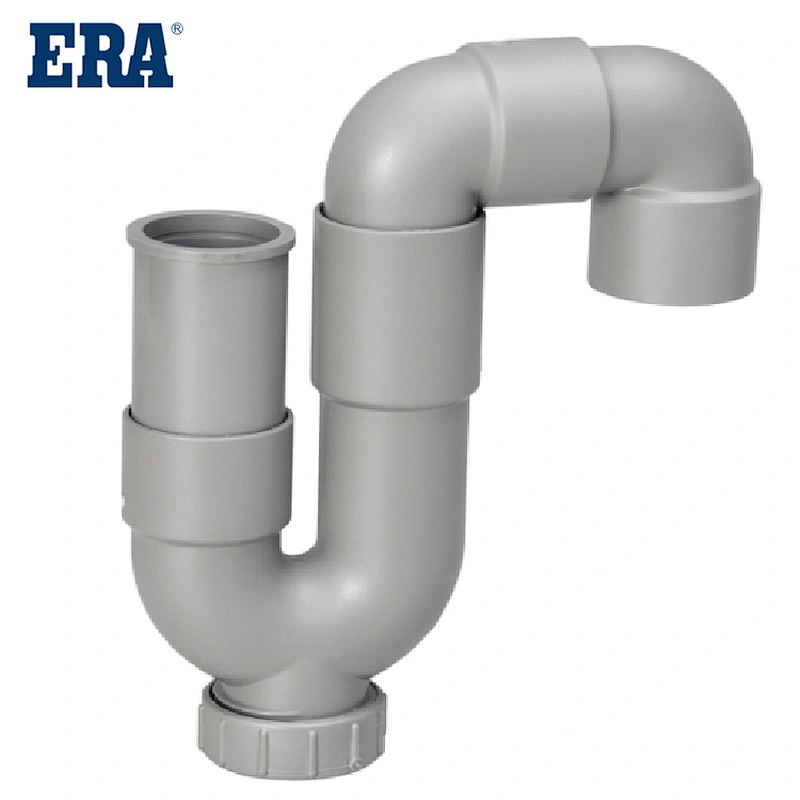

PVC Sanitary Solvent Cement s-trap
PVC Sanitary Solvent Cement s-trap
PVC Sanitary Solvent Cement s-trap
PVC Sanitary Solvent Cement s-trap
PVC Sanitary Solvent Cement s-trap
PVC Sanitary Solvent Cement s-trap
PVC Sanitary Solvent Cement s-trap
PVC Sanitary Solvent Cement s-trap
PVC Sanitary Solvent Cement s-trap
PVC Sanitary Solvent Cement s-trap
PVC Sanitary Solvent Cement s-trap

PVC Sanitary Solvent Cement s-trap

UDTS01
The surface hardness and tensile strength of the pipe are excellent, and the safety factor of the pipe is high. Good aging resistance, normal service life can reach more than 50 years. The pipes and pipe fittings can be connected by bonding. The construction method is simple, the operation is convenient, and the installation efficiency is high.Low price, convenient transportation and construction, long service life, so the overall cost is low. It is proved by the dissolution test that it does not affect the water quality and is suitable for large-scale popularization and application.
PVC DRAINAGE FITTINGS
ERA Piping Systems, PVC Sanitary Solvent Cement, II S-TRAP, UDTS01, (ISO3633), CE

System：

High flow capacity, corrosion resistance, low installation costs, long service time.

Plastics piping systems for soil and waste discharge (low and high temperature) inside buildings

PVC Sanitary Solvent Cement Fitting System

Plastics piping systems for soil and waste discharge (low and high temperature) inside buildings

High flow capacity, corrosion resistance, low installation costs, long service time.

PVC is lightweight and easy to install. They require no special tools for cutting, and be installed with solvent cementing, threading, flanging, and roll-grooved joining.

Scope：

Solvent Weld Fittings include tees, elbows, adapters, repair couplings, and reducer couplings manufactured from durable PVC

This specification covers PVC Sanitary Solvent Cement for Drainage applications. This system is Intended for drainage applications where the operating temperature will not exceed 140°F.

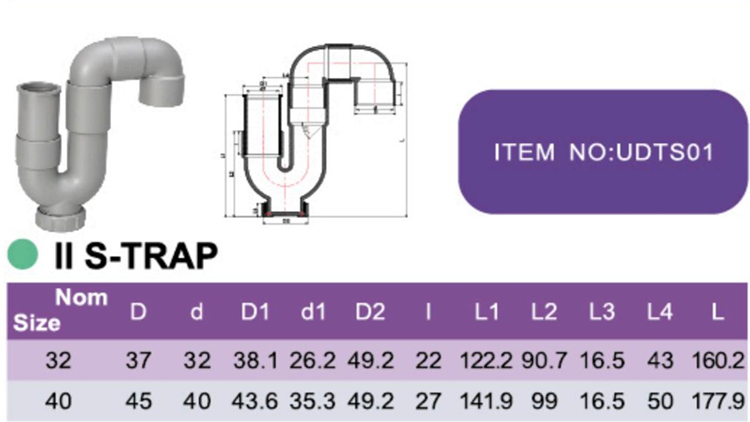

Specification：
Model NumberUDTS01MaterialPVC
DescriptionPVC DRAINAGE FITTINGS II S-TRAPSize32、40MM
StandardISO3633ColorGrey
Working PressurePN16,16 Bar,1.6MpaTemperatureMax 60°C / 140°F
ConnectionSolvent CementCertificateCE

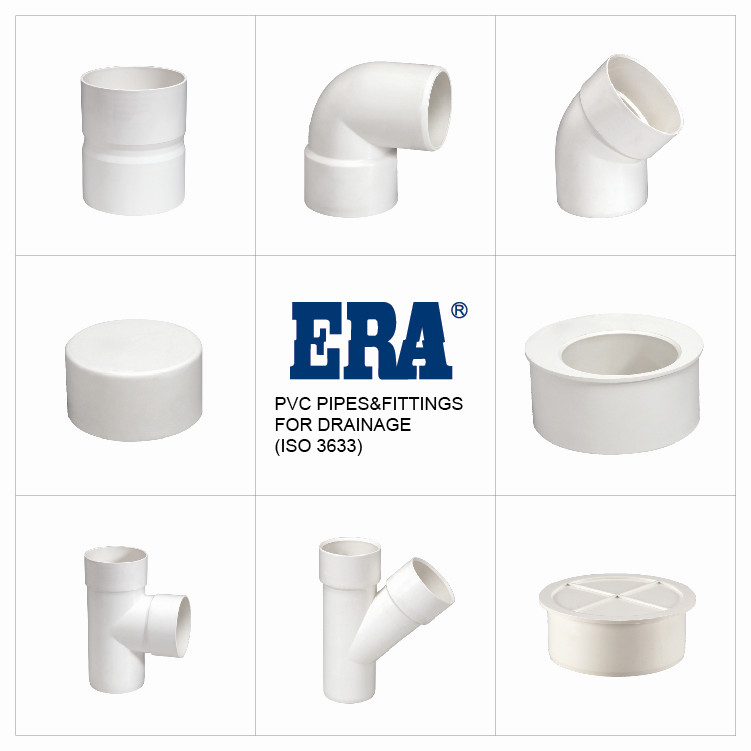

Main Products：
PVC can be added with many plasticizers, and after adding, it can be made into soft PVC. The so-called hard PVC is the polyvinyl chloride PVC plastic with less than 5 kg of plasticizer added in 100 kg of PVC resin powder. The amount of plasticizer added is more than 5 kg is called semi-hard PVC, more than 25 kg is called soft PVC, such as ordinary wire sheaths, disposable infusion tubes, some inflatable toys, soft door curtains, and the transparent plastic table mats called soft glass sold in supermarkets All are soft PVC. PVC can also be arbitrarily colored to make various transparent and opaque colored products, so PVC is currently the most widely used plastic, and the price is only about 1/2 to 1/4 of PC.

Advantages of pvc drain pipe
1. PVC drainage pipes have good tensile and compressive strength, but their flexibility is not as good as other plastic pipes.
2. The pipe wall of PVC drainage pipe is very smooth, so the resistance to water flow is very small. Its water transport capacity is 20% higher than that of cast iron pipes of the same diameter, and the water transport effect is very good.
3. Moreover, PVC drainage pipes are also very corrosion-resistant and chemical-resistant. They have good acid and alkali resistance, are not affected by moisture and soil pH, and have a long service life.
4. PVC drainage pipes also have good water tightness. This type of pipe can maintain good water tightness regardless of whether it is connected by bonding or rubber rings.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
