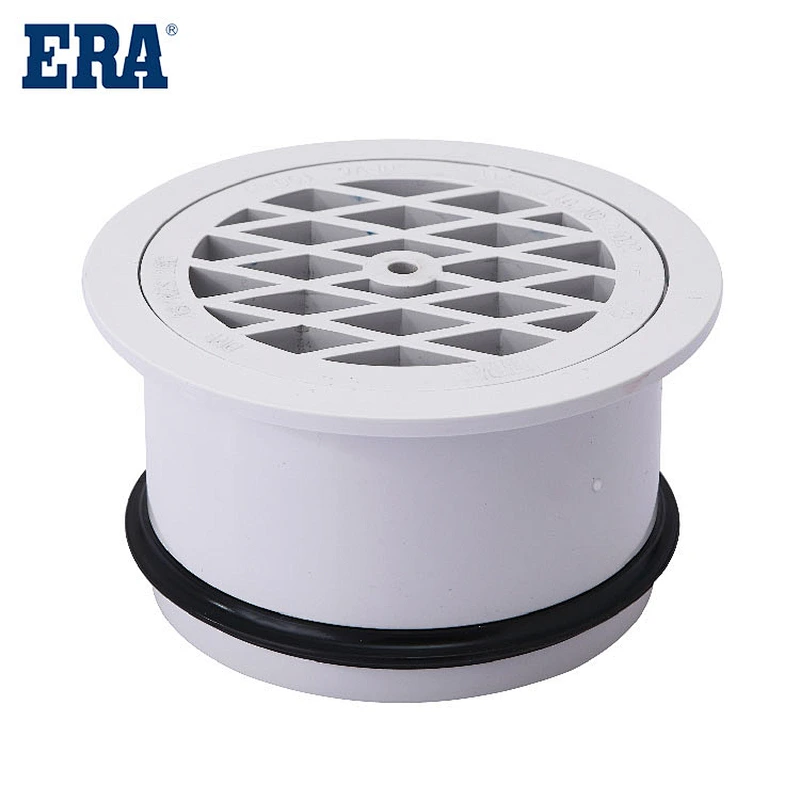

PVC ROUND FLOOR DRAIN
PVC ROUND FLOOR DRAIN
PVC ROUND FLOOR DRAIN
PVC ROUND FLOOR DRAIN
PVC ROUND FLOOR DRAIN
PVC ROUND FLOOR DRAIN
PVC ROUND FLOOR DRAIN
PVC ROUND FLOOR DRAIN
PVC ROUND FLOOR DRAIN
PVC ROUND FLOOR DRAIN
PVC ROUND FLOOR DRAIN

PVC ROUND FLOOR DRAIN

AUDD03
1. Long service life.
PVC-U pipe is a thermoplastic product with stable chemical properties, strong corrosion resistance, aging resistance and wear resistance. The drainage pipe can be used normally for 50 years.
2. Good drainage performance.
The fluid resistance of PVC-U drainage pipe is small, and the flow rate is increased by 30% compared with that of cast iron pipe of the same diameter.
3. Light and durable, easy to install.
As the drainage pipe is installed with hemp, interface material, dam mouth and maintenance, the construction process is heavy and takes a long time. The PVC-U drainage pipe is light and adopts socket type adhesive interface, which greatly reduces the work task and saves time and labor.
4. Affordable and beautiful.
The market price of PVC-U drainage pipe is 20% cheaper than that of cast iron drainage pipe, which greatly reduces the construction cost and the transportation cost. The white outer wall does not need anti-corrosion treatment, which saves maintenance and care costs and is easy to clean.
PVC DWV FITTINGS AS/NZS1260
ERA Piping Systems, PVC DWV FITTINGS ,ROUND FLOOR DRAIN ,AUDD03, AS/NZS1260 , Watermark

System：PVC pipe system
Scope：Drainage pipe system can be used for road drains, agricultural, railway, airport, construction and public green. PVC has the smoothest flow surface of any piping material.The pipe will not be susceptible to blockages and will maintain a high flow capacity over the life of the pipeline.
Specification：A plastic sewer system costs less to operate and maintain because it has greater flow capacity per given size and fewer joints. The economic life cycle of a PVC sewer system is projected at more than 50 years.
Referenced Standards：AS/NZS 1260
Certificate: Watermark

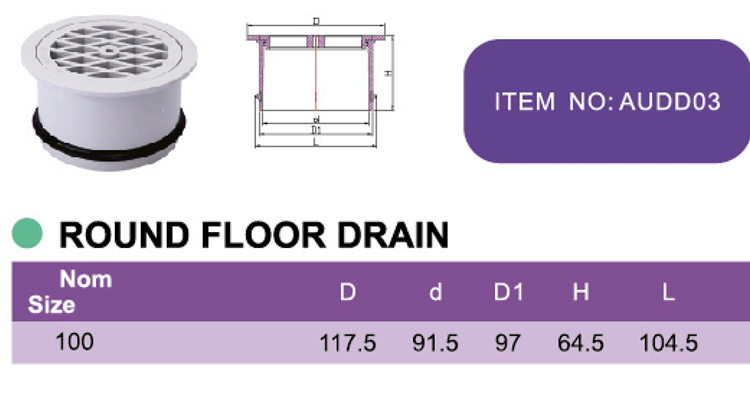

Specification：
Model NumberAUDD03MaterialPVC
DescriptionROUND FLOOR DRAINSize100MM
StandardAS/NZS1260ColorWhite
BrandERATemperature        Max 60℃  / 140°F
ConnectionSocket CertificateWatermark
Main Products：
The main features of PVC drain pipes include:
Chemical corrosion resistance: PVC drainage pipes can resist corrosion from inorganic acids, alkalis, and salts, so they perform well in industrial wastewater treatment and discharge. 1
Wear resistance: Due to its surface hardness and tensile strength properties, PVC drain pipes have high durability and are not easily deformed or worn. 123
Not easy to deform: PVC drainage pipes can maintain dimensional stability even at high temperatures and are not easily deformed due to temperature changes.
Easy installation: PVC drainage pipes can be connected in a variety of ways, such as bonding and rubber ring connections, making construction simple and easy to operate. 14
Long service life: Under normal use conditions, the service life of PVC drain pipes can reach 50 years or even longer. 13
Simple maintenance: PVC drainage pipes do not require excessive maintenance work, reducing maintenance costs and time. 2
Self-extinguishing property: PVC material has a high oxygen index, making it self-extinguishing and contributing to fire safety.
Low friction coefficient: The friction coefficient of PVC drain pipe is small, which is beneficial to the smooth flow of fluid and reduces the risk of blockage.
Small expansion coefficient: The expansion coefficient of PVC pipe is relatively low, and it is not prone to brittle cracking even in low temperature environments, improving its anti-freezing performance.
Good water tightness: Whether connected by bonding or rubber rings, PVC drain pipes can maintain good water tightness to ensure no water leakage.

FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.

PVC profile products have gone through a period of introduction and rapid development, which can be defined as around the 1980s to the mid-1990s and around the years 1995 to 2002, respectively. After 2003, the PVC profile industry entered a period of transformation. During the introduction period of the product: Manufacturers generally pursue low cost, simplify the cross-section of door and window profiles, and fill the formula with a large amount of calcium carbonate, resulting in low product performance. Many quality issues have affected the promotion of the product.
