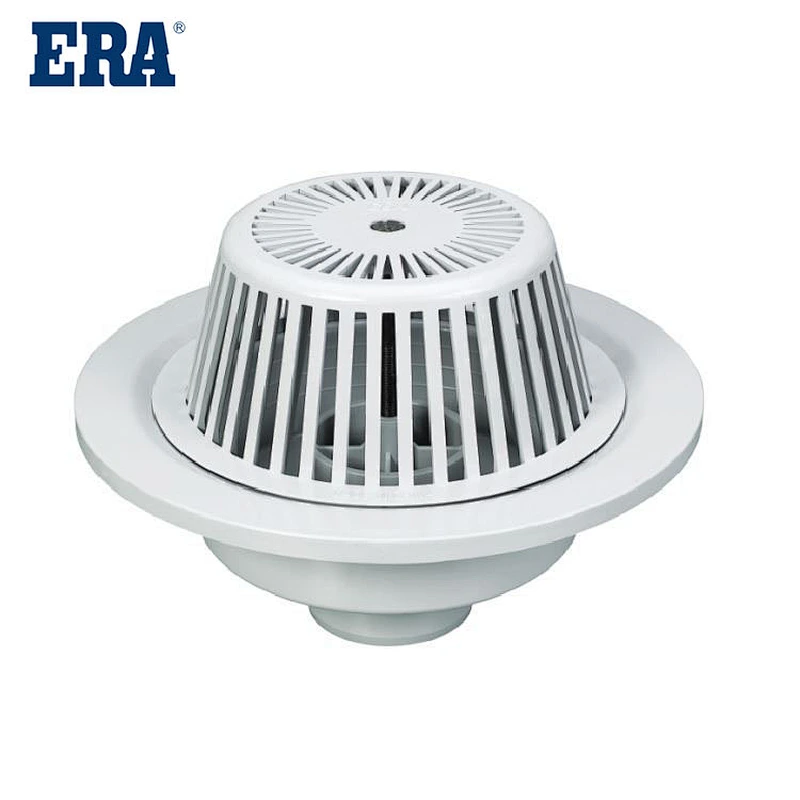

UDD020
The surface hardness and tensile strength of the pipe are excellent, and the safety factor of the pipe is high. Good aging resistance, normal service life can reach more than 50 years. The pipeline has excellent corrosion resistance to inorganic acid, alkali and salt, and is suitable for industrial sewage discharge and transmission. The friction coefficient of the pipeline is small, the water flow is smooth, it is not easy to block, and the maintenance workload is small. The material has high oxygen index and self extinguishing property. The linear expansion coefficient of the pipeline is small, 0.07mm/℃, and the deformation affected by temperature is small. The thermal conductivity and elastic modulus are small, and the frost resistance is better than that of cast iron drain pipes. The pipes and pipe fittings can be connected by bonding. The construction method is simple, the operation is convenient, and the installation efficiency is high.
PVC PIPES AND FITTINGS FOR DRAINAGE
PVC PIPE SYSTEM DRAINAGE PIPES DIN STANDARD BS1329 BS1401, ROOF DRAIN FEMALE , UDD020

System：PVC pipe system
Scope：Drainage pipe system can be used for road drains, agricultural, railway, airport, construction and public green. PVC has the smoothest flow surface of any piping material.The pipe will not be susceptible to blockages and will maintain a high flow capacity over the life of the pipeline.
Specification：A plastic sewer system costs less to operate and maintain because it has greater flow capacity per given size and fewer joints. The economic life cycle of a PVC sewer system is projected at more than 50 years.
Referenced Standards：BS1329/BS1401
Size：50mm – 250mm
Certificate：Kitemark

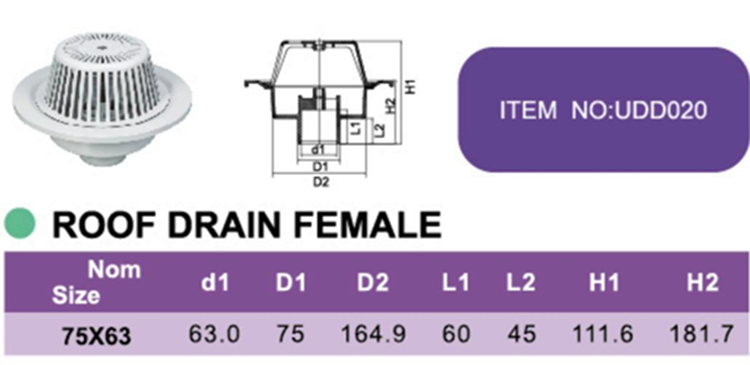

Specification：

Model NumberUDD020MaterialPVC
Description          ROOF DRAIN FEMALESize                      75x63MM
StandardBS1329、BS1401ColorWHITE、GREY
BrandERATemperature0-40
Connectionglue weldingCertificate    /

Main Products：


Introduction to the advantages of PVC drainage pipes
1. The surface hardness of the PVC drainage pipe is very high, and the tensile strength level is excellent. The excellent material makes its pipeline safety factor very high. ​
2. Because it is made of polyvinyl chloride resin, its aging resistance is very good. Under normal circumstances, the service life of PVC drainage pipes can reach more than 50 years. ​
3. PVC drainage pipes are corrosion-resistant to inorganic acids, salts, alkali and other substances, so they are widely used in industrial sewage discharge, and there is no need to worry about water pipes being corroded and damaged. ​
4. The inside of the pipe is smooth and there is a layer of coating, so the internal friction coefficient is small, the water flow can pass smoothly, and it is not easy to cause blockage. Maintenance work is reduced. ​
5. The material used in PVC drainage pipes has a high oxygen index, is self-extinguishing, and has a certain fire retardant effect. ​​
6. The expansion coefficient of PVC drainage pipe is small, only 0.07mm/℃, so it will not deform due to temperature increase or decrease. It has excellent anti-freezing properties when encountering low temperatures because of its small thermal conductivity and elastic modulus. ​
7. When installing and connecting, the drainage pipes can be combined by bonding. The construction is simple and convenient, and the installation efficiency is high. ​
8. PVC drainage pipes have good water tightness and will not see water. Whether bonding or rubber rings are used at the connection, good water tightness can be maintained.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
