UDRN007
pvc drainage pipe has excellent corrosion resistance to inorganic acid, alkali, salt and other substances, so it is more suitable for industrial sewage discharge and transmission.
Good drainage performance. PVC drainage pipe has good drainage performance, because the PVC drainage pipe has a small diameter and a small slope, which can increase the clear height of the space, which is more beneficial to users and enhances the use function of the building.Superior physical and chemical properties. The physical and chemical temperature of PVC drainage pipe has the advantages of strong corrosion resistance, aging resistance, wear resistance and long service life.The linear expansion coefficient of pvc drainage pipe is small, 0. 07mm/℃, small deformation due to temperature. Small thermal conductivity and elastic modulus, excellent frost resistance.

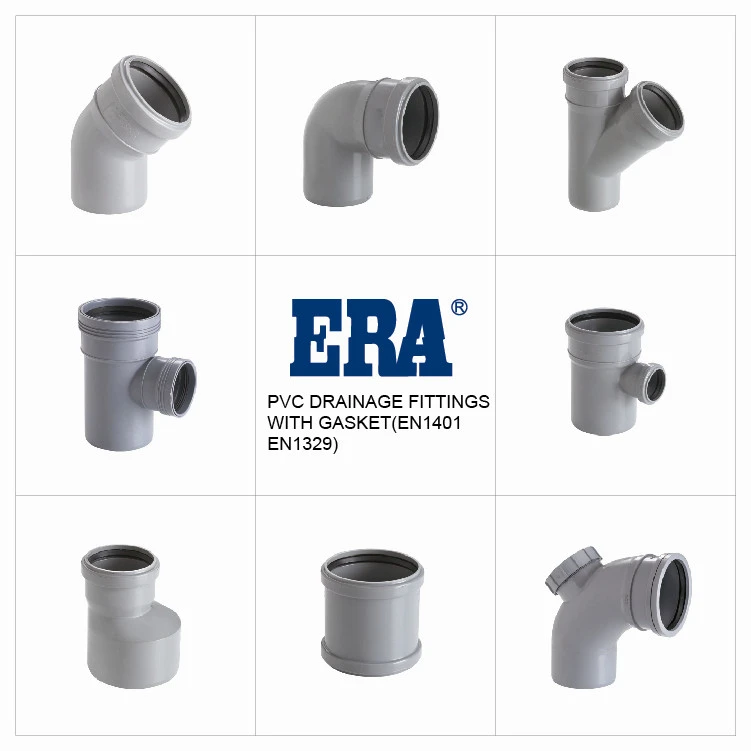

 PVC DRAINAGE FITTINGS WITH GASKET
ERA EN1401 EN1329 PVC DRAINAGE FITTINGS REDUCING COUPLING M/F WITH RUBBER WITH SINGLE END RUBBER RING

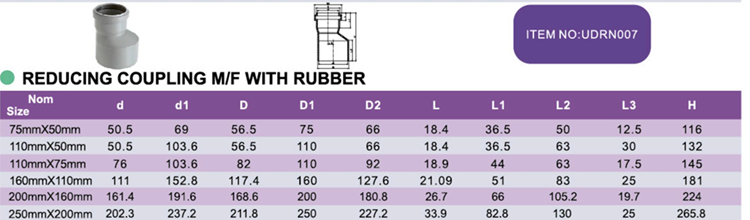

Specification:
Model NumberUDRN007MaterialPVC
Description

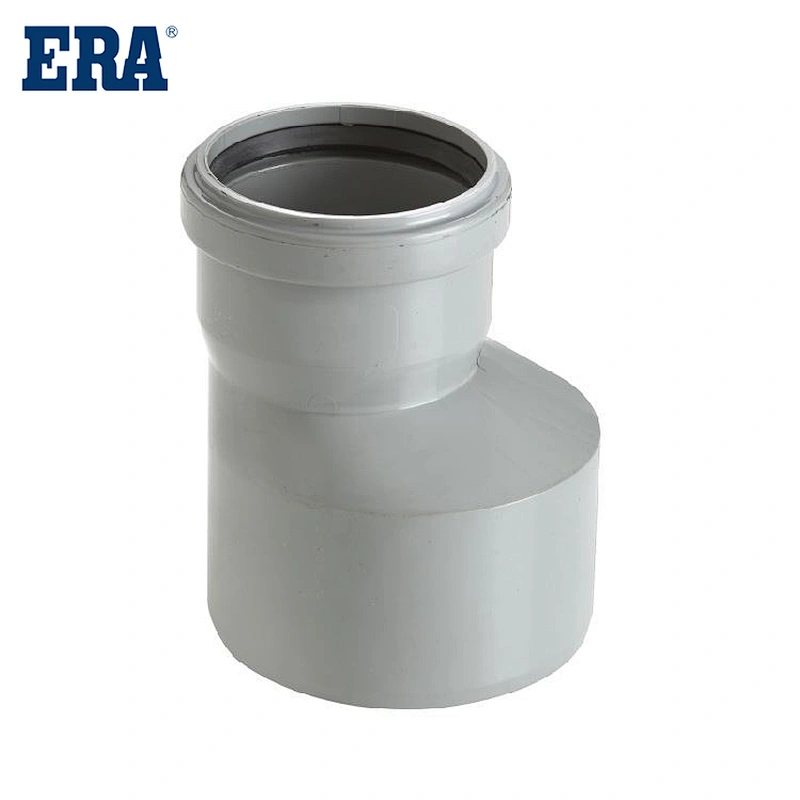

PVC DRAINAGE REDUCING COUPLING M/F WITH RUBBER
Size75x50-200x250MM
StandardEN1401 EN1329ColorGrey
Working PressureTemperatureMax 60°C / 140°F
ConnectionSocketCertificateCE


Main Products:
The main features of PVC drainage pipes are:
1. Lightweight: The specific gravity of the material is only 1/10 of cast iron, making transportation and installation easy and reducing costs. ​
2. Excellent chemical resistance: It has excellent acid and alkali resistance (except for strong acids and bases close to the saturation point or strong oxidizing chemicals). ​
3. Non-conductive: The material cannot conduct electricity and is not corroded by electrolysis and current. ​
4. It cannot burn and does not support combustion: there are no fire protection concerns. ​
5. Easy installation and low cost: cutting and connection are very simple, using PVC glue for connection, which is reliable and safe, easy to operate and low cost. ​
6. Durable: It has excellent weather resistance and cannot be corrupted by bacteria and fungi. ​
7. Small resistance and high circulation rate: the inner wall is smooth, the fluid fluidity loss is small, dirt is not easy to adhere to the smooth pipe wall, and maintenance is relatively simple and low-cost.

Advantages of PVC drain pipes:
1. The pipe is light and easy to construct.
The specific gravity of PVC drainage pipes is about 1.4t/m3, which is only l/5 of cast iron pipes. Plastic pipes of the same length are much lighter than cast iron pipes. They only need to be transported manually during installation, and PVC drainage pipes are made of bearings. At the same time, the plug-in melt-adhesive interface has a standard length (6m and 4m) longer than that of cast iron pipes, which reduces the number of interfaces and the installation process.
2. Good drainage performance
The diameter of PVC drainage pipes can be smaller than that of cast iron pipes, or the same pipe diameter can use a smaller slope within the scope of the specification. This can increase the clear height of the space, which is more beneficial to users and enhances the quality of the building. Use function.
3: Economical and beautiful
The outer wall of PVC drainage pipes is usually white, and it is not used for anti-corrosion treatment such as painting with red lead or silver powder. There are no problems such as rust and peeling off of the outer wall of cast iron pipes. When installed concealed in the tube well, it does not require regular maintenance and care, while exposed installation is better than cast iron. The advantages of the tube are more significant: easy to clean, less obstruction to the visual effect, greatly improving people's living and working environment, and also facilitating the property management of the building.
4. Good social benefits
PVC drainage pipes can replace other steel drainage pipes on a large scale and greatly reduce energy consumption in the steelmaking process.
5. Superior physical and chemical properties
PVC drainage pipes have stable chemical properties and unique mechanical and physical properties that enable them to be used normally for up to 50 years. At the same time, their corrosion resistance, anti-aging, and wear resistance also make them more stable for long-term use than drainage cast iron pipes and cement pipes.
