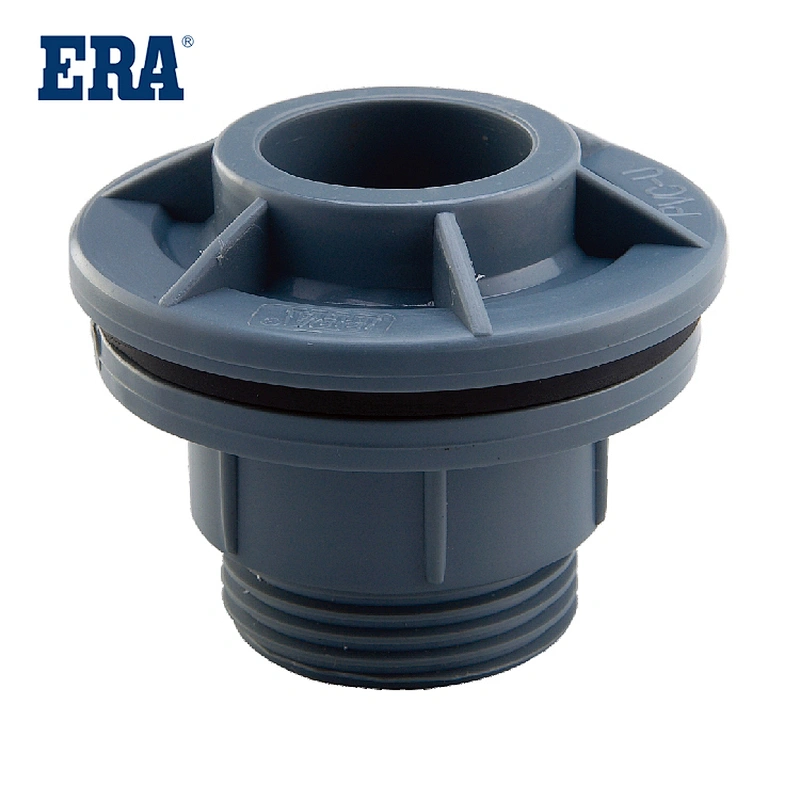

ERA Piping Systems, PVC Pipe Fitting ,Type II,FLANGE COUPLING ,US Ⅱ014Socket x BSPT, CE
System：
Installation requires the use of primer and solvent cement. For pressure applications, sharply angled pressure fittings must be used.
Polyvinyl chloride (PVC) is one of the most broadly used thermoplastic materials, common to many industries.
PVC is highly resistant to acids, alkalis, alcohols, and many other corrosive materials
Scope：
The wide range of joining options that include solvent welding, threaded and mechanical connections make it ideal for easy, error free installations.
PVC-U allows the safe transportation of many acids, alkalis and chemical concentrates
without fear of corrosion and environmental pollution.
Specification：
ERA fittings offer both high impact and high tensile strength.

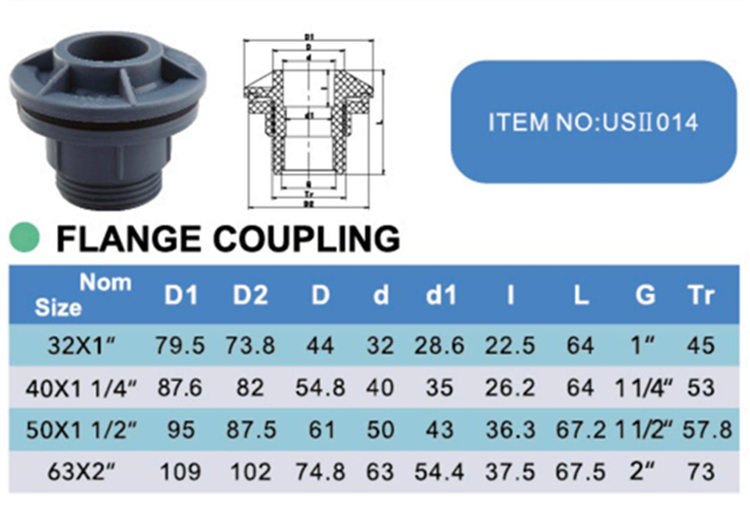

| Model Number | USII014 | Material | PVC |
| Description | FLANGE COUPLING | Size | 32*1/2''-63*2'' |
| Standard | NBR5648 | Color | BLUE |
| Working Pressure | PN10 ,10Bar, 1.0Mpa | Temperature | Max 60°C / 140°F |
| Connection | Socket OR THREAD | Certificate | CE |
Fields of application：
Piping networks for water supply in building.
Piping networks for piping system in water treatment plant.
Piping networks for water farming.
Piping networks for irrigation, normal water transport for industry.
Advantages of pipes
1. It has good tensile and compressive strength: but its flexibility is not as good as other plastic pipes.
2. Small fluid resistance: The pipe wall of PVC-U pipe is very smooth and has very little resistance to fluid. Its roughness coefficient is only 0.009. Its water delivery capacity can be 20% higher than that of cast iron pipes of the same diameter and 40% higher than that of concrete pipes. %.
3. Excellent corrosion resistance and chemical resistance: PVC-U pipes have excellent acid resistance, alkali resistance, corrosion resistance, and are not affected by moisture and soil pH. No anti-corrosion treatment is required when laying pipes.
4. Good water tightness: PVC-U pipes have good water tightness regardless of whether they are connected by bonding or rubber rings.
5. Anti-gnawing: PVC-U pipe is not a nutrient source, so it will not be eroded by rodents. According to tests conducted by the National Sanitation Foundation in Michigan, rats will not bite PVC-U pipes.
6. Performance test: curing time, shrinkage rate, splitting strength, tensile properties, peel strength, thermal stability, potency period, storage period, release of harmful substances.
