UDLR02
1. Light weight, convenient handling: small density, convenient handling, loading and construction.
2. Excellent corrosion resistance: It has excellent acid resistance, alkali resistance and corrosion resistance, and is very suitable for use in the chemical industry.
3. Low fluid resistance: the inner wall of the pipe is smooth, its roughness coefficient is only 0.009, and the fluid resistance is small, which effectively improves the hydraulic conditions of the pipe network and reduces the system operating costs.
4. High mechanical strength: the pipe has good pressure resistance, impact resistance and tensile strength.
5. Simple construction: the pipeline connection construction is fast and easy, and the construction cost is low.
6. Low cost: low price, convenient transportation and construction, long service life, so the overall cost is low.
7. No impact on water quality: It is confirmed by the dissolution test that it does not affect the water quality and is suitable for large-scale promotion and application.

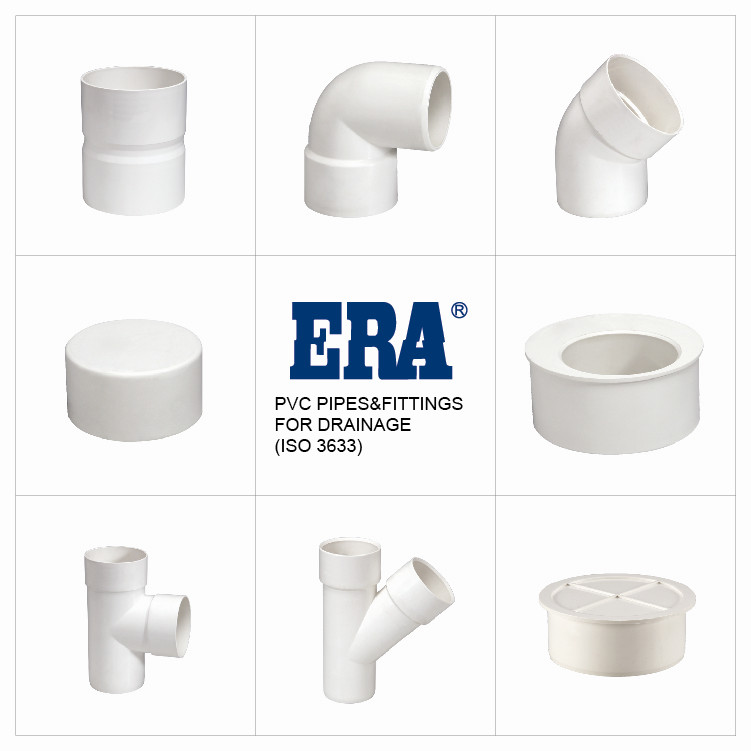

PVC DRAINAGE FITTINGS
ERA Piping Systems, PVC Sanitary Solvent Cement, PVC ISO 3633 REDUCING COUPLING, UDLR02, (ISO3633), CE

Specification：Pipe and fittings shall be manufactured from virgid

PVC(polyvinyl chloride) vinyl compounds.

The international standard specifies the requirements for unplasticized poly(vinyl chloride) (PVC-U) pipes and fittings for soil and waste discharge (low and high temperature) inside buildings, as well as the system itself. It does not include buried pipework.

Pipes intended to be used in areas where installation is usually carried out at temperatures below – 10 °C shall

additionally conform to the requirements of an impact test (staircase method),

Referenced Standards：ISO3633

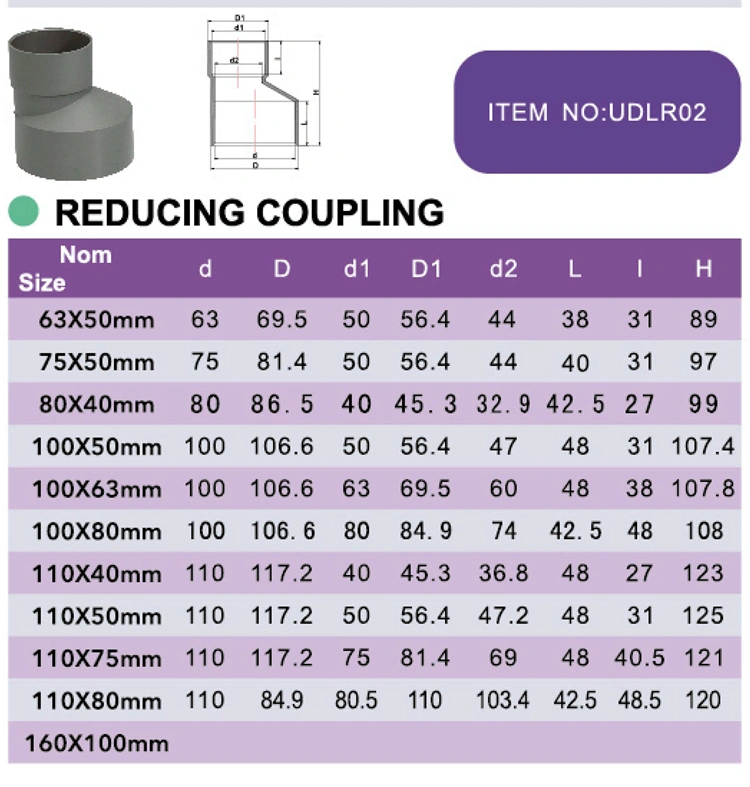

Specification：
Model NumberUDLR02MaterialPVC
Description

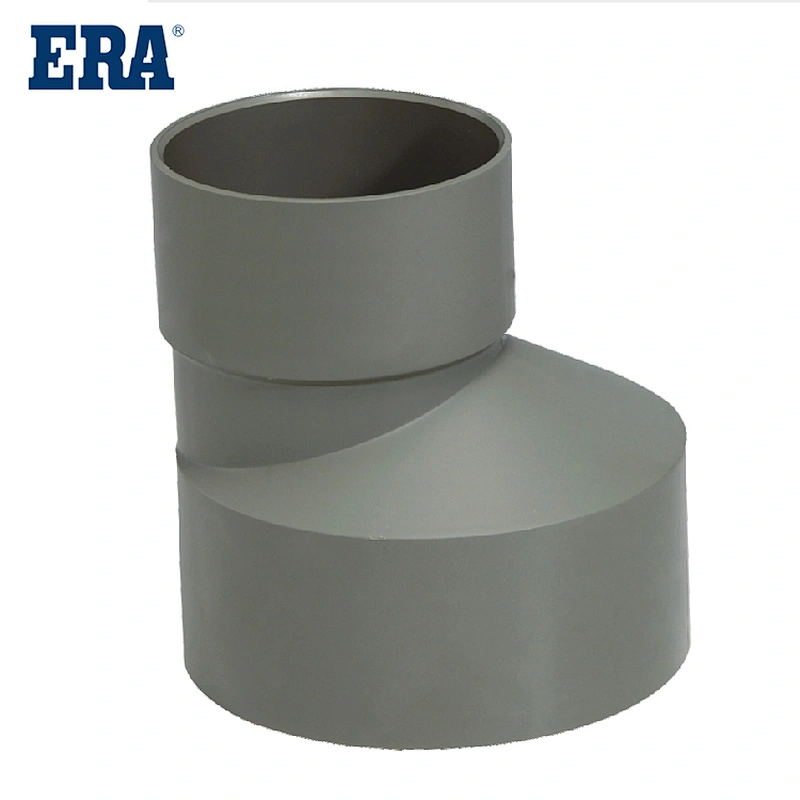

PVC ISO 3633 REDUCING COUPLING
Size63x50-160x100MM
StandardISO3633ColorGrey
Working PressurePN10 10Bar,1.0MpaTemperatureMax 60°C / 140°F
ConnectionSolvent CementCertificateCE

Fields of application：

Piping networks for drainage in building.

Piping networks for sewage in building.

Piping networks for piping system in water treatment plant.

Piping networks for irrigation of gardening or farming.

Main Products：
Characteristics of PVC pipe：

1. Light weight, convenient handling and loading: PVC pipe has light texture, convenient handling, loading and unloading, and convenient construction, saving labor.

2. Excellent chemical resistance: PVC pipe has excellent acid resistance, alkali resistance and corrosion resistance, which is very suitable for chemical industry.

3, low resistance: the inner wall of PVC pipe is smooth, low resistance, and its friction coefficient is only 0.009.

4, good electrical insulation: PVC pipe has excellent electrical insulation performance, suitable for wire, cable protection pipe.

5, simple construction: PVC pipe and pipe fitting combination construction is fast and fast, construction cost is low.

1. Light weight, convenient for transportation and loading and unloading: low density, convenient for transportation, loading and unloading, and construction.
2. Excellent corrosion resistance: It has excellent acid resistance, alkali resistance and corrosion resistance, and is very suitable for use in the chemical industry.
3. Small fluid resistance: The inner wall of the pipe is smooth, its roughness coefficient is only 0.009, and the fluid resistance is small, which effectively improves the hydraulic conditions of the pipe network and reduces system operating costs.
4. High mechanical strength: The pipe has good pressure resistance, impact resistance and tensile strength properties.
5. Simple construction: Pipeline connection construction is quick and easy, and the construction engineering cost is low.
6. Low cost: low price, convenient transportation and construction, and long service life, so the overall cost is low.
7. Does not affect water quality: It has been confirmed by dissolution tests that it does not affect water quality and is suitable for large-scale promotion and application.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
