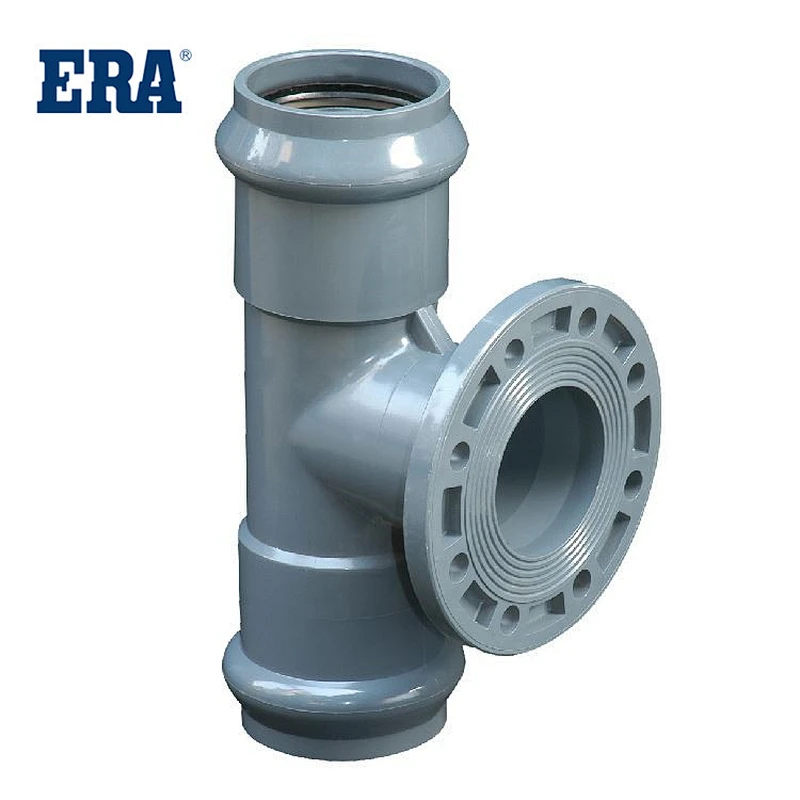

PVC FITTINGS TWO FAUCET ONE FLANGE REDUCING TEE
PVC FITTINGS TWO FAUCET ONE FLANGE REDUCING TEE
PVC FITTINGS TWO FAUCET ONE FLANGE REDUCING TEE
PVC FITTINGS TWO FAUCET ONE FLANGE REDUCING TEE
PVC FITTINGS TWO FAUCET ONE FLANGE REDUCING TEE
PVC FITTINGS TWO FAUCET ONE FLANGE REDUCING TEE
PVC FITTINGS TWO FAUCET ONE FLANGE REDUCING TEE
PVC FITTINGS TWO FAUCET ONE FLANGE REDUCING TEE
PVC FITTINGS TWO FAUCET ONE FLANGE REDUCING TEE
PVC FITTINGS TWO FAUCET ONE FLANGE REDUCING TEE
PVC FITTINGS TWO FAUCET ONE FLANGE REDUCING TEE

PVC FITTINGS TWO FAUCET ONE FLANGE REDUCING TEE

GP007
The material has high oxygen index and self extinguishing property.
The pipeline has small linear expansion coefficient, small deformation affected by temperature, and excellent frost resistance compared with cast iron drainage pipe.
The pipes and pipe fittings can be connected by bonding. The construction method is simple, the operation is convenient, and the installation efficiency is high.
It has good water tightness whether it is connected by adhesive or rubber ring.

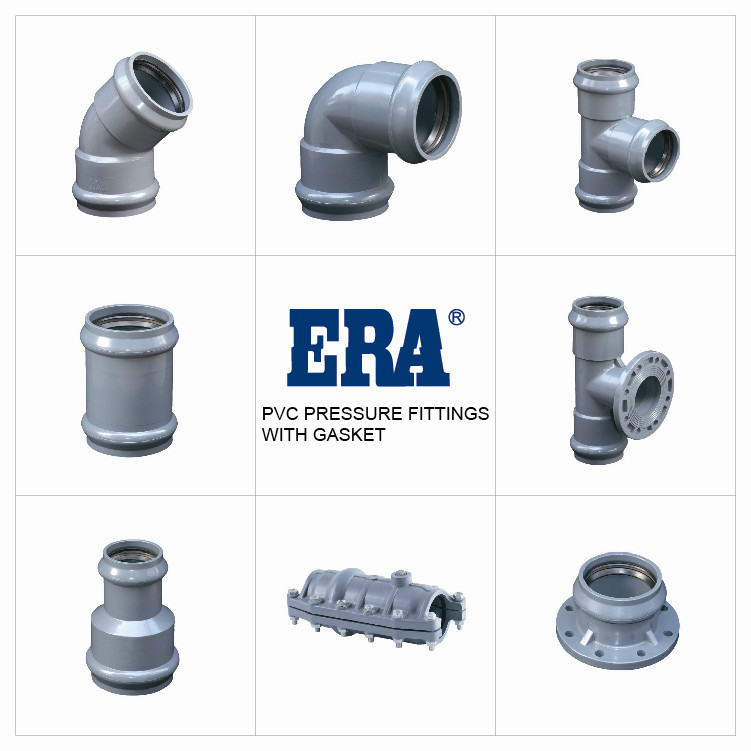

PVC PRESSURE FITTINS WITH GASKET
ERA Piping systems,PVC Pipe Fitting,TWO FAUCET ONE FLANGE REDUCING TEE, GP007,Pressure with gasket(ISO 1452),CE

System:

PVC 1452 Pressure Pipe and Fitting with Gasket System

Generously Blended Branch Intersections

Specification:

Pipe and fittings shall be manufactured from virgid PVC(polyvinyl chloride) vinyl compounds.

The underside of the gasket is flat and butts up against the welding liner's flat face, while the top side has a rounded edge which fits nicely into the groove of the welding male.

Fields of application:

Piping networks for water supply in building.

Piping networks for water farming.

Specification:

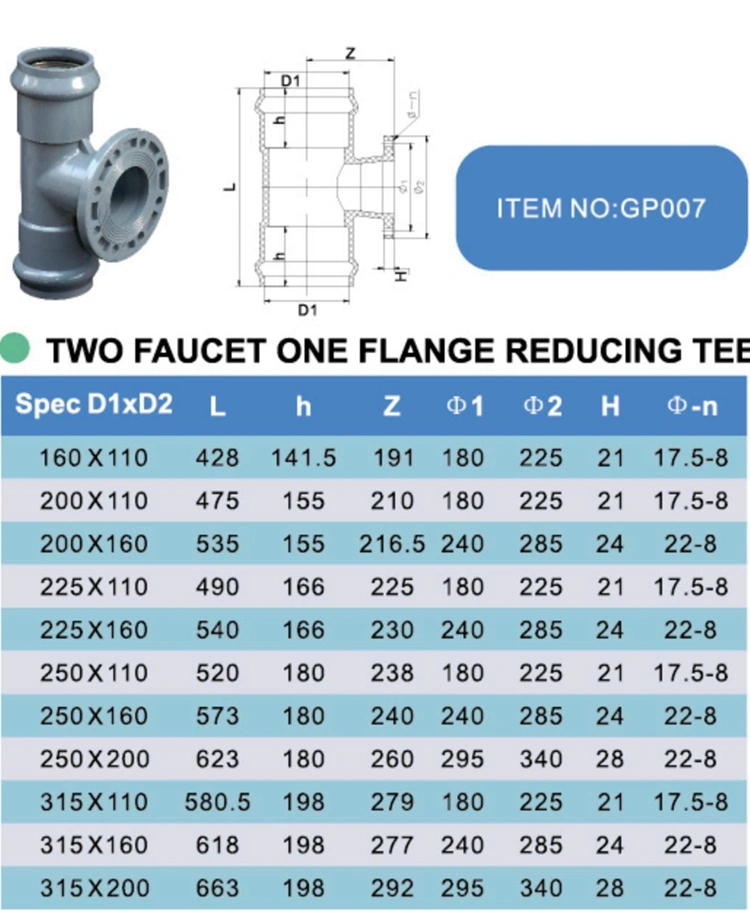

Model NumberGP007MaterialPVC
DescriptionPVC TWO FAUCET ONE FLANGE REDUCING TEESize160x110-315x200MM
StandardISO 1452ColorLight Grey
Working PressurePN10 10Bar,1.0MpaTemperatureMax 60°C / 140°F
ConnectionGASKETCertificateCE
Main Products:

PVC pipe fittings are used in construction, electrical conduit, agricultural irrigation, industrial sewage and other projects. PVC pipe in our country has developed rapidly in recent years, with the annual growth rate reaching 8% and the annual demand growth rate of 2%. In the plastic pipe, PVC pipe has been far ahead, it is widely used in water supply and drainage pipe. Due to the relatively mature technology, in recent years, the investment of PVC water supply pipe in product innovation is not big, the new products are relatively few, the common products in the market are more, the high-tech, high value-added products are less, the similar general products, the middle and low grade products account for the majority, the high-grade products are less.

PVC is used in pipes, flooring, siding and windows. Pipes are usually leak-free because the plastic does not break or crack easily. Since it is not easy to corrode, it can be used indoors and outdoors.
Flexible PVC is used to make flooring such as vinyl tile and plank flooring, as well as wall coverings and wire and cable insulation. It is used in many industries such as healthcare and education because it is waterproof and easy to walk on.
Window frames and siding are also made from uPVC, helping consumers save energy. For example, vinyl window frames have three times the insulating properties of aluminum windows.

What is polyvinyl chloride?
PVC Polyvinyl chloride is a thermoplastic used in many industries, including construction, healthcare, apparel, and consumer products. It is a strong, versatile plastic that will last a long time. PVC was originally created in 1872 and commercially produced by the BF Goodrich Company in the 1920s. Since then, it has become common.
Some of the most important properties of PVC are:
• Density. PVC is dense compared to other plastics.
• low cost. PVC is readily available and inexpensive.
• Rigidity. Rigid PVC ranks among the best in terms of stiffness and durability.
• strength. Rigid PVC has excellent tensile strength, which means it takes a lot of force to stretch and break.
