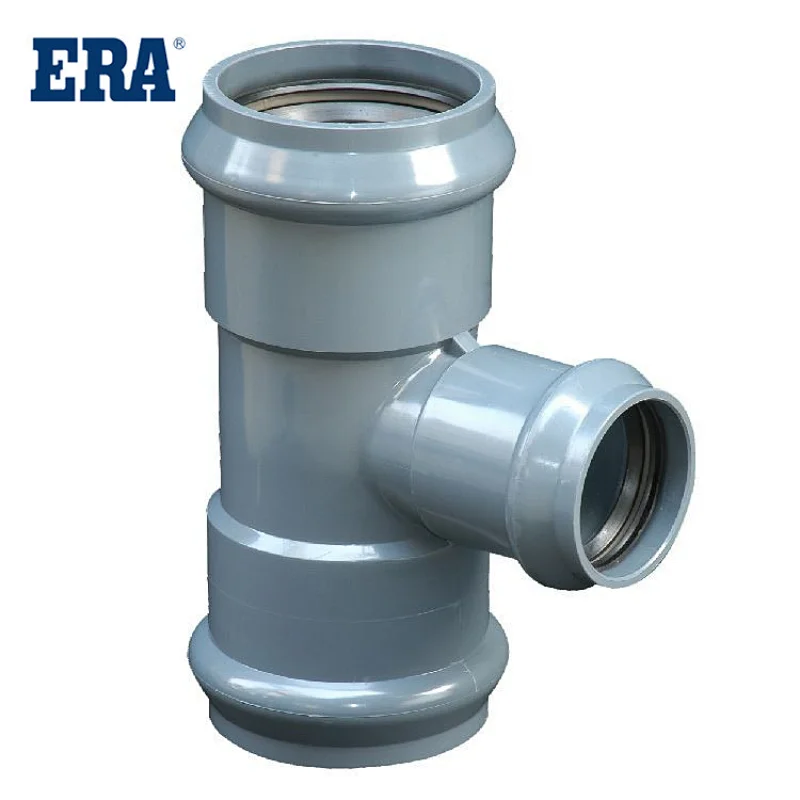

PVC FITTINGS THREE FAUCET REDUCING TEE
PVC FITTINGS THREE FAUCET REDUCING TEE
PVC FITTINGS THREE FAUCET REDUCING TEE
PVC FITTINGS THREE FAUCET REDUCING TEE
PVC FITTINGS THREE FAUCET REDUCING TEE
PVC FITTINGS THREE FAUCET REDUCING TEE
PVC FITTINGS THREE FAUCET REDUCING TEE
PVC FITTINGS THREE FAUCET REDUCING TEE
PVC FITTINGS THREE FAUCET REDUCING TEE
PVC FITTINGS THREE FAUCET REDUCING TEE
PVC FITTINGS THREE FAUCET REDUCING TEE

PVC FITTINGS THREE FAUCET REDUCING TEE

GP013
(4). The friction coefficient of the pipeline is small, the water flow is smooth, it is not easy to block, and the maintenance workload is small.
(5) The material has high oxygen index and self extinguishing property.
(6). The linear expansion coefficient of the pipeline is small, 0.07mm/℃, and the deformation affected by temperature is small. The thermal conductivity and elastic modulus are small, and the frost resistance is excellent compared with the cast iron drainage pipe.
(7). The pipes and pipe fittings can be connected by bonding. The construction method is simple, the operation is convenient, and the installation efficiency is high.
(8). Good water tightness: the installation of pvc-U pipe has good water tightness, whether by bonding or rubber ring connection.

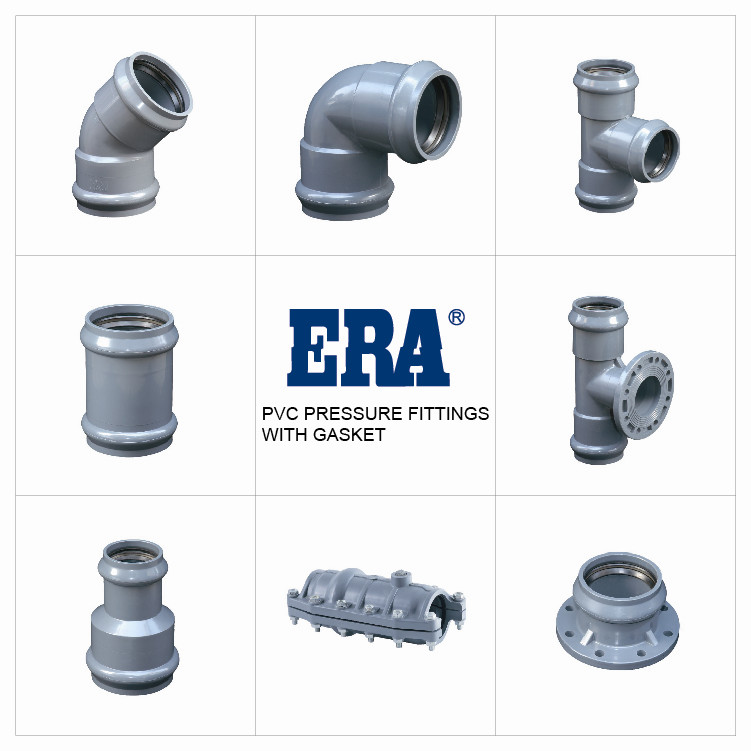

PVC PRESSURE FITTINS WITH GASKET
ERA Piping systems,PVC Pipe Fitting,THREE FAUCET REDUCING TEE, GP013，Pressure with gasket(ISO 1452),CE

System：

Generously Blended Branch Intersections

Heavy Duty Support at Branch Intersections.

Scope：

The pipe ends and fitting ends (street ell, bushing) are beveled to make it easier to insert into a gasketed hub.

Pipe joints have a bell. You should bevel every edge that you cut.

Specification：

The underside of the gasket is flat and butts up against the welding liner's flat face, while the top side has a rounded edge which fits nicely into the groove of the welding male.

The round nut then joins the liner and male compressing the gasket creating a tight seal.

Raw material

Raw material -- CPVC ( from JAPAN SEKISUI) , PPR (from Korea HYOSUNG), HDPE (from BOROUGE),

Also Domestic PVC material compounded by YONGGAO research institue ,which can pass NSF certificate.

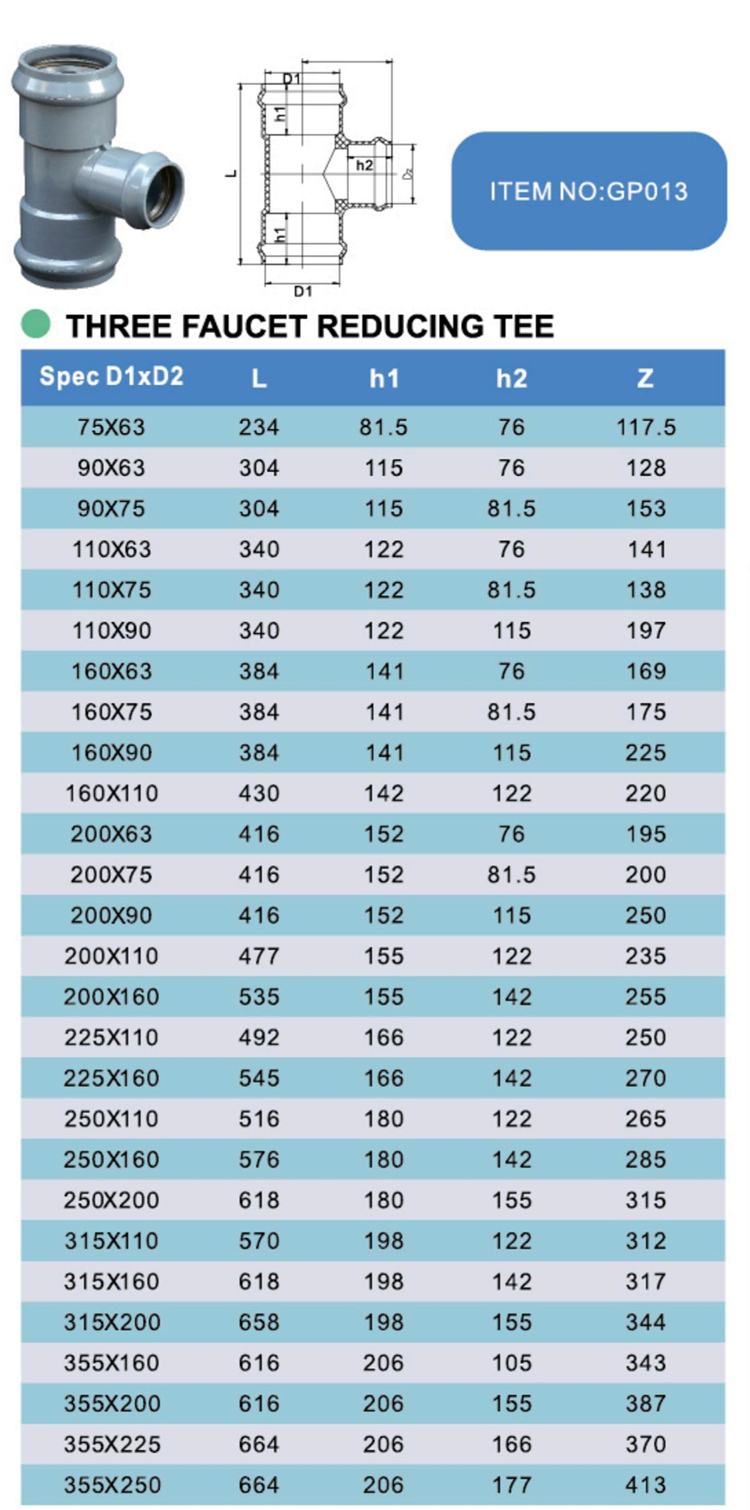

Specification：
Model NumberGP013MaterialPVC
DescriptionPVC FITTINGS THREE FAUCET REDUCING TEESize75x63-355x250MM
StandardISO 1452ColorLight Grey
Working PressurePN10 10Bar,1.0MpaTemperatureMax 60°C / 140°F
ConnectionGASKETCertificateCE
Main Products：
Reducer tee has excellent mechanical and physical properties. Stainless steel water pipe strength is very high, is galvanized pipe 2 times, copper pipe 3 times, PVC pipe 8-10 times, can well withstand the vibration impact, with no water leakage, no burst, fire, seismic characteristics, so very safe and reliable; At the same time, good thermal insulation performance, especially suitable for hot water transport

The service life of reducer tee is long. The operating life cost is low and the economic benefit is remarkable.

1. It has good tensile and compressive strength: but its flexibility is not as good as other plastic pipes.
2. Small fluid resistance: The pipe wall of PVC-U pipe is very smooth and has very little resistance to fluid. Its roughness coefficient is only 0.009. Its water delivery capacity can be 20% higher than that of cast iron pipes of the same diameter and 40% higher than that of concrete pipes. %.
3. Excellent corrosion resistance and chemical resistance: PVC-U pipes have excellent acid resistance, alkali resistance, corrosion resistance, and are not affected by moisture and soil pH. No anti-corrosion treatment is required when laying pipes.
4. Good water tightness: PVC-U pipes have good water tightness regardless of whether they are connected by bonding or rubber rings.
5. Anti-gnawing: PVC-U pipe is not a nutrient source, so it will not be eroded by rodents. According to tests conducted by the National Sanitation Foundation in Michigan, rats will not bite PVC-U pipes.
6. Performance test: curing time, shrinkage rate, splitting strength, tensile properties, peel strength, thermal stability, potency period, storage period, release of harmful substances.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
