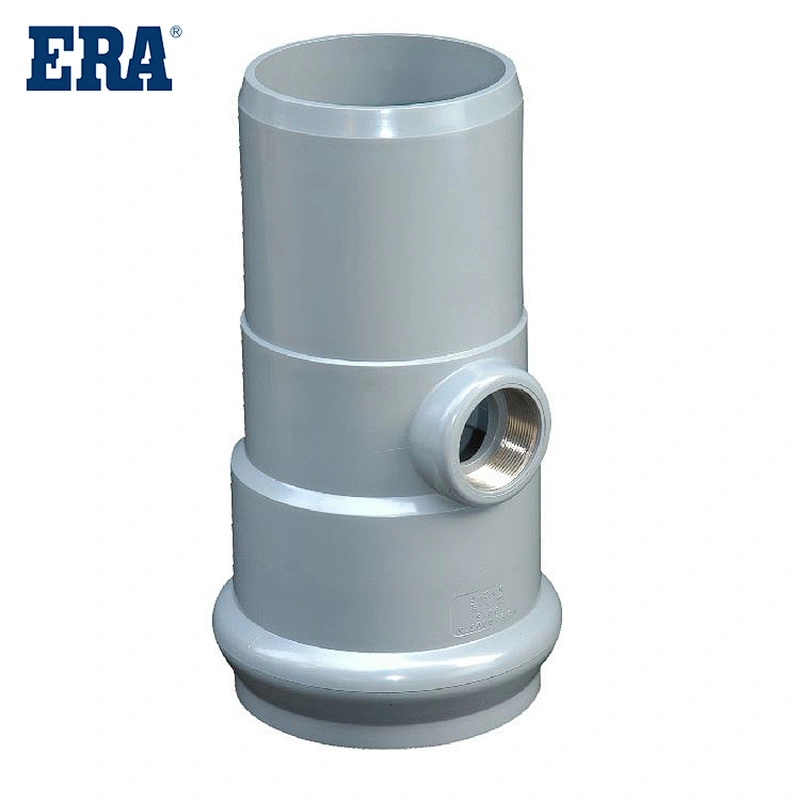

PVC FITTINGS ONE FAUCET ONE INSERT COPPER SCREW TEE
PVC FITTINGS ONE FAUCET ONE INSERT COPPER SCREW TEE
PVC FITTINGS ONE FAUCET ONE INSERT COPPER SCREW TEE
PVC FITTINGS ONE FAUCET ONE INSERT COPPER SCREW TEE
PVC FITTINGS ONE FAUCET ONE INSERT COPPER SCREW TEE
PVC FITTINGS ONE FAUCET ONE INSERT COPPER SCREW TEE
PVC FITTINGS ONE FAUCET ONE INSERT COPPER SCREW TEE
PVC FITTINGS ONE FAUCET ONE INSERT COPPER SCREW TEE
PVC FITTINGS ONE FAUCET ONE INSERT COPPER SCREW TEE
PVC FITTINGS ONE FAUCET ONE INSERT COPPER SCREW TEE
PVC FITTINGS ONE FAUCET ONE INSERT COPPER SCREW TEE

PVC FITTINGS ONE FAUCET ONE INSERT COPPER SCREW TEE

GP012
(1). The surface hardness and tensile strength of the pipe are excellent, and the safety factor of the pipe is high.
(2). Good aging resistance, normal service life can reach more than 50 years.
(3). The pipeline has excellent corrosion resistance to inorganic acid, alkali and salt, and is suitable for industrial sewage discharge and transmission.
(4). The friction coefficient of the pipeline is small, the water flow is smooth, it is not easy to block, and the maintenance workload is small.
(5) The material has high oxygen index and self extinguishing property.
(6). The linear expansion coefficient of the pipeline is small, 0.07mm/℃, and the deformation affected by temperature is small. The thermal conductivity and elastic modulus are small, and the frost resistance is excellent compared with the cast iron drainage pipe.
(7). The pipes and pipe fittings can be connected by bonding. The construction method is simple, the operation is convenient, and the installation efficiency is high.
(8). Good water tightness: the installation of pvc-U pipe has good water tightness, whether by bonding or rubber ring connection.

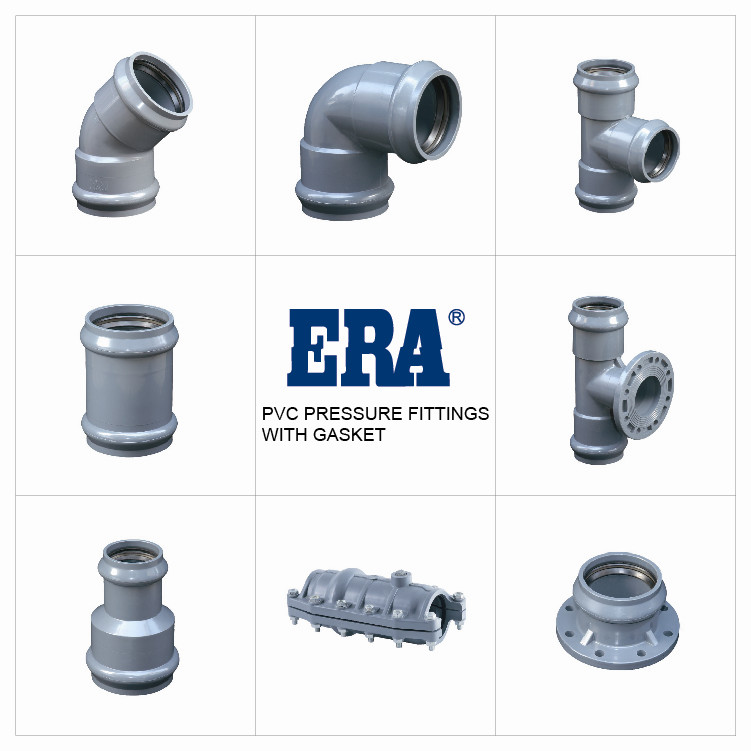

PVC PRESSURE FITTINS WITH GASKET
ERA Piping systems,PVC Pipe Fitting,ONE FAUCET ONE INSERT COPPER SCREW TEE, GP012，Pressure with gasket(ISO 1452),CE

System：

With High Performance Gasket.

Rounded Edges to Minimize Stress Points

Scope：

Gasketed pipe is required by many municipalities for public sewage systems，It is typically installed underground.

Gasket lubricant or soap makes the fittings easier to slide together.

Specification：

DIN gaskets are designed specifically for DIN fittings.

Gaskets are matched to other DIN fittings based on the metric sizing

Specification：

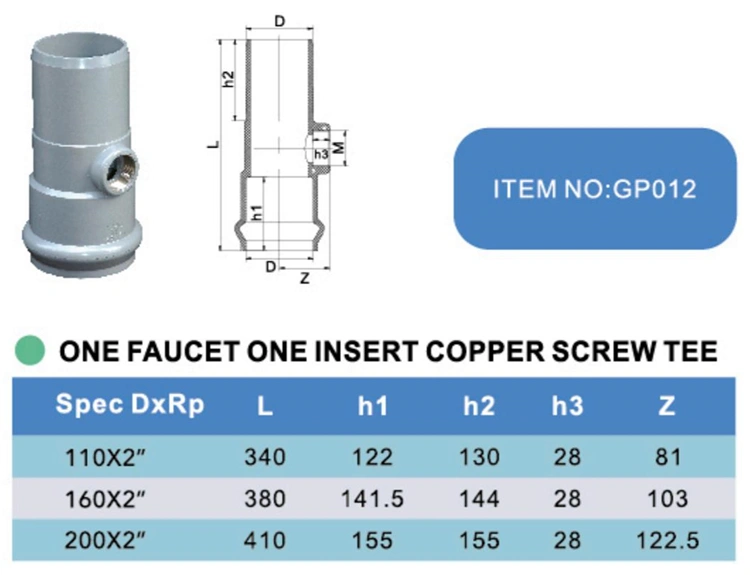

Model NumberGP012MaterialPVC
Description
PVC FITTINGS ONE FAUCET ONE INSERT COPPER SCREW TEE
Size110x2''-200x2''MM
StandardISO 1452ColorLight Grey
Working PressurePN10 10Bar,1.0MpaTemperatureMax 60°C / 140°F
ConnectionGASKETCertificateCE

Main Products：
PVC pipe fittings of variable tee has excellent corrosion resistance. Therefore, it is suitable for all kinds of water quality, in addition to disinfection and sterilization, do not need to control the water quality, at the same time, there is no corrosion and excessive exudate, can keep the water pure health, put an end to secondary pollution, can withstand up to 30 meters per second high water impact.

Advantage：
Corrosion resistance, suitable for industrial chemical corrosion-resistant equipment parts; easy to process, easy to weld and bend; good electrical insulation, suitable for wires and cables, self-extinguishing, low water absorption, adaptable to humid working environments; and Adhesive, easy to paint; plastic material, low price, recyclable, in line with social development.

Advantages of PVC pipes
1. It has good tensile and compressive strength: but its flexibility is not as good as other plastic pipes.
2. Small fluid resistance: The pipe wall of PVC pipe is very smooth and has very little resistance to fluid. Its roughness coefficient is only 0.009. Its water transport capacity can be 20% higher than that of cast iron pipes of the same diameter and 40% higher than that of concrete pipes.
3. Excellent corrosion resistance and chemical resistance: PVC pipes have excellent acid resistance, alkali resistance, corrosion resistance, and are not affected by moisture and soil pH. No anti-corrosion treatment is required when laying pipes.
4. Good water-tightness: The installation of PVC pipes, regardless of whether they are connected by bonding or rubber rings, has good water-tightness.
5. Anti-gnawing: PVC pipe is not a nutrient source, so it will not be eroded by rodents.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
