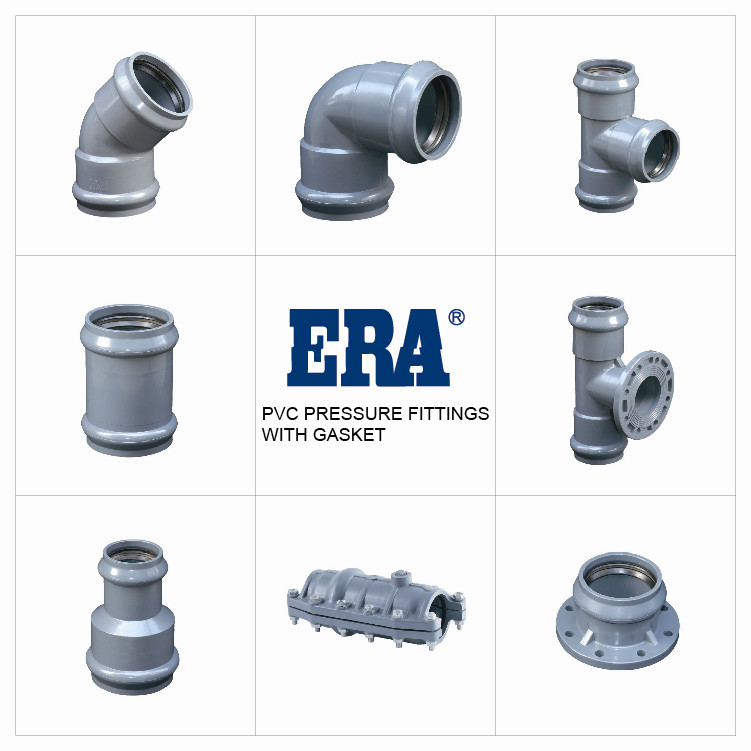

PVC PRESSURE FITTINS WITH GASKET

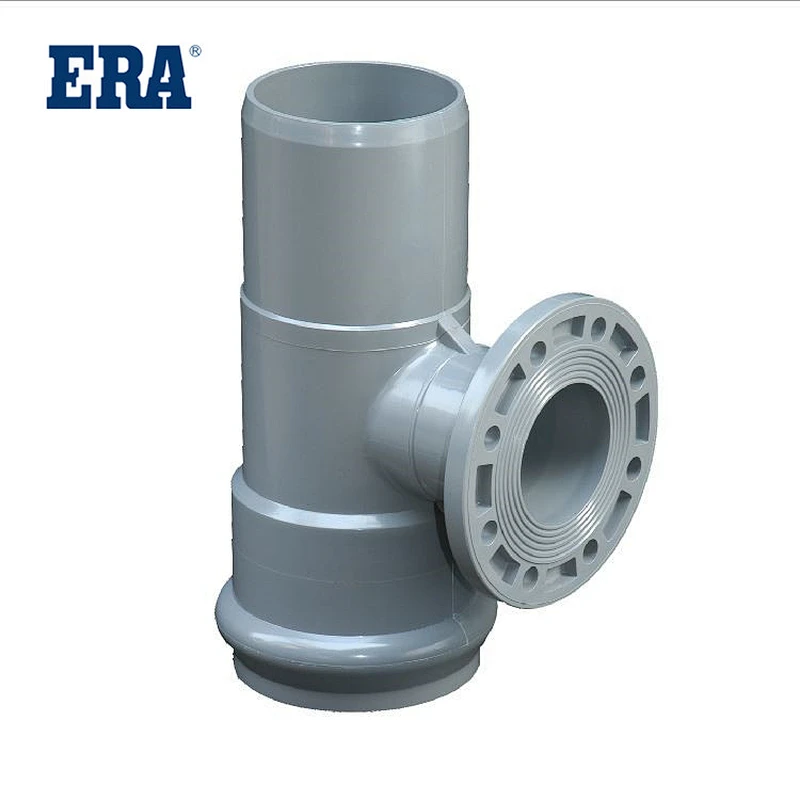

ERA Piping systems,PVC Pipe Fitting, ONE FAUCET ONE FLANGE ONE INSERT REGULAR TEE, GP008，Pressure with gasket(ISO 1452),CEPVC 1452 Pressure Pipe and Fitting with Gasket System
With High Performance Gasket.
Scope：
Gasketed pipe is required by many municipalities for public sewage systems，It is typically installed underground.
Fields of application：
Piping networks for water supply in building.
Piping networks for piping system in water treatment plant.

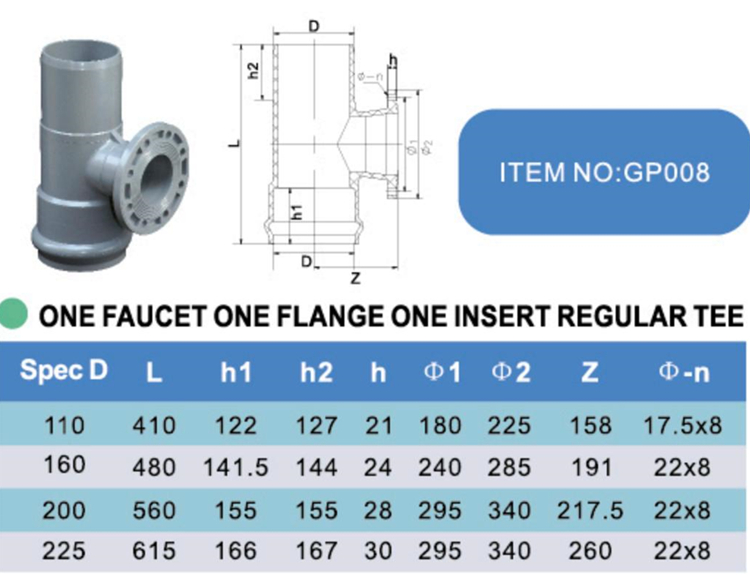

Specification：| Model Number | GP008 | Material | PVC |
| Description | PVC FITTINGS ONE FAUCET ONE FLANGE ONE INSERT REGULAR TEE | Size | 110-225MM |
| Standard | ISO 1452 | Color | Light Grey |
| Working Pressure | PN10 10Bar,1.0Mpa | Temperature | Max 60°C / 140°F |
| Connection | GASKET | Certificate | CE |
Main Products：
As the name implies, there are three openings, that is to say, one entrance, two exits; Or two imports and one export. A kind of chemical pipe fittings, T shape and Y shape, with equal diameter pipe mouth, also have reduced diameter pipe mouth, used for three same or different pipe convergence. Its main function is to redirect the fluid. Used to change the direction of the fluid, can be used in the pipeline, pipeline and a variety of liquid chemical material pipeline. Mainly used in medicine, water conservancy (water-saving irrigation, water supply and drainage), energy (oil, natural gas, nuclear industry), construction and other engineering fields.
1. The surface hardness and tensile strength of the pipe are excellent, and the pipeline safety factor is high.
2. It has good aging resistance and its normal service life can reach more than 50 years.
3. The pipeline has excellent corrosion resistance to inorganic acids, alkalis, and salts, and is suitable for industrial sewage discharge and transportation.
4. The friction coefficient of the pipeline is small, the water flow is smooth, it is not easy to be blocked, and the maintenance workload is small.
5. The material has a high oxygen index and is self-extinguishing.
6. The linear expansion coefficient of the pipeline is small, 0.07mm/℃, and the deformation affected by temperature is small. The thermal conductivity and elastic modulus are small, and compared with cast iron drainage pipes, they have excellent freezing resistance.
7. Bonding can be used to connect pipes and pipe fittings. The construction method is simple, the operation is convenient, and the installation efficiency is high.
8. Good water tightness: PVC-U pipes have good water tightness regardless of whether they are connected by bonding or rubber rings.
