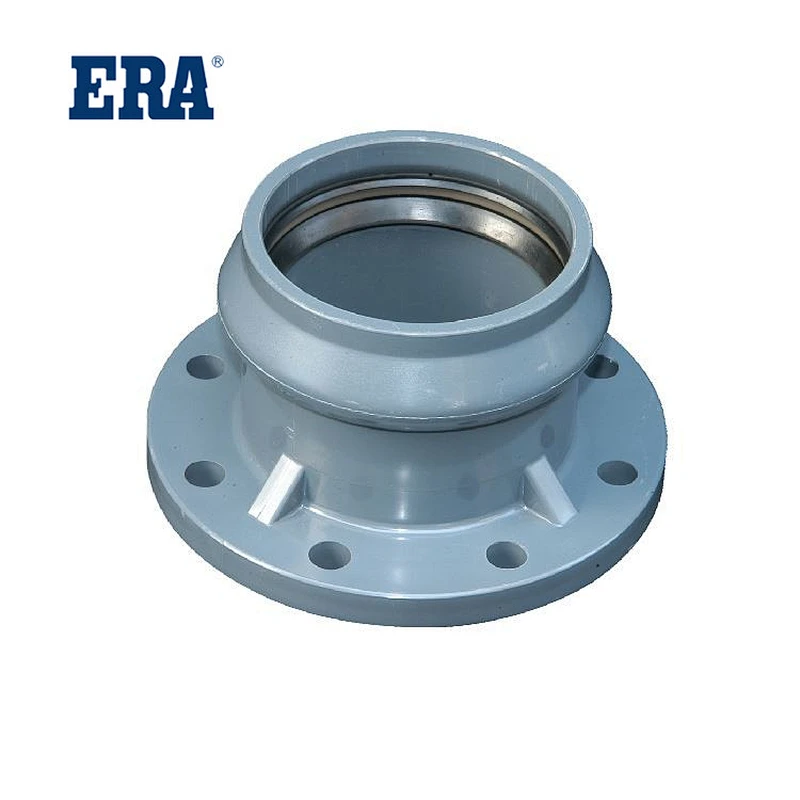

PVC FITTINGS FAUCET FLANGE

Model NO.: GP017

Pvc pipe also has good water tightness, which can maintain good water tightness whether the pipe is connected by adhesive or rubber ring.
Pvc pipe has good tensile and thermal stability, and can be used in different environments.
The hardness of PVC pipe is good, so it can be used as a drain pipe to prevent insect and ant erosion and has a longer service life.

Product Description

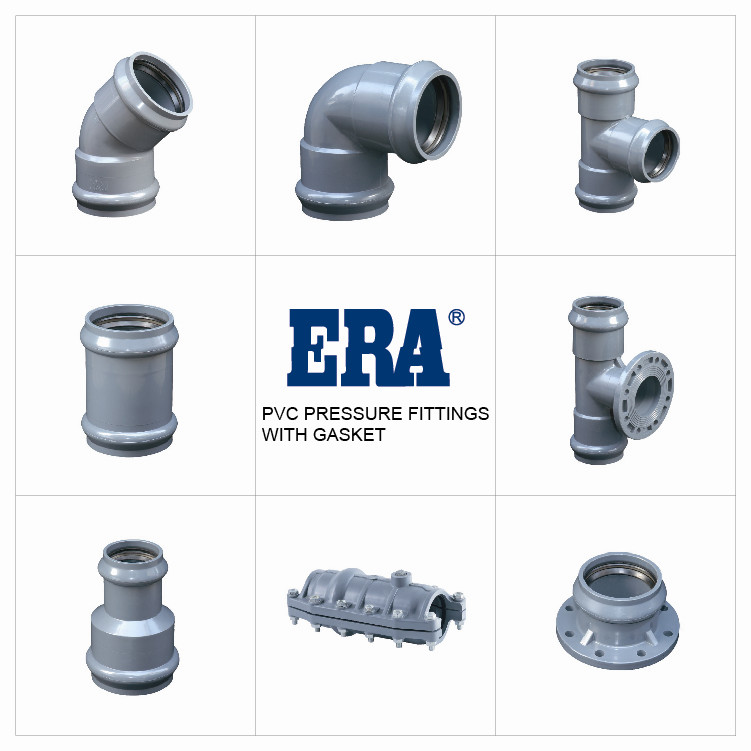

PVC PRESSURE FITTINS WITH GASKET
ERA Piping systems,PVC Pipe Fitting,FAUCET FLANGE, GP017，Pressure with gasket(ISO 1452),CE

System：

PVC 1452 Pressure Pipe and Fitting with Gasket System

With High Performance Gasket.

Generously Blended Branch Intersections

Scope：

Gasketed pipe is required by many municipalities for public sewage systems，It is typically installed underground.

The pipe ends and fitting ends (street ell, bushing) are beveled to make it easier to insert into a gasketed hub.

Pipe joints have a bell. You should bevel every edge that you cut.

Specification：

The round nut then joins the liner and male compressing the gasket creating a tight seal.

Gaskets are matched to other DIN fittings based on the metric sizing

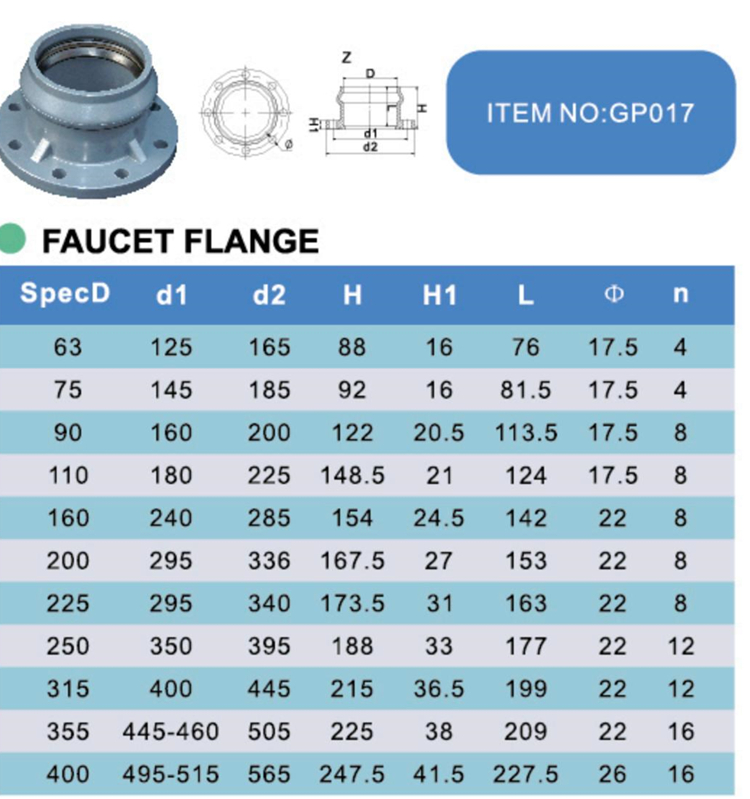

Specification：

Model Number	GP017	Material	PVC
Description	PVC FAUCET FLANGE	Size	63-400MM
Standard	ISO 1452	Color	Light Grey
Working Pressure	PN10 10Bar,1.0Mpa	Temperature	Max 60°C / 140°F
Connection	GASKET	Certificate	CE

Main Products：

The main component of PVC is polyvinyl chloride, and other ingredients are added to enhance its heat resistance, toughness, ductility, etc. The top layer of this surface film is paint, the main component in the middle is polyvinyl chloride, and the bottom layer is back-coated adhesive. It is a synthetic material that is loved, popular and widely used in the world today. Its global usage ranks second among various synthetic materials.
The essence of PVC is a vacuum plastic-absorbing film, which is used for the surface packaging of various types of panels. Therefore, it is also called decorative film and adhesive film. It is used in many industries such as building materials, packaging, medicine, etc. Among them, the building materials industry accounts for the largest proportion, 60%, followed by the packaging industry, and several other small-scale application industries.

Main features of PVC pipes
1. Very light in weight, easy to load and unload, low in density and easy to construct.
2. It has good corrosion resistance, acid resistance, alkali resistance and corrosion resistance, and is very suitable for the chemical industry.
3. The fluid resistance is very small. The smoothness and roughness coefficient of the inner wall of the PVC pipe is only 0.009, and the fluid resistance is small, which greatly improves the hydraulic conditions of the pipe network and reduces the system operating cost.
4. High mechanical strength, good pressure resistance, impact resistance and tensile strength.
5. The construction is simple, the pipeline connection construction is quick and easy, and the construction cost is low.
6. Cheap cost, low price, convenient transportation and construction, long life, and low overall cost.
7. No impact on water quality. Dissolution experiments have proven that it does not impact water quality and is suitable for large-scale promotion and application.
