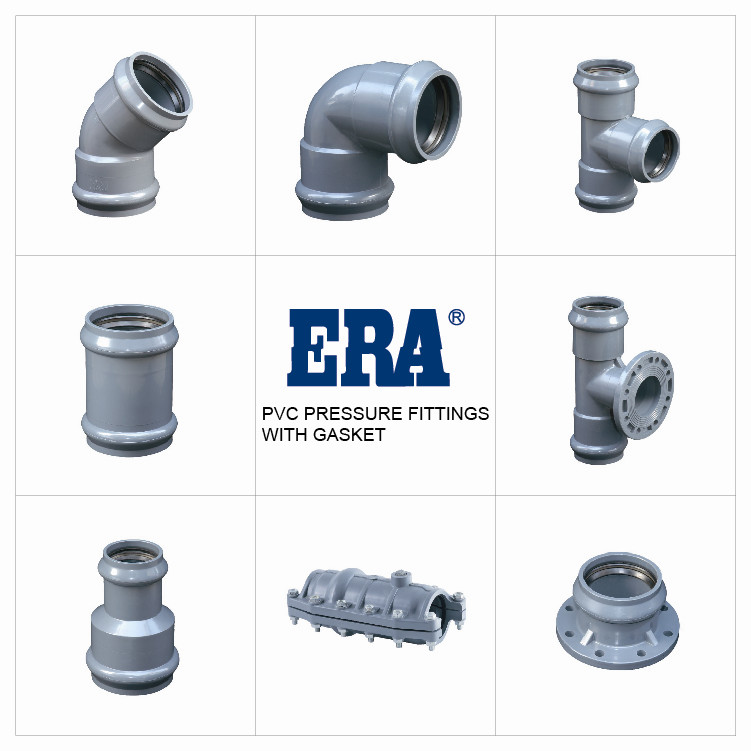

PVC PRESSURE FITTINS WITH GASKET

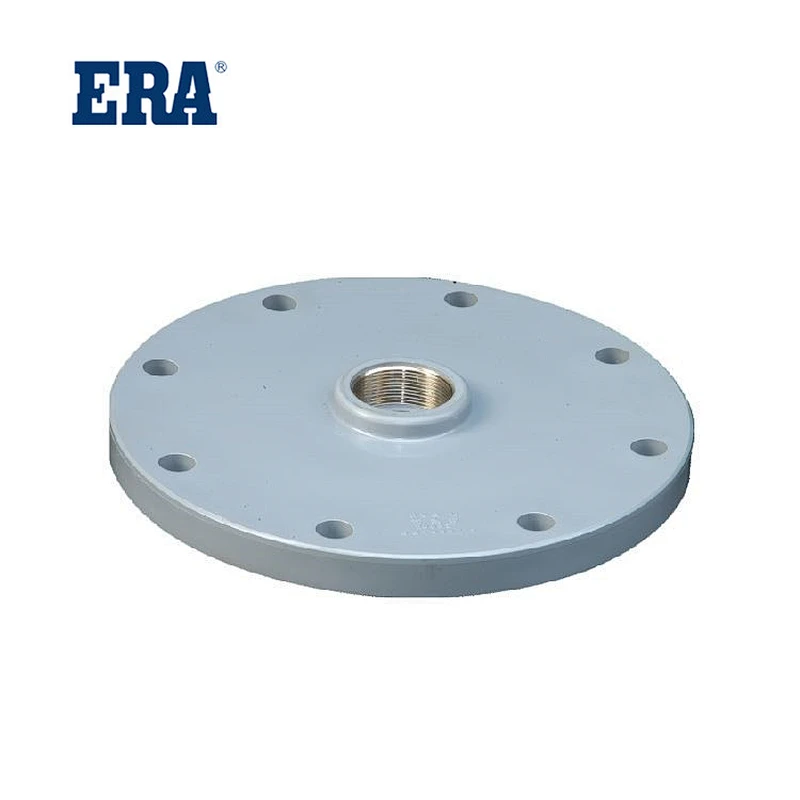

ERA Piping systems,PVC Pipe Fitting,COOPER SCREW BLANK FLANGE, GP019，Pressure with gasket(ISO 1452),CESystem:
With High Performance Gasket.
Generously Blended Branch Intersections
Scope:
Gasketed pipe is required by many municipalities for public sewage systems，It is typically installed underground.
The pipe ends and fitting ends (street ell, bushing) are beveled to make it easier to insert into a gasketed hub.
Fields of application:
Piping networks for piping system in water treatment plant.
Piping networks for water farming.

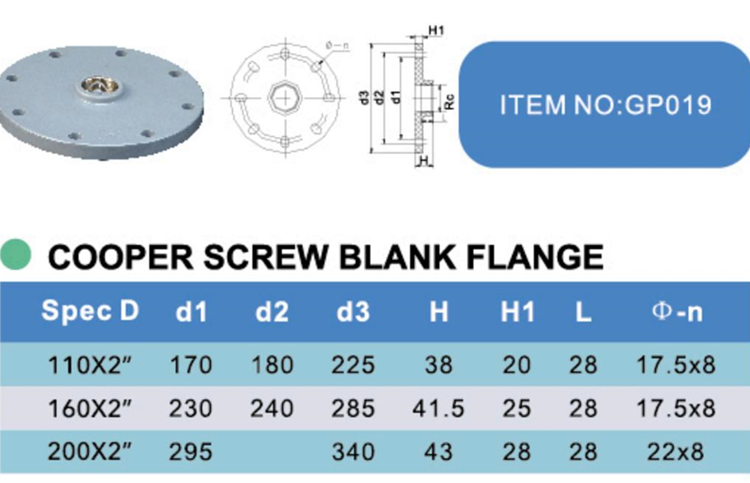

Specification:| Model Number | GP019 | Material | PVC |
| Description | PVC COOPER SCREW BLANK FLANGE | Size | 110x2''-200x2''MM |
| Standard | ISO 1452 | Color | Light Grey |
| Working Pressure | PN10 10Bar,1.0Mpa | Temperature | Max 60°C / 140°F |
| Connection | GASKET | Certificate | CE |
Main ProductsCompany introduction
Certificate exhibition
PVC pipe (PVC-U pipe) hard polyvinyl chloride pipe, is made of PVC resin and stabilizer, lubricant after hot pressing extrusion molding, is the earliest development and application of plastic pipe. PVC-U pipe has strong corrosion resistance, easy bonding, low price and hard texture. However, due to the leakage of PVC-U monomer and additives, it is only suitable for the water supply system where the conveying temperature does not exceed 45℃. Plastic pipes are used to transport drinking water, wastewater, chemicals, heating and cooling fluids, food, ultra-pure liquids, mud, gas, compressed air and vacuum system applications.
