PVC PRESSURE FITTINGS JIS STANDARD

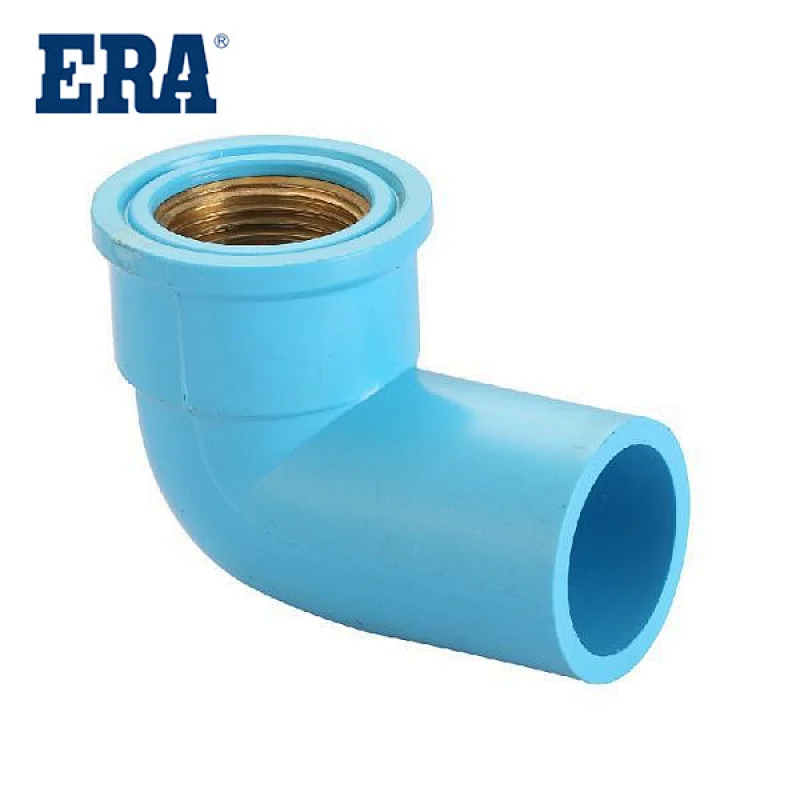

ERA Piping Systems, PVC Pipe Fitting, FEMALE BRASS ELBOW, PJS001, BS4346 (BS 1452-3) ,Socket , Kitemark Scope:This series of fittings can match the standard BS 1452-3
Plastics, Polymers, Pipework systems, Plastic pipelines, Water, Pipes, Water supply engineering,
Specification: Pipe and fittings shall be manufactured from virgid
PVC(polyvinyl chloride) vinyl compounds.
1) Healthy, bacteriological neutral, conforming to drinking water standards
2) Resistant to high temperatures, good impact strength
3) Convenient and reliable installation, low construction expenses
4) Excellent heat-insulation property from minimum thermal conductivity
Referenced Standards: BS 1452-3
Specification:| Model Number | PJS001 | Material | PVC |
| Description | PVC FEMALE BRASS ELBOW | Size | 18、20(1/2''、3/4'')MM |
| Standard | BS 1452-3 | Color | BLACK,GREY |
| Brand | ERA | Temperature | Max 60°C / 140°F |
| Connection | ANSI Socket or BS Thread | Certificate | KITEMARK |
Company introduction
Advantages of pipe
1. It has good tensile and compressive strength: but its flexibility is not as good as other plastic pipes.
2. Low fluid resistance: the wall of PVC-U pipe is very smooth, and the resistance to fluid is very small. Its roughness coefficient is only 0.009, and its water transport capacity is 20% higher than that of cast iron pipe of the same diameter, and 40% higher than that of concrete pipe.
3. Excellent corrosion resistance and drug resistance: PVC-U pipe has excellent acid resistance, alkali resistance, corrosion resistance, is not affected by moisture and soil pH, and does not need any anti-corrosion treatment when the pipeline is laid.
4. With good water tightness: the installation of PVC-U pipe has good water tightness, whether it is connected by adhesive or rubber ring.
5. Rodent proof: PVC-U tubes are not nutrient sources, so they are not susceptible to rodent attack. Rats won't bite PVC-U pipe, according to a study conducted by the National Foundation for Health in Michigan.
6, performance test: curing time shrinkage splitting strength tensile property peeling strength thermal stability applicable period storage period harmful substance release.
