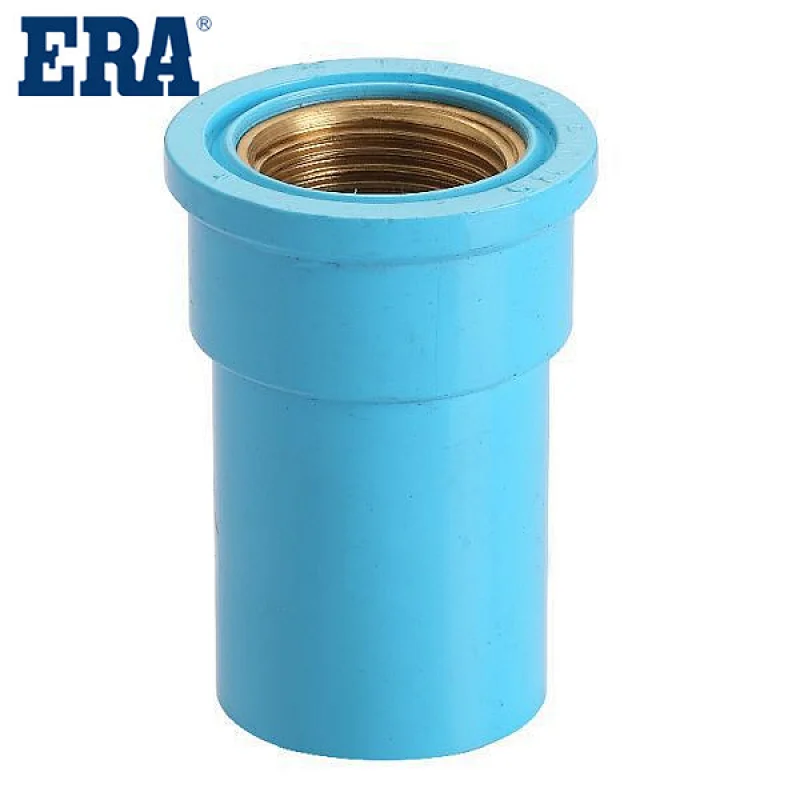

PVC Fitting Female Brass Coupling
PVC Fitting Female Brass Coupling
PVC Fitting Female Brass Coupling
PVC Fitting Female Brass Coupling
PVC Fitting Female Brass Coupling
PVC Fitting Female Brass Coupling
PVC Fitting Female Brass Coupling
PVC Fitting Female Brass Coupling
PVC Fitting Female Brass Coupling
PVC Fitting Female Brass Coupling
PVC Fitting Female Brass Coupling

PVC Fitting Female Brass Coupling

PJS002
1: Rigid PVC is one of the most widely used plastic materials. PVC material is an amorphous material
2: In actual use, PVC materials are often added with stabilizers, lubricants, auxiliary processing agents, pigments, impact agents and other additives.
3: PVC material has non flammability, high strength, weather resistance and excellent geometric stability.
4: PVC has strong resistance to oxidants, reducing agents and strong acids. However, it can be corroded by concentrated oxidizing acids, such as concentrated sulfuric acid and concentrated nitric acid, and is not suitable for contacting aromatic hydrocarbons and chlorinated hydrocarbons.
5: The melting temperature of PVC during processing is a very important process parameter. If this parameter is improper, it will lead to the problem of material decomposition.
6: The flow characteristics of PVC are quite poor, and its process range is very narrow. In particular, PVC materials with large molecular weight are more difficult to process (such materials usually need to add lubricant to improve flow characteristics), so PVC materials with small molecular weight are usually used.
7: Shrinkage of PVC is quite low, generally 0.2~0.6%
PVC PRESSURE FITTINGS JIS STANDARD
ERA Piping Systems, PVC Pipe Fitting, FEMALE BRASS COUPLING, PJS002, BS4346 (BS 1452-3) ,Socket , Kitemark

Scope：

This series of fittings can match the standard BS 1452-3

Specification：

Pipe and fittings shall be manufactured from virgid

PVC(polyvinyl chloride) vinyl compounds.

Proven physiological harmlessness

Universal use

Very good chemical and corrosion resistance

Referenced Standards：BS 1452-3

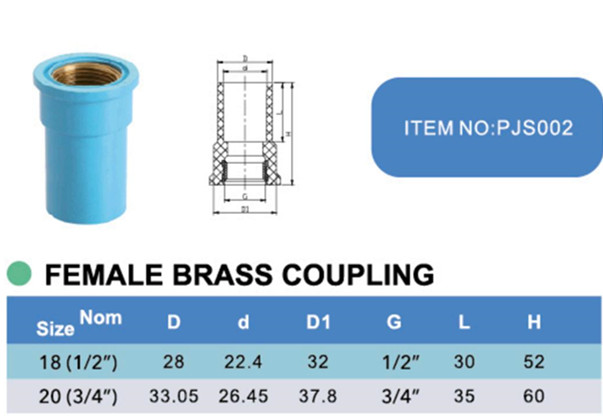

Specification：
Model NumberPJS002MaterialPVC
DescriptionPVC FEMALE BRAS TEESize18、20(1/2''、3/4'')MM
StandardBS 1452-3ColorBLACK,GREY
BrandERATemperatureMax 60°C / 140°F
ConnectionANSI Socket or BS ThreadCertificateKITEMARK

Main Products：
PVC can be divided into soft PVC and hard PVC. Hard PVC accounts for about 2/3 of the market, soft PVC accounts for 1/3. Soft PVC is generally used for floor, ceiling and leather surface, but because soft PVC contains plasticizer (this is also the difference between soft PVC and hard PVC), the physical performance is poor (as the water pipe needs to bear a certain pressure, soft PVC is not suitable for use), so its use scope is limited. Hard PVC does not contain plasticizer, so it is easy to form, good physical properties, so it has great development and application value. In the production process of PVC materials, several additives are bound to be added, such as stabilizer, plasticizer and so on. If all environmental protection additives are used, the PVC pipe is also non-toxic and tasteless environmental protection products.

Some of the most important properties of PVC are：
• Density. PVC is dense compared to other plastics.
• low cost. PVC is readily available and inexpensive.
• Rigidity. Rigid PVC ranks among the best in terms of stiffness and durability.
• strength. Rigid PVC has excellent tensile strength, which means it takes a lot of force to stretch and break.

FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
