US6003

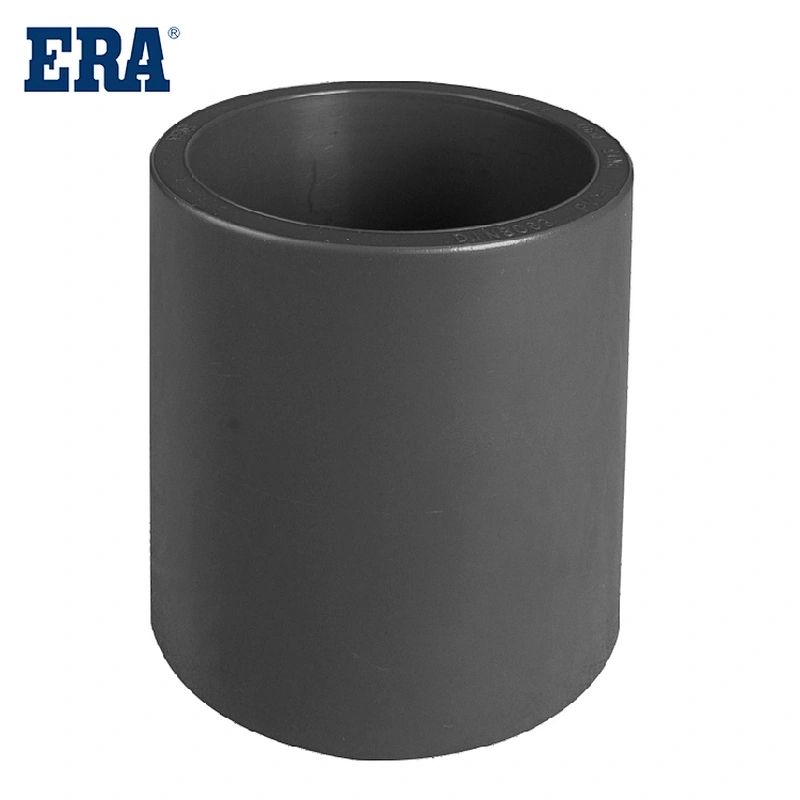

ERA Piping Systems, PVC Pipe Fitting , COUPLING, PN16(DIN8063) Socket, DVGW Scope: Water mains and services buried in the ground. The piping network has high tensile strength, not easy to break and safe in work. Specification: This part of ISO 1452 covers a range of fitting sizes.
Some of the most important properties of PVC are:
• Density. PVC is dense compared to other plastics.
• low cost. PVC is readily available and inexpensive.
• Rigidity. Rigid PVC ranks among the best in terms of stiffness and durability.
• strength. Rigid PVC has excellent tensile strength, which means it takes a lot of force to stretch and break.

ERA Piping Systems, PVC pipe fittings coupling ,COUPLING, PN16(DIN8063) Socket, DVGW

Scope：

Water mains and services buried in the ground.

The piping network has high tensile strength, not easy to break and safe in work.

Specification：

This part of ISO 1452 covers a range of fitting sizes and pressure classes and gives requirements concerning colors.

System: EN ISO 1452, specifies the requirements for a piping system and its components intended to be used for water supply and drainage and sewerage under pressure made from PVC-U.

Plastic piping systems used for the supply of water under pressure up to and including 25 °C, used for human consumption and for general purposes as well as for drainage and sewerage water under pressure.

Specification：

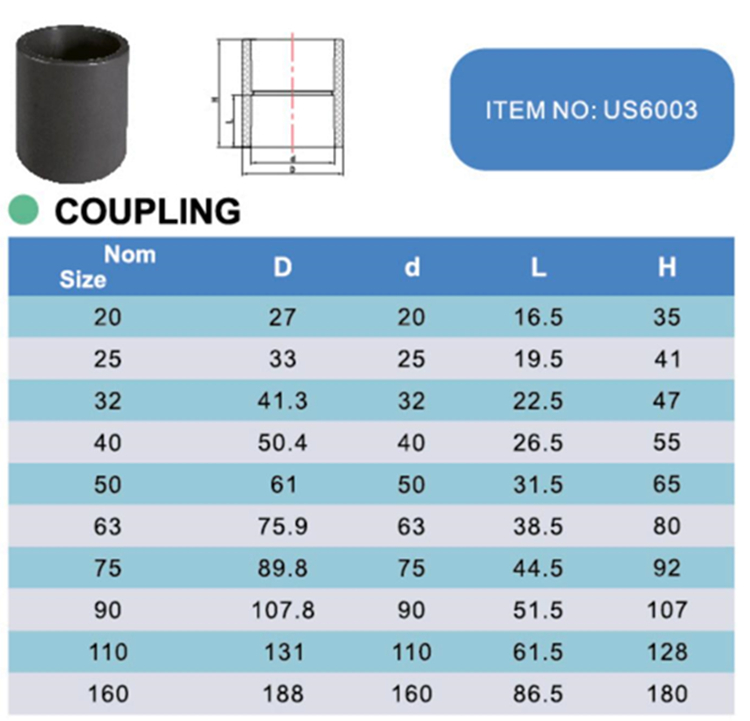

Model NumberUS6003MaterialPVC
DescriptionCOUPLINGSize20-160MM
StandardDIN8063ColorBLUE  GREY   WHITE
Working PressurePN16 ,16Bar, 1.6MpaTemperatureMax 60°C / 140°F
ConnectionSocketCertificateCE  DVGW

Features：

Light in weight, simple in connection and installation.

Strong in acid and rust resistance, longer service life.

ADVANTAGES：

Water supply in Building.

Governmental projects.

Main Products：


Actively organize industry enterprises to benchmark against international advanced standards, and participate in the formulation, revision, publicity and implementation of national and industrial standards. During the tenure of the first group standardization technical committee, a total of 53 standard projects were completed and 20 were announced and implemented. The standard scope covers product standards, method standards, production standards, emission standards, etc., solving the production and operation problems that urgently need to be solved in the industry. , played a leading role in innovation of group standards, promoted the improvement of quality and efficiency of my country's plastics industry, and accelerated the promotion of Chinese brands to the world.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
Related Products
PVC UPVC PN16 DIN8063 STANDARD HIGH PRESSURE PIPES FOR WATER SUPPLY WITH DVGW

PVC UPVC PN16 DIN8063 STANDARD HIGH PRESSURE PIPES FOR WATER SUPPLY WITH DVGW

ERA Piping Systems, PVC Pipe Fitting PIPES, PN16(DIN8063) Socket, DVGW Company Profile EN ISO 1452 Plastics piping systems is applicable to fittings in piping systems intended for the supply of water under pressure up to and including 25 °C (cold water), intended for human consumption and for...
PVC Fitting 45° Elbow Pn16

PVC Fitting 45° Elbow Pn16

ERA Piping Systems, PVC Pipe Fitting ,45°Elbow, PN16(DIN8063) Socket, DVGW System: EN ISO 1452 Plastics piping systems is applicable to fittings in piping systems intended for the supply of water under pressure up to and including 25 °C (cold water), intended for human consumption. HDPE has good heat resistance and cold resistance, good chemical stability, high rigidity and toughness, and good mechanical strength. The dielectric properties and environmental stress cracking resistance are also good.
PVC Fitting Reducing Elbow Pn16

PVC Fitting Reducing Elbow Pn16

ERA Piping Systems, PVC Pipe Fitting , REDUCING ELBOW, PN16(DIN8063) Socket, DVGW Specification: Pipe and fittings are applicable to components for the conveyance of water and waste water up to and including 45 °C. This part of ISO 1452 is applicable to the following types of fittings: -...
PVC Fitting 90° Elbow Pn16

PVC Fitting 90° Elbow Pn16

ERA Piping Systems, PVC Pipe Fitting ,90°Elbow, PN16(DIN8063) Socket, DVGW System: Plastic piping systems used for the supply of water under pressure up to and including 25 °C, used for human consumption and for general purposes as well as for drainage and sewerage water under pressure. Some of the most important properties of PVC are: • Density. PVC is dense compared to other plastics. • low cost. PVC is readily available and inexpensive. • Rigidity. Rigid PVC ranks among the best in terms of stiffness and durability. • strength. Rigid PVC has excellent tensile strength, which means it takes a lot of force to stretch and break.
PVC Fitting Female Adaptor M/f Pn16

PVC Fitting Female Adaptor M/f Pn16

ERA Piping Systems, PVC Pipe Fitting , FEMALE ADAPTOR MF, PN16(DIN8063) Thread, DVGW System: EN ISO 1452 Plastics piping systems is applicable to fittings in piping systems intended for the supply of water under pressure up to and including 25 °C (cold water). How is PVC used in construction? PVC is used in pipes, flooring, siding and windows. Pipes are usually leak-free because the plastic does not break or crack easily. Since it is not easy to corrode, it can be used indoors and outdoors. Flexible PVC is used to make flooring such as vinyl tile and plank flooring, as well as wall coverings and wire and cable insulation. It is used in many industries such as healthcare and education because it is waterproof and easy to walk on. Window frames and siding are also made from uPVC, helping consumers save energy. For example, vinyl window frames have three times the insulating properties of aluminum windows.
PVC Fitting Tee Pn16

PVC Fitting Tee Pn16

ERA Piping Systems, PVC Pipe Fitting , STRAIGHT TEE, PN16(DIN8063) Socket, DVGW Research Institute 1. CNAS ISO 17025 ACCREDITED LAB, be able to issue test report on Chinese standard with CANAS. 2. IAPMO RESEARCH AND TEST ,INC. ACCREDITED LAB , accredited to issue test reports on Standards Advantages of using PVC PVC is both durable and versatile, offering many advantages when it comes to plumbing. 1. Sturdy and durable. Compared to cast iron pipes, recyclable PVC pipes are less likely to crack or break. It can also last at least 50 years. 2. Economical and affordable. Compared to materials like wood or copper, PVC is cost-effective, giving you the best value for your money. 3. Light. PVC materials are lighter than other building materials, so shipping costs are lower. 4. Fireproof. PVC plastic's high chlorine and low oxygen content make it fire-resistant. 5. Resistant to chemical corrosion. PVC rarely reacts when in contact with other substances such as oils, mineral acids, fats, salts, alkalis, and alcohols. 6. Versatile. PVC can be molded into a variety of shapes and forms and can also be integrated into fabrics for increased durability.
PVC Fitting Female Elbow Pn16

PVC Fitting Female Elbow Pn16

ERA Piping Systems, PVC Pipe Fitting ,Female Elbow, PN16(DIN8063) Thread, DVGW Scope: This series of fittings specifies the characteristics of fittings made from PVC-U for piping systems intended for water supply and for buried and above-ground drainage and sewerage under pressure. PVC form PVC comes in two forms: rigid PVC or RPVC, and unplasticized PVC or uPVC. Rigid versions are used for pipes, wiring insulation, clothing, etc. Although it is not flexible, it is strong and durable. It is one of the most commonly used pipe materials in the United States. CPVC is a type of water pipe that is made by adding chlorine to RPVC. CPVC is fire resistant and is commonly used in sprinkler systems and drinking water pipes. uPVC, or unplasticized PVC, is used for window frames and siding. It is rigid and often used to replace wood in construction applications. uPVC is also used for pipes and remains most popular outside the United States. It can be used in place of cast iron for heavy duty plumbing pipes.

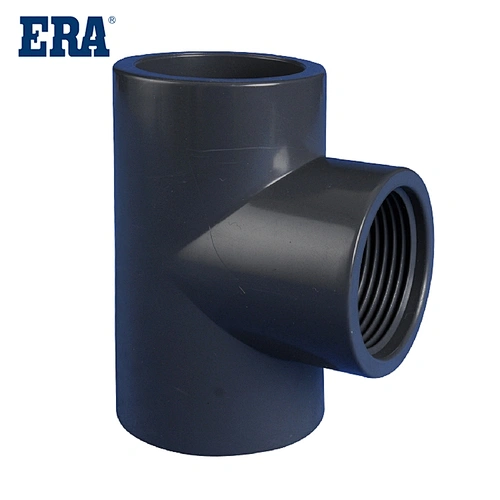

PVC Fitting Female Tee Pn16
