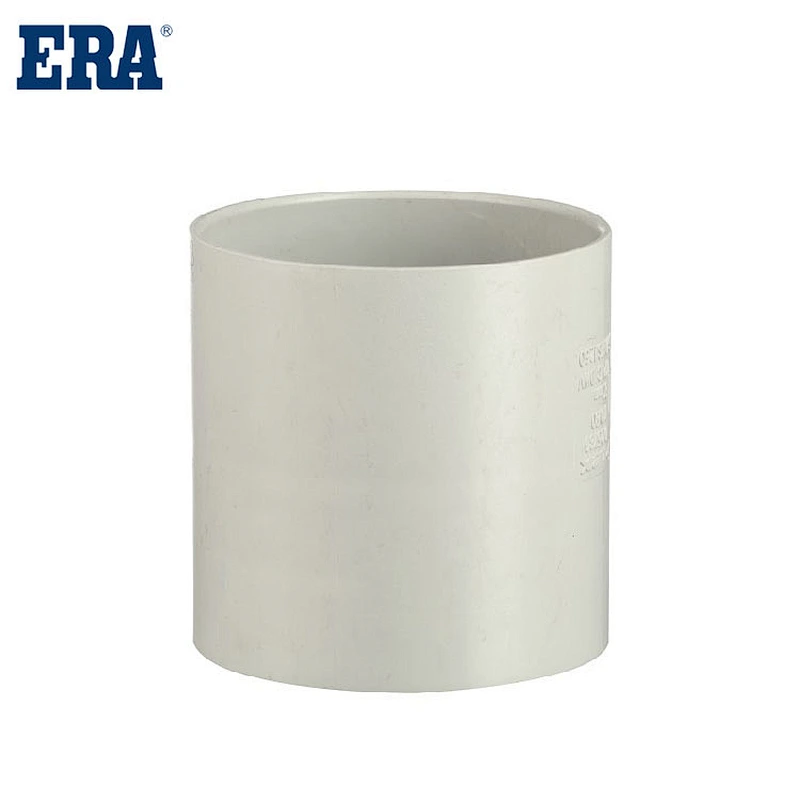

PVC COUPLING F/F
PVC COUPLING F/F
PVC COUPLING F/F
PVC COUPLING F/F
PVC COUPLING F/F
PVC COUPLING F/F
PVC COUPLING F/F
PVC COUPLING F/F
PVC COUPLING F/F
PVC COUPLING F/F
PVC COUPLING F/F

PVC COUPLING F/F

AUDC02
The surface hardness and tensile strength of pvc drainage pipes are excellent, and the pipeline safety factor is extremely high.The linear expansion coefficient of pvc drainage pipe is small, 0. 07mm/℃, small deformation due to temperature. Small thermal conductivity and elastic modulus, excellent frost resistance.PVC rainwater pipes have excellent toughness, and the surface hardness and tensile strength of pipe fittings are excellent. PVC drainage pipe can be connected by bonding method, which is simple in construction, convenient in operation and installation.PVC drainage pipe has good aging resistance, and its normal service life can reach more than 50 years.Pvc drainage pipe has excellent corrosion resistance to inorganic acid, alkali, salt and other substances, so it is more suitable for industrial sewage discharge and transmission.

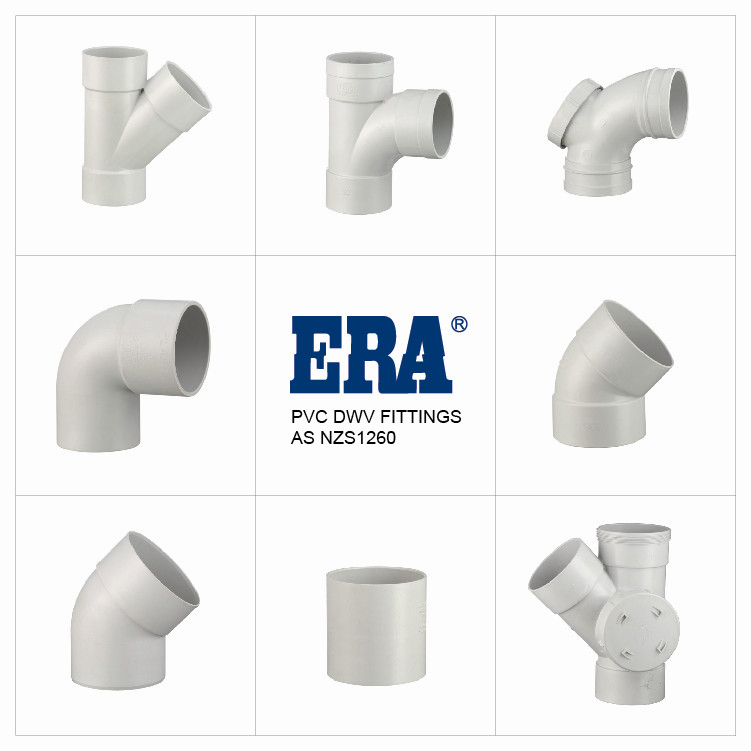

PVC DWV FITTINGS AS/NZS1260
ERA Piping Systems, PVC DWV FITTINGS ,COUPLING F/F,AUDC02, AS/NZS1260 , Watermark

ERA PIPING (ZHEJIANG) CO., LTD. a listed company, is the leading manufacturer in China specialized in PVC, PVC, CPVC, PE, PP piping systems
With an annual production capacity of 600,000 tons, ERA Co., ltd has more than 4000 employees in 12 factories covering 1332000 square meters in China.
Equipped with 900 injection machines, 300 extrusion machines and 12000 moulds, ERA reached a sales turnover of USD900,000,000 in 2019, including export sales covering 146 countries all over the world.

Referenced Standards： AS/NZS1260

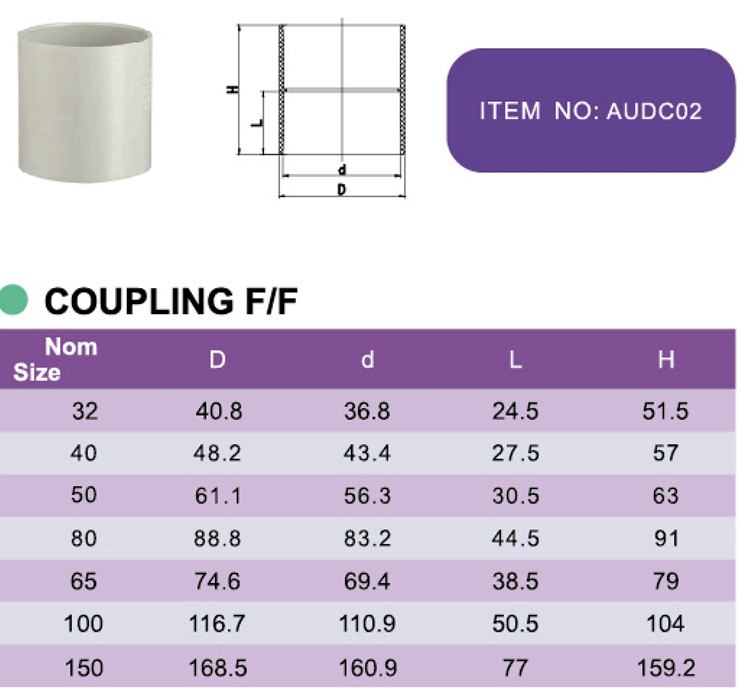

Specification：
Model NumberAUDC02MaterialPVC
DescriptionCOUPLING F/FSize32-150MM
StandardAS/NZS1260ColorWhite
BrandERATemperature
ConnectionSocket CertificateWatermark

Main Products：
Advantages of pvc drain pipe

1, pvc drainage pipe has good tensile and compressive strength, but the flexibility is not as good as other plastics.

2. The wall of pvc drainage pipe is very smooth, so the resistance of water flow is very small. Its water transmission capacity is 20% higher than that of cast iron pipe of the same diameter, and the water transmission effect is very good.

3, and pvc drainage pipe corrosion resistance and drug resistance is also very good, has good acid resistance, alkali resistance characteristics, is not affected by moisture and soil pH, service life is very long.

4. pvc drainage pipe also has good water tightness. This pipe can maintain good water tightness whether it is connected by adhesive or rubber ring.

5, pvc drainage pipe has good tensile and thermal stability, can adapt to different environmental use, a wide range of use.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
