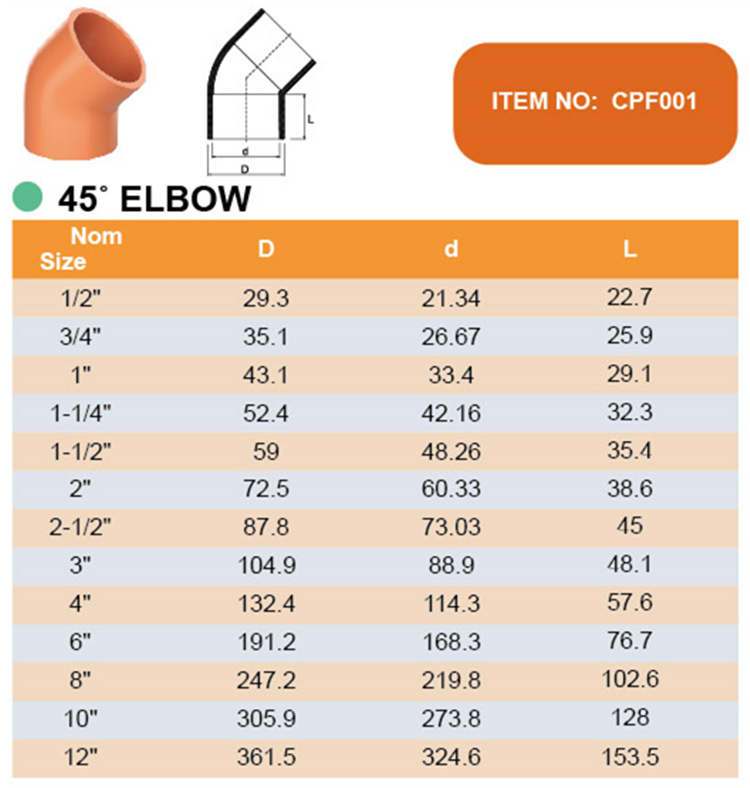

CPF001
CPVC installation generates minimal pollution and low noise, which can minimize interference to residents.
CPVC pipes can be used for a long time at temperatures close to 100°C, and are also flame retardant and self-extinguishing. CPVC fire piping system has become a long-term choice in the field of fire protection in developed countries such as the United States, and has also been vigorously promoted in our country. This is mainly due to the pressure-bearing capacity and excellent flame retardant and smoke suppression properties of chlorinated polyvinyl chloride (CPVC) materials.

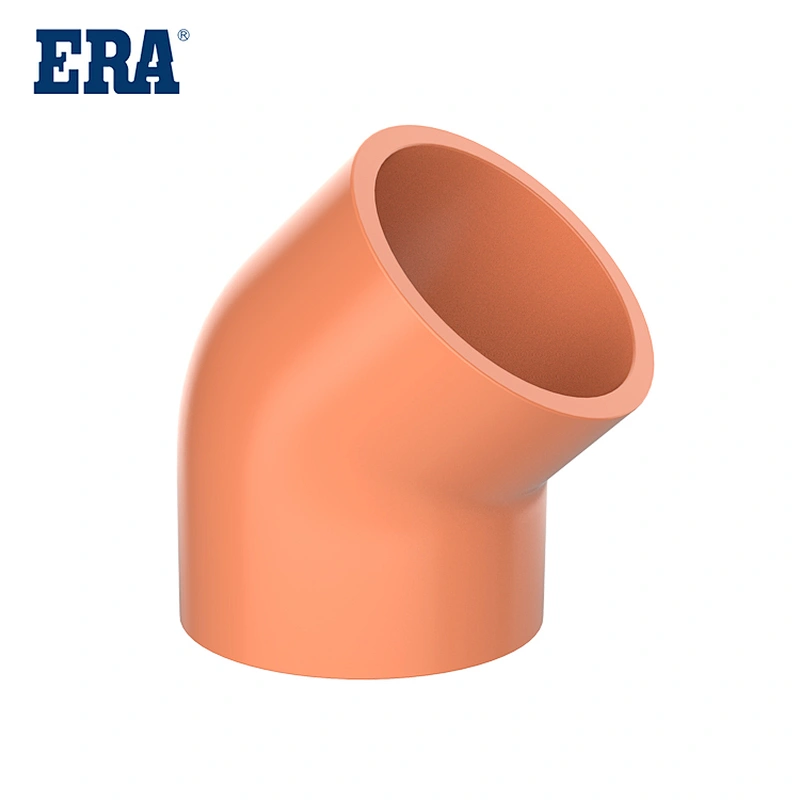

CPVC 45 degree Elbow
Low maintenance costs
By choosing CPVC, the fire installation company saves owners not only $21000 in installation costs, as CPVC will not corrode over time. If galvanized steel pipes are used, corrosion will corrode the interior of the pipeline, causing needle hole leakage.
Once corrosion occurs in the galvanized steel pipe system, it needs to be continuously repaired until it cannot be repaired and must be replaced.
Galvanized steel pipes are also prone to scaling due to minerals dissolved and detached from water adhering to the pipe wall (usually near fittings and corners). As the scale increases, the water flow will be limited or even completely blocked.
In contrast, CPVC pipes can provide lifelong corrosion protection and prevent scaling of the system even in sea breeze/salt mist environments or when the pH value of water fluctuates. Moreover, CPVC itself is not subject to microbial corrosion (MIC). The CPVC design has a lifespan of up to 50 years.

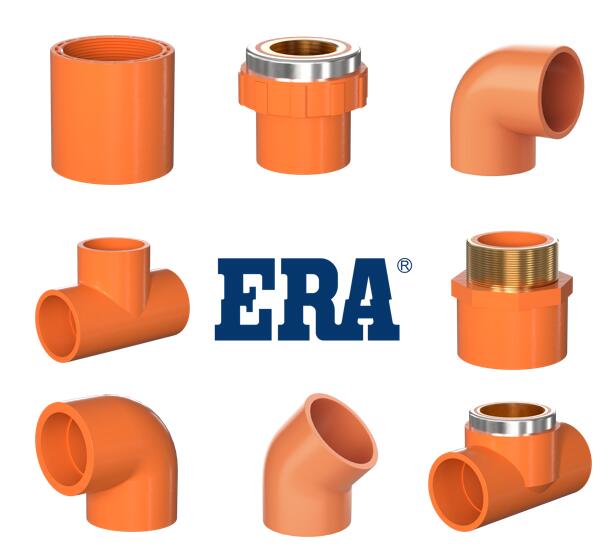

Main Products：
PVC-C fire pipes
1. PVC-C fire pipes have super fire resistance
(1) Ignition resistance fire test results indicate that CPVC sprinkler systems installed without fire barriers in light duty areas will provide adequate protection when the sprinkler system is installed in accordance with all relevant standards.
(2) The flame retardancy of flame retardant materials is measured by the limiting oxygen index (LOI), which is the percentage of oxygen in the surrounding atmosphere required to maintain flame combustion. PVC-C fire pipe has an LOI of 60% and is flame retardant in the atmosphere.
2. Excellent hydraulic performance: The Hazen-Williams coefficient of PVC-C pipeline is 150 maximum, that is, the resistance loss along the pipeline of PVC-C pipeline is minimal, and the energy consumption of the medium flowing in the fire pipeline is low.
3. Anti-microbial corrosion (MIC) PVC-C has its unique antibacterial effect. Not only cannot it provide the nutrients needed by bacteria, it can also effectively inhibit the reproduction rate of bacteria in the fluid (such as Legionella pneumophila). In addition, PVC-C The inner wall of the C pipe is very smooth, which greatly reduces the accumulation of microorganisms in the water and the opportunities for fungi and algae to attach and breed. Microbial erosion (MIC) basically does not occur. Tests have confirmed that the bacterial growth rate in PVC-C pipes is 1/60 of that of PEX pipes, 1/10 of that of copper pipes, and 1/4 of that of steel pipes.
4. The installation process is fast and reliable. For traditional galvanized steel fire-fighting pipes, special attention needs to be paid to welding issues during the installation process, and there will be uneven pressure and blistering during the welding process at the weld joints of galvanized steel pipes. Defect issues. The required construction requirements and acceptance requirements are also higher. As a type of plastic pipe, PVC-C pipes are connected using special glue. Compared with galvanized steel pipes, the construction efficiency is higher and the acceptance inspection is easier to pass. During use, the above-mentioned problems caused by welding defects of galvanized fire pipes are also effectively avoided.
5. Strong pressure-bearing performance and long service life. The working pressure of PVC-C pipes and fittings for fire protection changes with the change of the ambient temperature. When the ambient temperature is 23°C, the maximum working pressure of PVC-C pipes is 2.68MPa. When the ambient temperature is 68°C, the maximum working pressure of PVC-C pipes is 1.21MPa and the service life is 50 years. That is, the service life of PVC-C pipes in automatic sprinkler  systems is guaranteed. Among domestic PVC-C fire protection pipe manufacturers, Beijing Rongzhen Fire Protection New Materials Company and Shandong Xiangsheng Technology are the two relatively better PVC-C fire protection pipe manufacturers. Among them, Xiangsheng Technology participated in the drafting of GB 50084-2017 Automatic sprinkler system design specifications and GB 50261-2017 Automatic sprinkler system construction and acceptance specifications, and passed the voluntary certification of fire protection products.
In addition, due to the influence of national policies on steel production, rising costs of steel pipes, and shortcomings in the application of fire protection pipes, PVC-C fire protection pipes and fittings will quickly occupy the market in the future. For example, in building renovation projects such as hotels, high-rise apartments, hospitals, schools, office buildings, sports venues, etc., PVC-C pipes and pipe fittings are used for renovation.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
