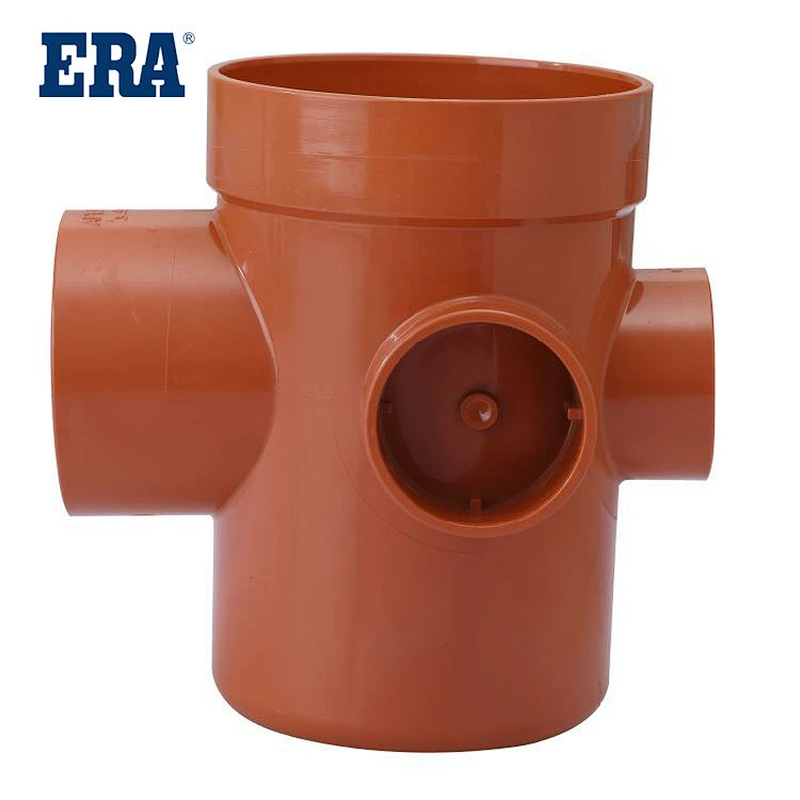

UDD029-1
The surface hardness and tensile strength of the pipe are excellent, and the safety factor of the pipe is high. Good aging resistance, normal service life can reach more than 50 years. The pipeline has excellent corrosion resistance to inorganic acid, alkali and salt, and is suitable for industrial sewage discharge and transmission. The friction coefficient of the pipeline is small, the water flow is smooth, it is not easy to block, and the maintenance workload is small. The material has high oxygen index and self extinguishing property. The linear expansion coefficient of the pipeline is small, 0.07mm/℃, and the deformation affected by temperature is small. The thermal conductivity and elastic modulus are small, and the frost resistance is better than that of cast iron drain pipes. The pipes and pipe fittings can be connected by bonding. The construction method is simple, the operation is convenient, and the installation efficiency is high.
 PVC PIPES AND FITTINGS FOR DRAINAGE
PVC PIPE SYSTEM DRAINAGE PIPES DIN STANDARD BS1329 BS1401,  FLOOR DRAIN III , UDD029-1

System：PVC pipe system
Scope：Drainage pipe system can be used for road drains, agricultural, railway, airport, construction and public green. PVC has the smoothest flow surface of any piping material.The pipe will not be susceptible to blockages and will maintain a high flow capacity over the life of the pipeline.
Specification:  A plastic sewer system costs less to operate and maintain because it has greater flow capacity per given size and fewer joints. The economic life cycle of a PVC sewer system is projected at more than 50 years.
Referenced Standards：BS1329/BS1401
Size：50mm – 250mm
Certificate：Kitemark
Specification:

Model NumberUDD029-1MaterialPVC

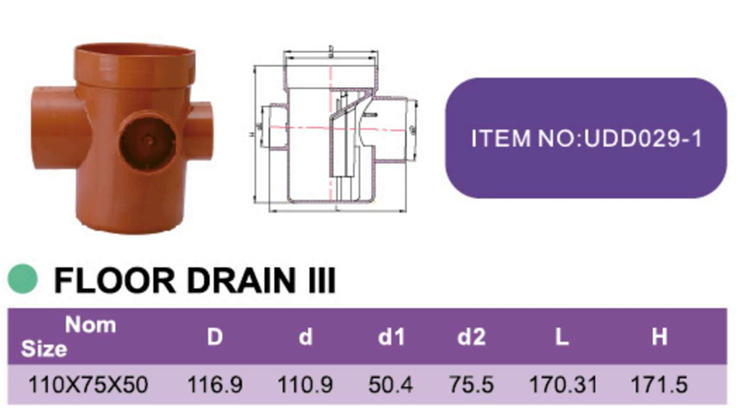

Description            FLOOR DRAIN IIISize                  110x75x50MM
StandardBS1329、BS1401ColorWHITE、GREY
BrandERATemperature0-40
Connectionglue weldingCertificate    /

Main Products：
Main features:
1. Light weight, easy to transport and load: low density, convenient to transport, load and unload, and construction.
2. Excellent corrosion resistance: It has excellent acid resistance, alkali resistance and corrosion resistance, and is very suitable for use in the chemical industry.
3. Small fluid resistance: The inner wall of the pipe is smooth, and its roughness coefficient is only 0.009. The fluid resistance is small, which effectively improves the hydraulic conditions of the pipe network and reduces system operating costs.
4. High mechanical strength: The pipe has good pressure resistance, impact resistance and tensile strength properties.
5. Simple construction: Pipeline connection construction is quick and easy, and the construction project cost is low.
6. Low cost: low price, convenient transportation and construction, and long service life, so the overall cost is low.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
