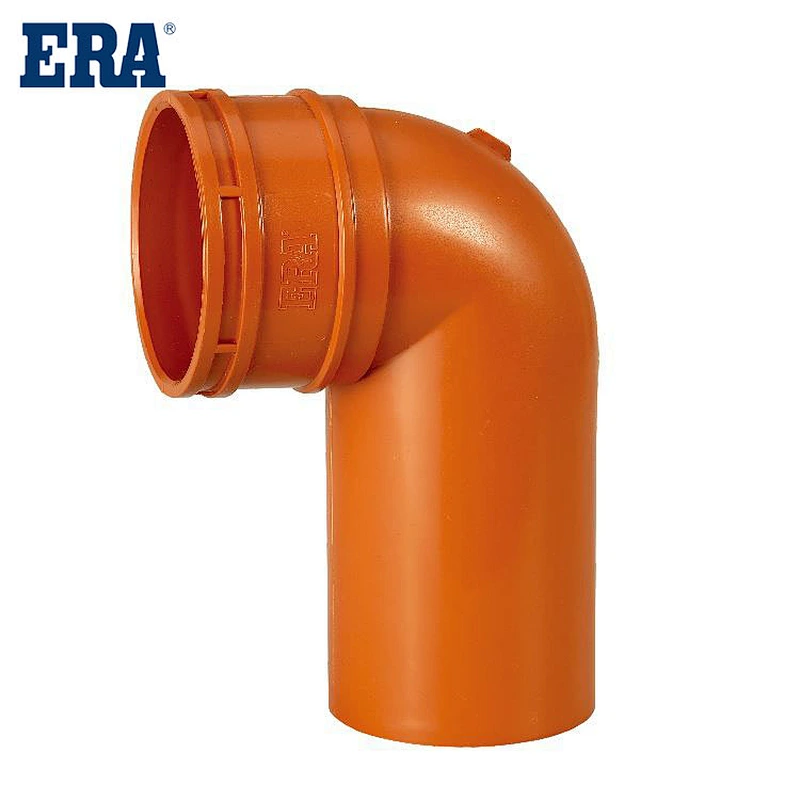

PVC LONG BEND 90° ELBOW
PVC LONG BEND 90° ELBOW
PVC LONG BEND 90° ELBOW
PVC LONG BEND 90° ELBOW
PVC LONG BEND 90° ELBOW
PVC LONG BEND 90° ELBOW
PVC LONG BEND 90° ELBOW
PVC LONG BEND 90° ELBOW
PVC LONG BEND 90° ELBOW
PVC LONG BEND 90° ELBOW
PVC LONG BEND 90° ELBOW

PVC LONG BEND 90° ELBOW

UD026
The surface hardness and tensile strength of the pipe are excellent, and the safety factor of the pipe is high. Good aging resistance, normal service life can reach more than 50 years. The pipeline has excellent corrosion resistance to inorganic acid, alkali and salt, and is suitable for industrial sewage discharge and transmission. The friction coefficient of the pipeline is small, the water flow is smooth, it is not easy to block, and the maintenance workload is small. The material has high oxygen index and self extinguishing property. The linear expansion coefficient of the pipeline is small, 0.07mm/℃, and the deformation affected by temperature is small. The thermal conductivity and elastic modulus are small, and the frost resistance is better than that of cast iron drain pipes. The pipes and pipe fittings can be connected by bonding. The construction method is simple, the operation is convenient, and the installation efficiency is high.
PVC PIPES AND FITTINGS FOR DRAINAGE
PVC PIPE SYSTEM DRAINAGE PIPES DIN STANDARD BS1329 BS1401, LONG BEND 90° ELBOW , UD026

System：PVC pipe system
Scope：
Drainage pipe system can be used for road drains, agricultural, railway, airport, construction and public green. PVC has the smoothest flow surface of any piping material.The pipe will not be susceptible to blockages and will maintain a high flow capacity over the life of the pipeline.
Specification：A plastic sewer system costs less to operate and maintain because it has greater flow capacity per given size and fewer joints. The economic life cycle of a PVC sewer system is projected at more than 50 years.
Referenced Standards：BS1329/BS1401
Size：50mm – 250mm
Certificate：Kitemark

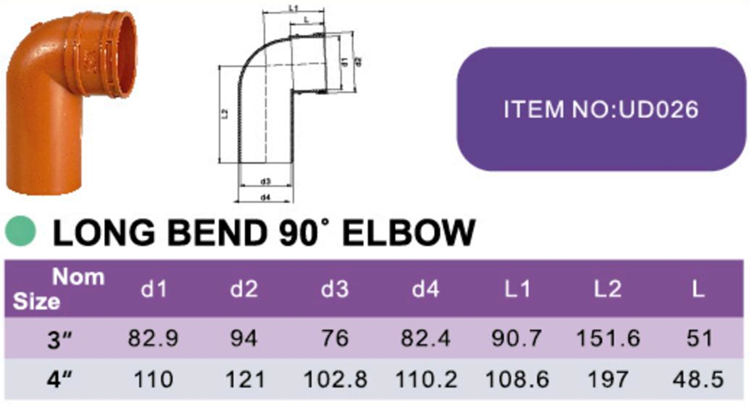

Specification：

Model NumberUD026MaterialPVC
Description       LONG BEND 90° ELBOWSize                   3''、4''
StandardBS1329、BS1401ColorWHITE、GREY
BrandERATemperature0-40
Connectionglue weldingCertificate    /

Main Products：

PVC drainage pipes have been more and more widely used in various industries. The main material of PVC drainage pipes is polyvinyl chloride. PVC has strong heat resistance and corrosion resistance. This is why PVC drainage pipes have strong heat resistance and corrosion resistance. One reason for its widespread use.
In order to make the facade of the building more beautiful, indoor rainwater drainage systems are more and more widely used. Indoor rainwater pipes are generally designed according to unpressurized flow, but because the rainwater flow is sometimes large and concentrated, at the same time in the pipes There are two states of gravity flow and pressure flow, so indoor rainwater pipes are required to have stronger pressure resistance than other drainage pipes.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
