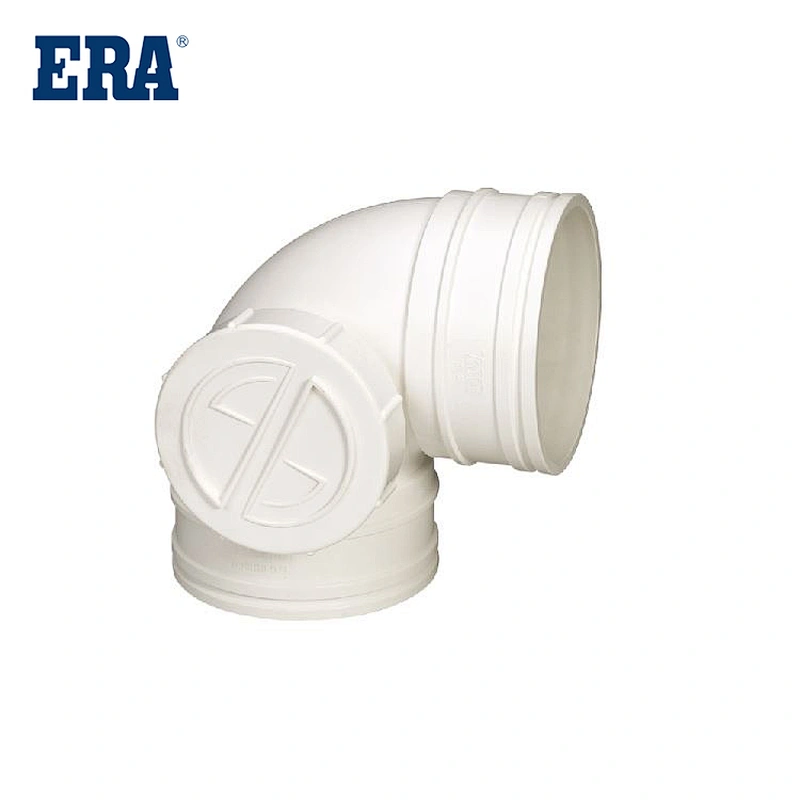

PVC 90° ELBOW WITH SIDE PORT
PVC 90° ELBOW WITH SIDE PORT
PVC 90° ELBOW WITH SIDE PORT
PVC 90° ELBOW WITH SIDE PORT
PVC 90° ELBOW WITH SIDE PORT
PVC 90° ELBOW WITH SIDE PORT
PVC 90° ELBOW WITH SIDE PORT
PVC 90° ELBOW WITH SIDE PORT
PVC 90° ELBOW WITH SIDE PORT
PVC 90° ELBOW WITH SIDE PORT
PVC 90° ELBOW WITH SIDE PORT

PVC 90° ELBOW WITH SIDE PORT

UDE004
The surface hardness and tensile strength of the pipe are excellent, and the safety factor of the pipe is high. Good aging resistance, normal service life can reach more than 50 years. The pipeline has excellent corrosion resistance to inorganic acid, alkali and salt, and is suitable for industrial sewage discharge and transmission. The friction coefficient of the pipeline is small, the water flow is smooth, it is not easy to block, and the maintenance workload is small. The material has high oxygen index and self extinguishing property. The linear expansion coefficient of the pipeline is small, 0.07mm/℃, and the deformation affected by temperature is small. The thermal conductivity and elastic modulus are small, and the frost resistance is better than that of cast iron drain pipes. The pipes and pipe fittings can be connected by bonding. The construction method is simple, the operation is convenient, and the installation efficiency is high.
PVC PIPES AND FITTINGS FOR DRAINAGE
PVC PIPE SYSTEM DRAINAGE PIPES DIN STANDARD BS1329 BS1401, 90° ELBOW WITH SIDE PORT , UDE004

System：PVC pipe system
Scope：
Drainage pipe system can be used for road drains, agricultural, railway, airport, construction and public green. PVC has the smoothest flow surface of any piping material.The pipe will not be susceptible to blockages and will maintain a high flow capacity over the life of the pipeline.
Specification：A plastic sewer system costs less to operate and maintain because it has greater flow capacity per given size and fewer joints. The economic life cycle of a PVC sewer system is projected at more than 50 years.
Referenced Standards：BS1329/BS1401
Size：50mm – 250mm
Certificate：Kitemark

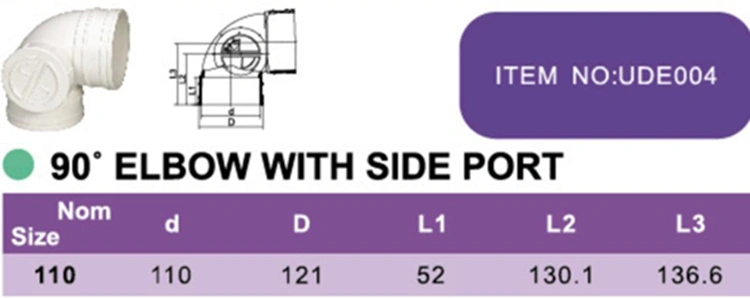

Specification：

Model NumberUDE004MaterialPVC
Description             90° ELBOW WITH SIDE PORTSize                       110MM
StandardBS1329、BS1401ColorWHITE、GREY
BrandERATemperature0-40
Connectionglue weldingCertificate    /

Main Products：
Advantages of PVC drain pipes：
1. The pipe is light and easy to construct.
The specific gravity of PVC drainage pipes is about 1.4t/m3, which is only l/5 of cast iron pipes. Plastic pipes of the same length are much lighter than cast iron pipes. They only need to be transported manually during installation, and PVC drainage pipes are made of bearings. At the same time, the plug-in melt-adhesive interface has a standard length (6m and 4m) longer than that of cast iron pipes, which reduces the number of interfaces and the installation process.

2. Good drainage performance
The diameter of PVC drainage pipes can be smaller than that of cast iron pipes, or the same pipe diameter can use a smaller slope within the scope of the specification. This can increase the clear height of the space, which is more beneficial to users and enhances the quality of the building. Use function.

3: Economical and beautiful
The outer wall of PVC drainage pipes is usually white, and it is not used for anti-corrosion treatment such as painting with red lead or silver powder. There are no problems such as rust and peeling off of the outer wall of cast iron pipes. When installed concealed in the tube well, it does not require regular maintenance and care, while exposed installation is better than cast iron. The advantages of the tube are more significant: easy to clean, less obstruction to the visual effect, greatly improving people's living and working environment, and also facilitating the property management of the building.

4. Good social benefits
PVC drainage pipes can replace other steel drainage pipes on a large scale and greatly reduce energy consumption in the steelmaking process.

5. Superior physical and chemical properties
PVC drainage pipes have stable chemical properties and unique mechanical and physical properties that enable them to be used normally for up to 50 years. At the same time, their corrosion resistance, anti-aging, and wear resistance also make them more stable for long-term use than drainage cast iron pipes and cement pipes. .

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
