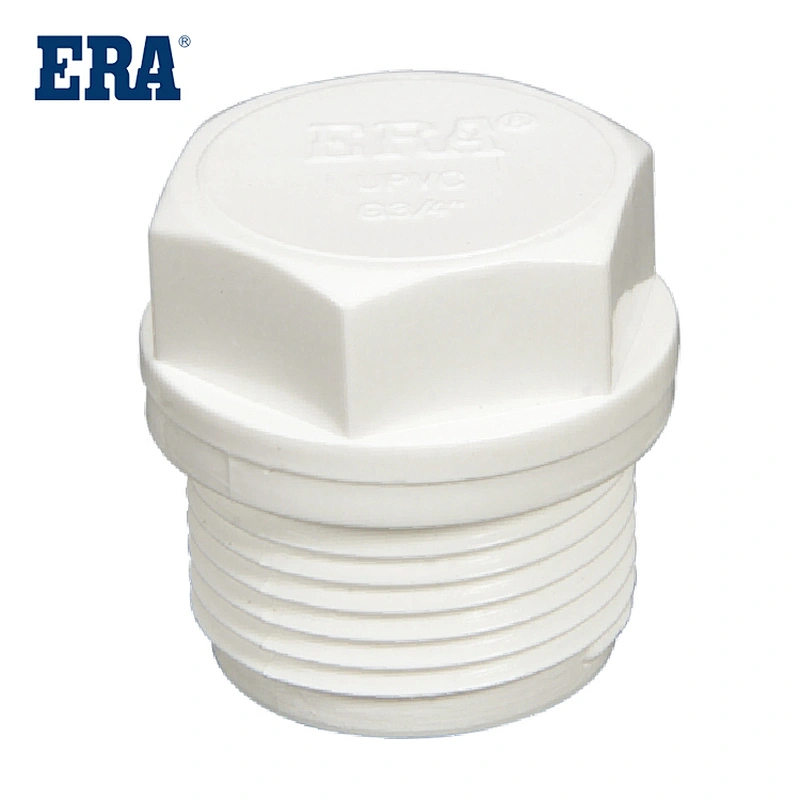

Thread Plug

Model NO.: US010

ERA NSF PVC SCH40 Pipe Fitting Male Thread Plug For America market
1. PVC water pipes have certain advantages in drainage. As long as the diameter of the pipe used is within the specified range and has a smaller slope, the clear height of its use space can be increased, and its use function can also be greatly improved.
2. PVC water pipes have good drainage performance. It is also very economical and beautiful in appearance. Its outer wall is white and does not need to be painted separately, and there will be no problems such as rust or peeling of the outer wall. In addition, this kind of pipe is very easy to clean, and it will have fewer visual obstacles, which not only greatly improves work change, but also facilitates property management.
3. PVC pipes have good social effects. In daily life, it can not only replace other steel drainage pipes, but also effectively reduce the energy consumed in the steelmaking process during use.
4. PVC water pipes have great advantages in physical and chemical properties. It is made of unique mechanical and physical properties. The service life of this kind of pipe can be as long as 50 years, and it also has various properties such as anti-corrosion, anti-aging and wear resistance.

Product Description

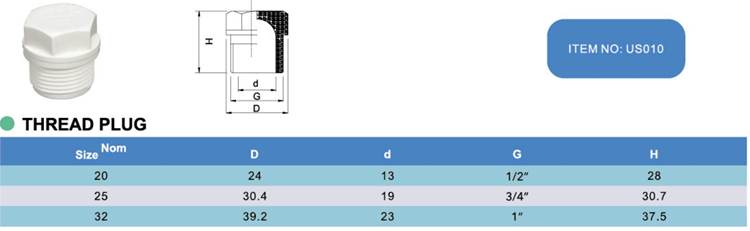

ERA Piping Systems, PVC Pressure Pipe, Thread Plug , US010 , PN10 (ISO1452), CE

Model Number	US010	Material	PVC
Description	THREAD PLUG	Size	20-32MM
Standard	ISO1452	Color	WHITE BLACK GREY
Brand	ERA	Temperature	Max 60°C / 140°F
Connection	Socket	Certificate	DVGW

PVCPN10 (ISO1452) Pressure Pipe and Fitting SystemPVC fittings Solvent cement Manifold fittings
PVC-U MM sized fittings are available in sizes from 10mm to 500mm and in a choice of pressure ratings from 6 Bar to 16 bar. Manufactured in accordance with EN1452/2 and DIN 8063 all fittings are WRAS approved for use with potable water.
PVC-U fittings are manufactured in accordance with EN1452-3 and ISO161/1
This series of fittings can match the standard ISO 1452.

Features：
PVC-U has chemical resistance properties which are excellent being resistant to most solutions of salts, acids, alkalis and water soluble solvents. These products are NOT resistant to aromatic or chlorinated hydrocarbons.
Pressure ratings for plastic pipework systems are always quoted at 20 ° C, it is a fundamental principle of such systems that if the temperature is increased then the pressure rating must be reduced. PVC-U systems should never be used for temperatures in excess of 60 ° C. The following chart gives a rough guide as to the temperature/pressure relationship of PVC-U pipework systems.

Main Products：

PVC pipe product performance characteristics
1. Light weight, easy to transport and load and unload: PVC pipes are very light, easy to transport and construct, and can save labor.
2. Excellent chemical resistance: PVC pipe has excellent acid resistance, alkali resistance, and corrosion resistance, and is very suitable for use in the chemical industry.
3. Small fluid resistance: The wall surface of PVC pipe is smooth and has small resistance to fluid. Its roughness coefficient is only 0.009, which is lower than other pipes. Under the same flow rate, the pipe diameter can be reduced.
4. High mechanical strength: PVC pipes have very good water pressure resistance, external pressure resistance, impact resistance, etc., and are suitable for piping projects under various conditions.
5. Good electrical insulation; PVC pipes have excellent electrical insulation and are suitable for wires, cable conduits, and wire piping in buildings.
6. Does not affect water quality: PVC pipes have been proven by dissolution tests to not affect water quality and are currently the best pipe materials for tap water piping.
7. Simple construction; the joint construction of PVC pipes is quick and easy.

FAQ：

1.What is your MOQ?
Our MOQ is usually 5 CTNS.

2.What is your delievery time?
The time of delievery is around 30-45days.

3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.

The molecular weight of PVC produced in industrial production generally ranges from 50000 to 110000, with significant polydispersity. The molecular weight increases with the decrease of polymerization temperature, without a fixed melting point. It begins to soften at 80-85 ℃, becomes viscoelastic at 130 ℃, and becomes viscous at 160-180 ℃; Has good mechanical properties, with a tensile strength of about 60MPa and an impact strength of 5-10kJ/m2; Has excellent dielectric properties.
PVC was once the world's largest general-purpose plastic in production and widely used. It is widely used in building materials, industrial products, daily necessities, floor leather, floor tiles, artificial leather, pipes, wires and cables, packaging films, bottles, foaming materials, sealing materials, fibers, and other fields.
