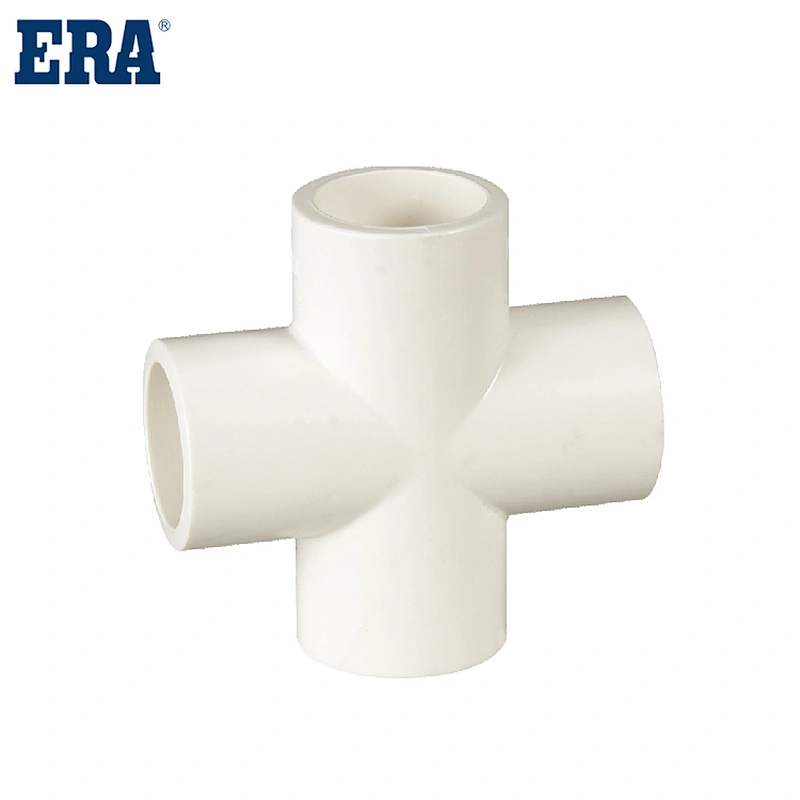

ERA Piping Systems, PVC Pipe Fitting, Cross，TPF019 ，BS STANDARD, CE,pvc double tee,four way tee pipe fitting
Specification：
PVC(polyvinyl chloride) vinyl compounds.
Non-toxic, odorless & tasteless
Pvc fittins have proven superior performance in the industrial-piping, water-treatment, commercial-plumbing, irrigation and pool markets.
Leakage integrity is good for low-pressure, low-temperature installations where vibration is not encountered.
Installation productivity is moderately high, and specialized installation skill requirements are not extensive.
Pipe and fittings shall be manufactured from virgid
PVC(polyvinyl chloride) vinyl compounds.
Non-toxic, odorless & tasteless

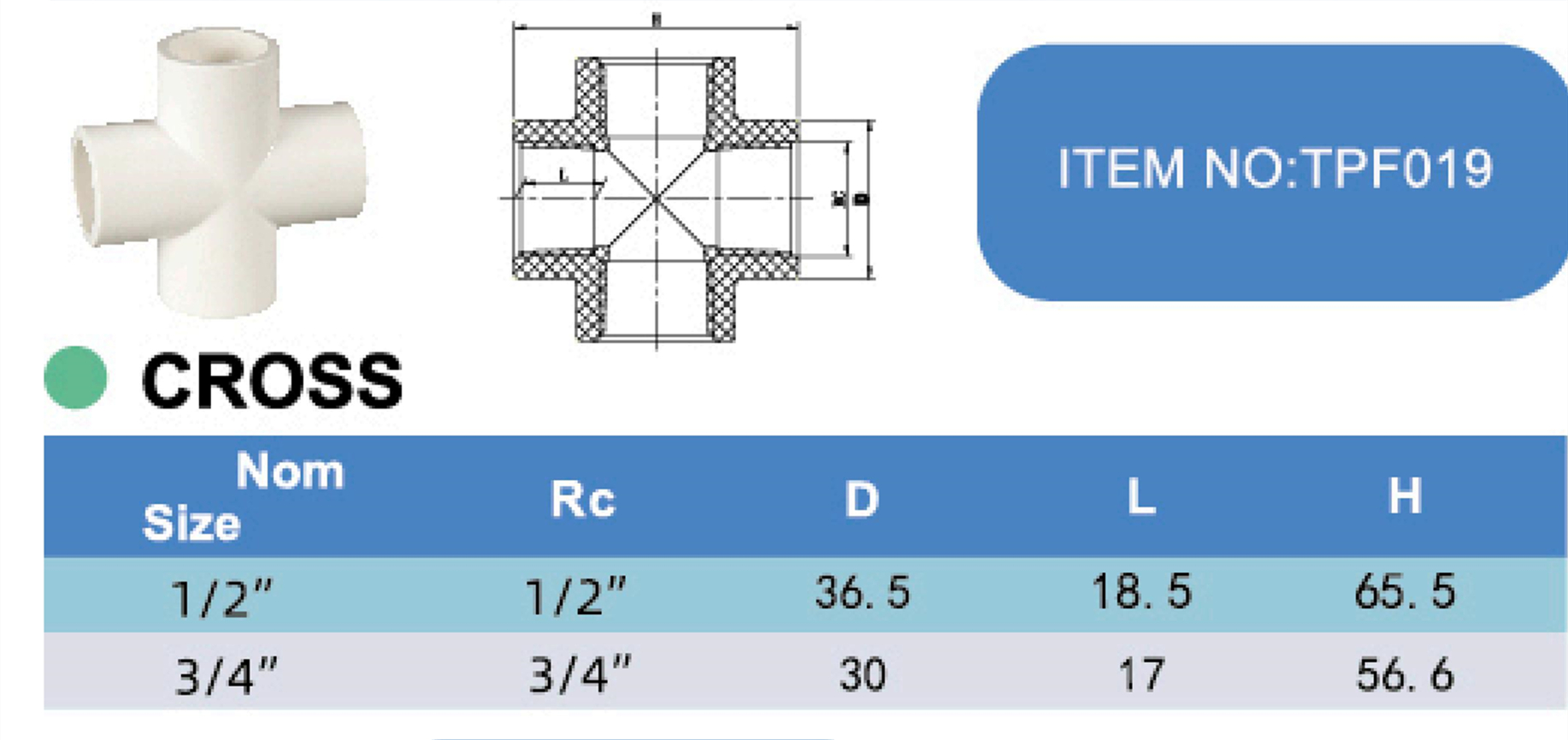

| Model Number | TPF019 | Material | PVC |
| Description | CROSS | Standard | BS EN 10026-2 / BS-21 |
| Temperature | Max 60℃ /140℉ | Working Pressure | PN10 ,10Bar, 1.0Mpa |
| Size | 1/2''-3/4'' | Certificate | CE |
| Connection | Socket or Thread | Color | WHITE BALCK |
Threaded joints probably represent the oldest method of joining piping systems. Like Socket Weld fittings, threaded fittings are mainly used for small pipe diameters (Small Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller.
Main Products：
Broad market prospects
The global development trend of PVC industry chain is rapid, and the market prospect is broad. All countries in the world are interested in the development potential of PVC and its benefits to ecological environment protection. PVC is proving its function and influence to everyone with its excellent and distinctive characteristics. Power is irreplaceable by all other commodities. It is necessary for social and economic development, and it is necessary for ecological and environmental protection. It is the general trend of the development of social civilization.
Due to the fact that disposable medical device products mostly use medical grade polyvinyl chloride (PVC) or polycarbonate (PC), and the thermal decomposition products during the PVC processing have strong corrosiveness to steel, while PC has high hardness and viscosity. Therefore, the material requirements for the plasticized parts must be corrosion-resistant, wear-resistant, and have high polishing performance. Most medical injection molding machines use hard chromium plating on the barrel screws or stainless steel as the material to make the simple screws to meet the above special requirements. In addition, in order to prevent the thermal decomposition of PVC during the processing from generating gases, it is required to perform aluminum plating on the surface of the movable and fixed templates, and to also aluminum plating on the outer panel gold or use stainless steel plates to make sheet metal. The seams of the sheet metal are sealed with non-toxic silicone, To prevent the gas generated during the plastic processing from running out (the gas generated during the plastic processing can be collected and purified by specialized equipment before being discharged into the atmosphere).
Advantages of using PVC
PVC is both durable and versatile, offering many advantages when it comes to plumbing.
1. Sturdy and durable. Compared to cast iron pipes, recyclable PVC pipes are less likely to crack or break. It can also last at least 50 years.
2. Economical and affordable. Compared to materials like wood or copper, PVC is cost-effective, giving you the best value for your money.
3. Light. PVC materials are lighter than other building materials, so shipping costs are lower.
4. Fireproof. PVC plastic's high chlorine and low oxygen content make it fire-resistant.
5. Resistant to chemical corrosion. PVC rarely reacts when in contact with other substances such as oils, mineral acids, fats, salts, alkalis, and alcohols.
6. Versatile. PVC can be molded into a variety of shapes and forms and can also be integrated into fabrics for increased durability.
Disadvantages of using PVC
PVC has some disadvantages to keep in mind.
1. Release toxins. When PVC burns, it releases dioxins and hydrogen chloride, two highly toxic chemicals. Facilities manufacturing with PVC must have specialized ventilation equipment to handle fumes.
2. Not biodegradable. Although it can be recycled, PVC will remain in the trash for a long time because it does not break down.
3. Cannot be used under high temperature or ultraviolet light. PVC breaks down when exposed to heat or UV rays, so it cannot be used outdoors or deliver hot water.
PVC is a versatile material that can be used in a variety of industries. While it may be toxic during the manufacturing process, the final product is completely safe for consumers, as evidenced by drinking water. This affordable building material offers strength and durability, making it an effective alternative to materials like wood.
